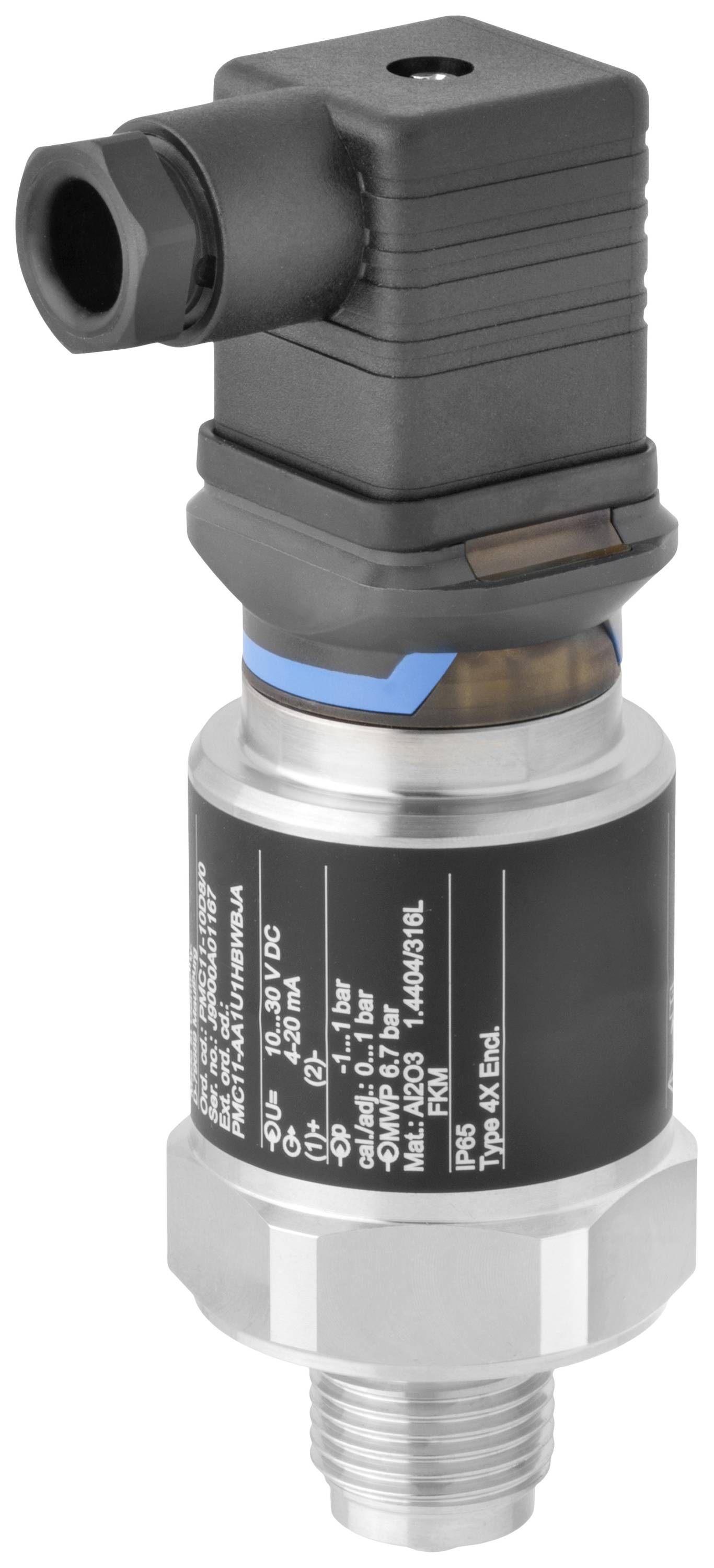

Endress+Hauser PMC11-AA1U1QBWBJA Pressure sensor 1 pc(s) -1 bar up to 16 bar G 1/2" Analogue Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Pressure sensor
Connector
G 1/2"
Model
Relative pressure
Pressure reading range (max.)
16 bar
Number
Total (€ 217.65 / piece)
€ 217.65
plus VAT.
14-day return policy included
Highlights & Details
Relative pressure sensor Cerabar PMC11-AA1U1QBWBJA 4-20 mA square connector ISO4400 M16, IP65 NEMA type 4X ENCL.
- Output type: Analogue output
- ABS/Gauge pressure: Pressure gauge
- Pluggable: M16 square connector
- Output 4-20 mA
- Electrical connection: ISO4400 M16 solenoid connector, IP65 NEMA type 4X Encl.
- Sensor range: 16bar/1.6MPa/240psi pressure gauge, overload: 60bar/6MPa/900psi
- Calibration Unit: Sensor range mbar/bar
- Process connection: Thread ISO228 G1/2 EN837, 316L
Technical specifications
- Packaging type
Single
- Product type
Pressure sensor
- Type
PMC11
- Connector
G 1/2"
- Model
Relative pressure
- Outputs
Analogue
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Interfaces
Current (4 - 20 mA)
- Accuracy
0.5 %
- Pressure reading range (min.)
-1 bar
- Pressure reading range (max.)
16 bar
- Pressure reading range
-1 bar up to 16 bar
- Contact type
Analogue
IP65
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886219 Endress+Hauser PMC11-AA1U1QBWBJA Pressure sensor 1 pc(s) -1 bar up to 16 bar G 1/2" Analogue Single
User & Safety Instructions 2886219 Endress+Hauser PMC11-AA1U1QBWBJA Pressure sensor 1 pc(s) -1 bar up to 16 bar G 1/2" Analogue Single
Description
The Cerabar PMC11 is a very compact pressure transmitter with capacitive, oil-free ceramic sensor that can measure overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust. Designed for standard applications in the process industry, the PMC11 is suitable for these conditions by using high-quality materials such as 316L and 99.9% Al2O3.
This text is machine translated.
This text is machine translated.
Features
- Easy to use
- High performance
- Long-term stability
- High material quality
