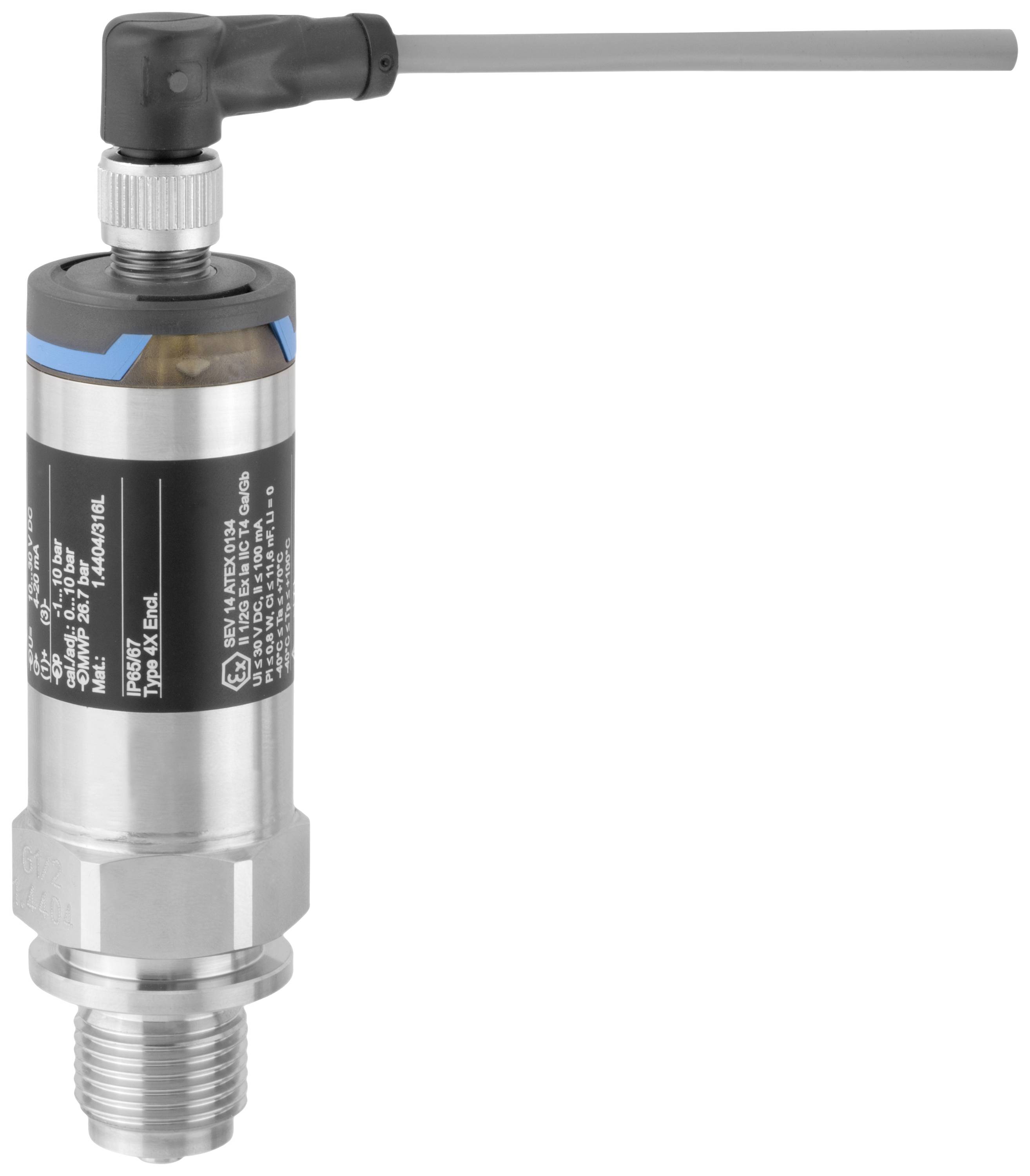

Endress+Hauser PMP21-AA1A1MBWJJ Pressure sensor 1 pc(s) -1 bar up to 4 bar G 1/2" Single
Packaging type
Single
Product type
Pressure sensor
Connector
G 1/2"
Pressure reading range (max.)
4 bar
Type
PMP21
EAN:
Part number:
Item no:
Total (€ 365.00 / piece)
€ 365.00
incl. VAT
14-day return policy included
Highlights & Details
Absolute and relative pressure sensor Cerabar PMP21-AA1A1MBWJJ 4-20 mA cable 5m, IP66/68 NEMA type 4X/6P ENCL.
- Output type: Analogue output
- ABS/Gauge pressure: Pressure gauge
- Output 4-20 mA
- Electrical connection: Cable 5m, IP66/68 NEMA type 4X/6P Encl.
- Sensor range: 4bar/400kPa/60psi meter, overload: 16bar/1.6MPa/240psi
- Calibration Unit: Sensor range mbar/bar
- Process connection: Thread ISO228 G1/2 DIN3852, form E, 316L, flush mounting
Technical specifications
- Packaging type
Single
- Product type
Pressure sensor
- Type
PMP21
- Connector
G 1/2"
- Cable length
5 m
- Outputs
Analogue
- Output signal (min.)
4 mA
- Output signal (max.)
20 mA
- Accuracy
0.3 %
- Pressure reading range (min.)
-1 bar
- Pressure reading range (max.)
4 bar
- Pressure reading range
-1 bar up to 4 bar
IP66
IP68
- Min. temperature
-40 °C
- Max. temperature
+100 °C
- RoHS-compliant
Yes
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886258 Endress+Hauser PMP21-AA1A1MBWJJ Pressure sensor 1 pc(s) -1 bar up to 4 bar G 1/2" Single
User & Safety Instructions 2886258 Endress+Hauser PMP21-AA1A1MBWJJ Pressure sensor 1 pc(s) -1 bar up to 4 bar G 1/2" Single
Description
The Cerabar PMP21 is a very compact pressure transmitter with piezoresistive sensor that can measure absolute or overpressure from 400mbar to 40bar (depending on configuration) in gases, vapors, liquids and dust with an accuracy of 0.3%. The PMP21 is designed to withstand the harsh conditions in the process industry with protection classes up to IP 68 and high-quality materials such as 316L.
This text is machine translated.
This text is machine translated.
Features
- Easy to use
- High performance
- Long-term stability
- High material quality
