ENTES ES-45L ES-45L Electricity meter (AC) Digital 45 A MID-approved: Yes 1 pc(s)

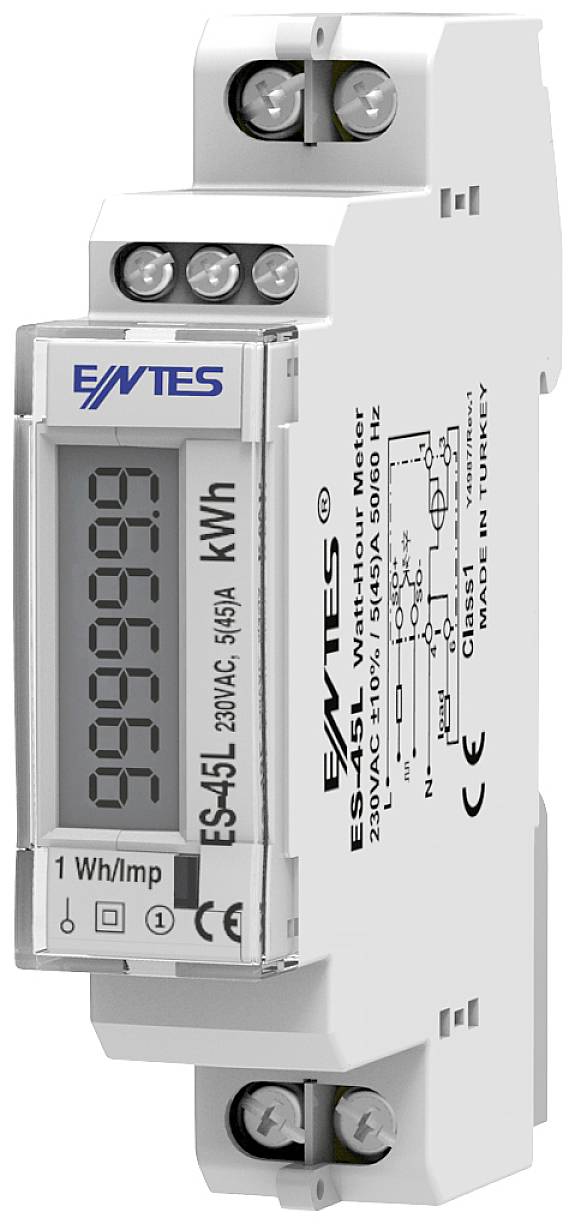

An electronic energy meter by EMİTES, Model ES45L, displays '999999 kWh' on the display. It is suitable for DIN rail mounting.
Product type
Electricity meter (AC)
Current load
45 A
Display
Digital
Operating voltage
230 V AC
Dim
(L x W x H) 63 x 19 x 87 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
2 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 73.99 / piece)
€ 73.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 2 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

AC & Three Phase Electricity Meters

  • 1-phase, 45 A.MID-approvalIP51LCD display

Technical specifications

  • Operating temperature: -25 °C to + +55 °C.
Product type

Electricity meter (AC)

Current load

45 A

Display

Digital

Operating voltage

230 V AC

Dim

(L x W x H) 63 x 19 x 87 mm

Weight

60 g

Starting current

0.25 A

Display range

0 - 999999.9 kWh

Output

Impulse output

Frequency

50 Hz

MID-approved

Yes

Reading type

Active energy

Nominal voltage range

190 up to 260 V AC

Mains voltage (max.)

260 V AC

Mains voltage (min.)

190 V AC

Width

19 mm

Height

87 mm

Length

63 mm

Current (max.)

45 A

Current (min.)

0.25 A

Current range

0.25 up to 45 A

Type

ES-45L

Effective current range

45 A

Documents & Downloads

Datasheet

Datasheet 2589100 ENTES ES-45L ES-45L Electricity meter (AC) Digital 45 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2589100 ENTES ES-45L ES-45L Electricity meter (AC) Digital 45 A MID-approved: Yes 1 pc(s)

Description

THE ES series measures the active energy consumption directly and displays the total active energy consumption. The most important features of the series are reliability, affordability, small size and easy installation. Through its pulse output, it can send information about the energy consumption to pulse collectors and other devices with digital inputs.

This text is machine translated.
