FESTO 2126600 DSBC-80-300-PPVA-N3 Standard cyclinder Stroke length: 300 mm 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 369.00 / piece)
€ 369.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

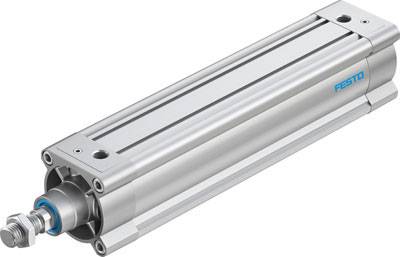

Standard cyclinder DSBC-80-300-PPVA-N3
Technical specifications
- Operating medium
According to ISO 8573-1:2010 compressed air [7:4:4]
- Product type
Standard cyclinder
- Stroke length
300 mm
- Min. operating pressure
0.4 bar
- Max. operating pressure
12 bar
- Manufacturer part #
2126600
- Type
Mounting type: with internal thread, with accessories
- Weight
2660 g
- Size
80
- Sealant
TPE-U
- Pneumatics connector
G3/8"
- Piston diameter
80 mm
- Piston rod material
Steel
- Piston rod thread
M20 x 1.5
- Force (max.)
3016 N
- Standard
ISO 15552
- Max. ambient temperature
80 °C
- Min. ambient temperature
-20 °C
- Operating principle
Double-acting
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1944248 FESTO 2126600 DSBC-80-300-PPVA-N3 Standard cyclinder Stroke length: 300 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1944248 FESTO 2126600 DSBC-80-300-PPVA-N3 Standard cyclinder Stroke length: 300 mm 1 pc(s)
Description
Clever attenuated
Clever steam - Setting Save Time: The new standard cylinder DSBC with the self-tuning pneumatic end position damping PPS adjusts optimally load and speed changes. You win time and flexibility - and your process security increases.
His many variants, the adaptation to ambient conditions and create your own custom design make it suitable for use. The DSBx: economical, comfortable and safe.
Easy selection quick in use
Ready to use for all cases:
The DSBx is the successor to the tried-and-tested series DNC and DNCB. By the mass according to ISO 15552 can easily replace DSBx its predecessor series - in the case of extremely simplified product selection.
Superior technology, long life
The self-adjusting pneumatic damping PPS and the unique piston technology make the DSBC to a technically superior cylinder at extremely low wear and tear.
This text is machine translated.
Clever steam - Setting Save Time: The new standard cylinder DSBC with the self-tuning pneumatic end position damping PPS adjusts optimally load and speed changes. You win time and flexibility - and your process security increases.
His many variants, the adaptation to ambient conditions and create your own custom design make it suitable for use. The DSBx: economical, comfortable and safe.
Easy selection quick in use
Ready to use for all cases:
The DSBx is the successor to the tried-and-tested series DNC and DNCB. By the mass according to ISO 15552 can easily replace DSBx its predecessor series - in the case of extremely simplified product selection.
Superior technology, long life
The self-adjusting pneumatic damping PPS and the unique piston technology make the DSBC to a technically superior cylinder at extremely low wear and tear.
This text is machine translated.
