Name: FESTO 554235 ADNGF-25-40-P-A Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 40 mm 1 pc(s)
Brand: FESTO
SKU: 1939696
Availability: BackOrder

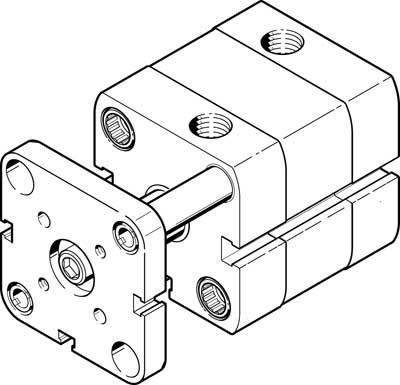

Technical drawing of a pneumatic cylinder with connection details and dimensions, suitable for mechanical engineering applications.

Datasheet (PDF)

EAN:

Part number:

Item no:

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 144.99 / piece)

€ 144.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Compact cylinder ADNGF-25-40-P-A

Technical specifications

Operating medium: According to ISO 8573-1:2010 compressed air [7:4:4]

Product type: Compact cylinder

Stroke length: 40 mm

Min. operating pressure: 1 bar

Max. operating pressure: 10 bar

Material (details): Cover: Aluminum

Manufacturer part #: 554235

Type: Corrosion resistance class KBK: 2-moderate corrosion stress

Weight: 191 g

Size: 25

Operating medium: Compressed air

Sealant: TPE-U

Pneumatics connector: M5

Enclosure material: Aluminium wrought alloy

Piston diameter: 25 mm

Piston rod material: Steel

Force (max.): 295 N

Standard: ISO 21287

Max. ambient temperature: 80 °C

Min. ambient temperature: -20 °C

Operating principle: Double-acting

UKCA: yes

Variants(All information include VAT, plus shipping costs)

Manufacturer part #

Max. operating pressure

Stroke length

FESTO 554205 ADNGF-12-5-P-A Compact cylinder Stroke length: 5 mm 1 pc(s)

Item no:1939666

Dispatches on Wed 4 Nov

Conrad Electronic

554205

10 bar

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

FESTO 554206 ADNGF-12-10-P-A Compact cylinder Stroke length: 10 mm 1 pc(s)

Item no:1939667

Dispatches on Wed 4 Nov

Conrad Electronic

554206

10 bar

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 104.99^*

FESTO 554207 ADNGF-12-15-P-A Compact cylinder Stroke length: 15 mm 1 pc(s)

Item no:1939668

Dispatches on Wed 4 Nov

Conrad Electronic

554207

10 bar

15 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554208 ADNGF-12-20-P-A Compact cylinder Enclosure material: Aluminium Stroke length: 20 mm 1 pc(s)

Item no:1939669

Dispatches on Wed 4 Nov

Conrad Electronic

554208

10 bar

20 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554209 ADNGF-12-25-P-A Compact cylinder Stroke length: 25 mm 1 pc(s)

Item no:1939670

Dispatches on Wed 4 Nov

Conrad Electronic

554209

10 bar

25 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554210 ADNGF-12-30-P-A Compact cylinder Stroke length: 30 mm 1 pc(s)

Item no:1939671

Dispatches on Wed 4 Nov

Conrad Electronic

554210

10 bar

30 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554211 ADNGF-12-40-P-A Compact cylinder Stroke length: 40 mm 1 pc(s)

Item no:1939672

Dispatches on Wed 4 Nov

Conrad Electronic

554211

10 bar

40 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554212 ADNGF-16-5-P-A Compact cylinder Stroke length: 5 mm 1 pc(s)

Item no:1939673

Dispatches on Wed 4 Nov

Conrad Electronic

554212

10 bar

5 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554213 ADNGF-16-10-P-A Compact cylinder Stroke length: 10 mm 1 pc(s)

Item no:1939674

Dispatches on Wed 4 Nov

Conrad Electronic

554213

10 bar

10 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 109.99^*

FESTO 554214 ADNGF-16-15-P-A Compact cylinder Stroke length: 15 mm 1 pc(s)

Item no:1939675

Dispatches on Wed 4 Nov

Conrad Electronic

554214

10 bar

15 mm

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 114.99^*

Documents & Downloads

Datasheet

Datasheet 1939696 FESTO 554235 ADNGF-25-40-P-A Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 40 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1939696 FESTO 554235 ADNGF-25-40-P-A Compact cylinder Enclosure material: Aluminium wrought alloy Stroke length: 40 mm 1 pc(s)
