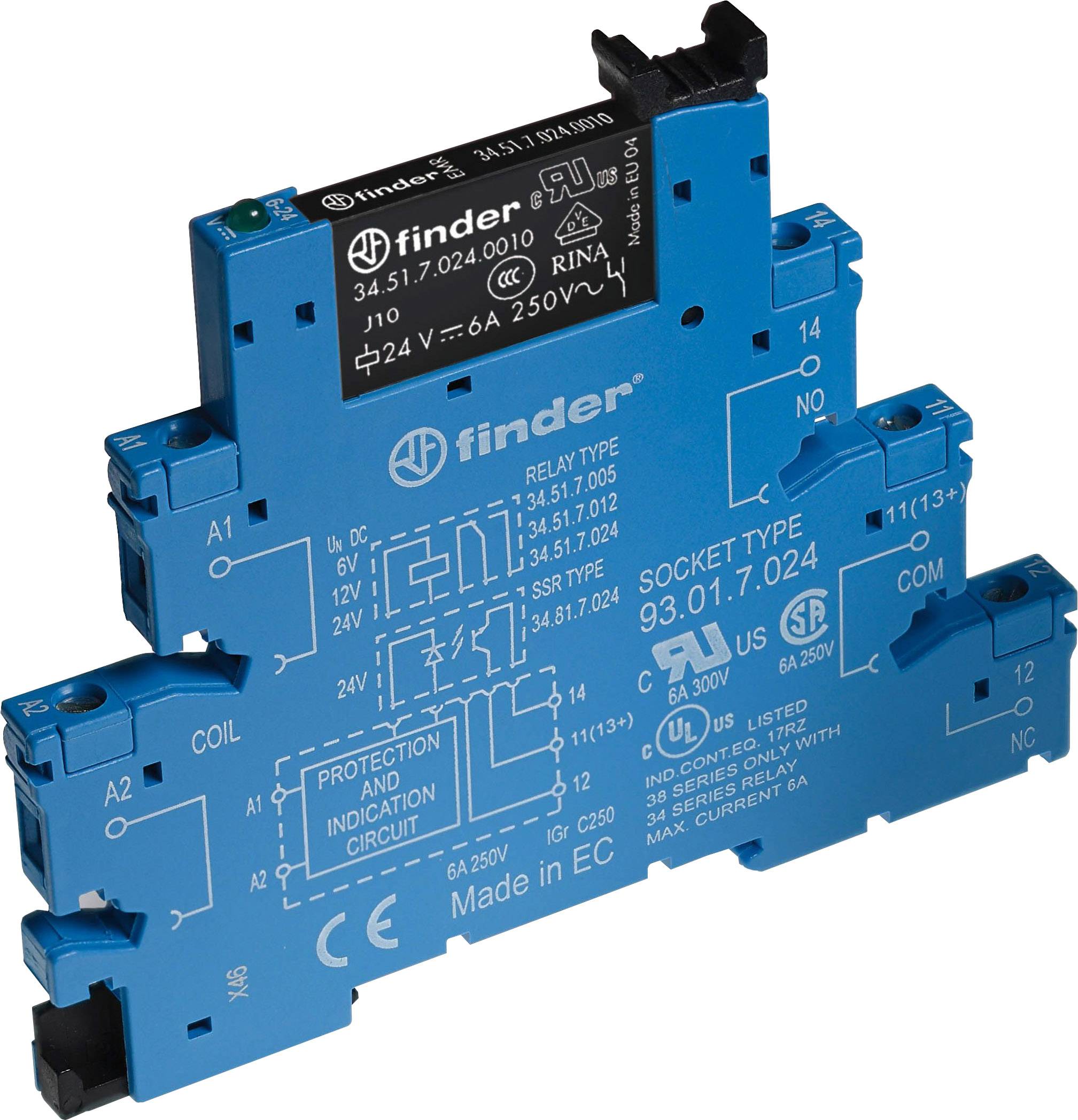

Finder 38.51.7.024.4050 - A Relay Interface Module N/A
Part number:
Item no:
Product type
Relay component
Contact type
1 change-over
Nominal voltage
24 V DC
Switching voltage (max.)
400 V AC
Switching current (max.)
6 A
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 15.12
3
5% = € 0.75
€ 14.37
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 15.12 / piece)
€ 15.12
plus VAT.
14-day return policy included
Highlights & Details
Finder 38.51.7.024.4050 - A Relay Interface Module N/A
- N/A relay
- AgSnO2 contacts
- Instant ejection of relay by plastic retaining clip
- Integral coil indication and protection circuit
- 35mm rail (EN 60715) mounting
Technical specifications
- Relay protection RT III
- Product type
Relay component
- Type
38.51.7.024.4050
- Connection
Screw terminal
- Contact type
1 change-over
- Contact material
AgSnO2
- Nominal voltage
24 V DC
- Switching voltage (max.)
400 V AC
- Switching current (max.)
6 A
- Features
+ EMC emission suppressor
+ LED
IP20
- Max. temperature
+70 °C
- Min. temperature
-40 °C
- Length
93.6 mm
- Width
6.2 mm
- Height
76 mm
- Dim
(L x W x H) 93.6 x 6.2 x 76 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2196578 Finder 38.51.7.024.4050 - A Relay Interface Module N/A
Datasheet 2196578 Finder 38.51.7.024.4050 - A Relay Interface Module N/A
User & Safety Instructions
User & Safety Instructions 2196578 Finder 38.51.7.024.4050 - A Relay Interface Module N/A
Description
The installed relays are easily replaced. Sensitive control "Safer separation" according to VDE 0160/EN 50178.
Hints
Approvals: CULus, EAC, IMQ, RINA, CSA.
