Name: Fischer 532658 FIS H 16 x 130 K K NV Anchor plug 130 mm 16 mm 1 Set
Brand: Fischer
SKU: 3065859
Price: 8.99 EUR
Availability: InStock

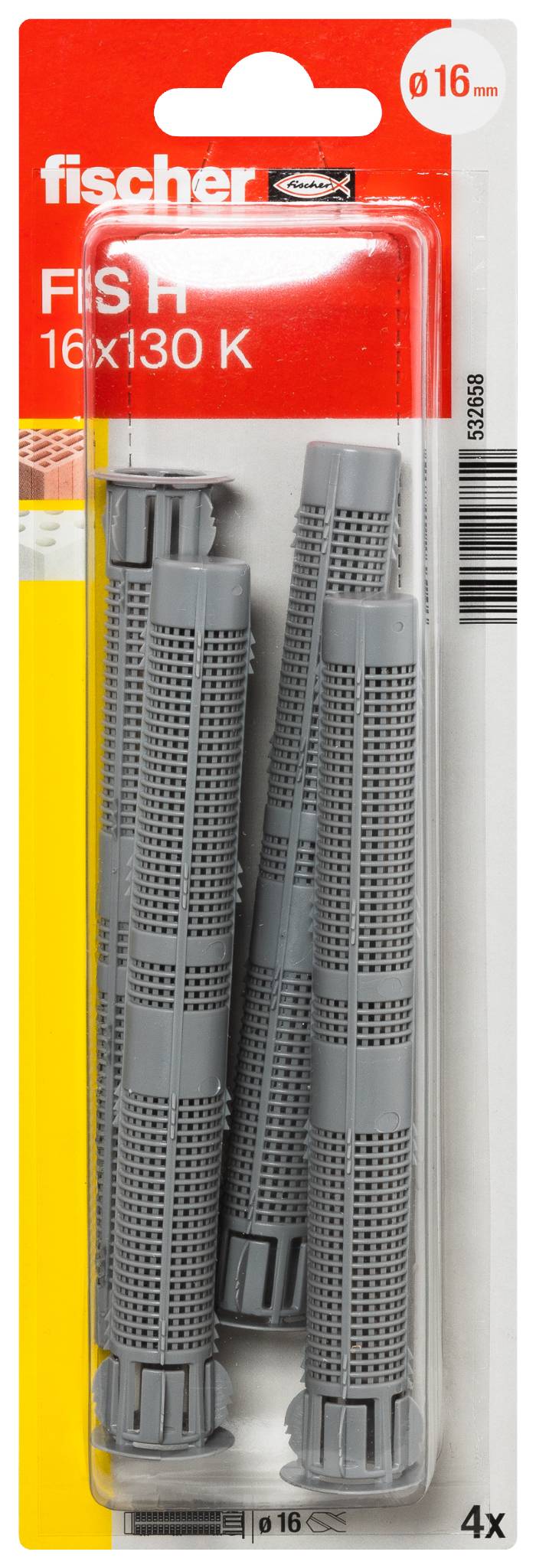

Package of Fischer FIS H 16x130 K wall anchors, four gray perforated sleeves in red-and-yellow blister pack with barcode and 16 mm label

A silver cylindrical metal filter cartridge with perforated mesh sections and end caps, shown horizontally on a white background.

Fischer FIS H 16x130 K product package showing installation dimensions, anchor illustrations, and part number 532658 with barcode.

Close-up of a steel bolt fastening a diagonal wooden beam to a vertical wooden post beside a brick wall, showing a structural joint.

Close-up illustration of a wall-mounted bracket anchored with two bolts through a brick wall, supporting an outdoor fixture or railing arm.

Wooden pergola-like canopy with a flat roof and four support posts attached in front of two windows on a plain wall.<br>

Cutaway of a masonry anchor bolt fixed in a brick wall and wood board, showing the expanded sleeve gripping the hole and threaded end secured with a washer and nut.

Cutaway of a metal expansion anchor bolt fixed into a brick wall, with a threaded bolt and nut securing a bracket on the right.

1/8

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

7 Set(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Set(s)

Total (€ 8.99 / piece)

€ 8.99

incl. VAT

Only 7 Set(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Fischer FIS H 16 x 130 K injection anchor sleeve, plastic

Grid structure of the anchor sleeve reduces mortar consumption.
Anchor plug enables optimum fit in perforated brick.
Centering wings fix anchor rods with different diameters. This reduces complexity and storage.
Hooks: No falling out when overhead mounting.
ETA-approval.

Technical specifications

(Ø): 16 mm

Product type: Anchor plug

Material: Plastic

Length: 130 mm

Dim: (Ø x L) 16 mm x 130 mm

Suitable for: Cored bricks
Structural lightweight concrete
Concrete
Flintlime hollow bricks
Flintlime bricks
Solid brick
Hollow pumice slabs
Hollow ceiling panels
Pumice

Content: 1 Set

Outside Ø: 16 mm

Documents & Downloads

Datasheet

Datasheet 3065859 Fischer 532658 FIS H 16 x 130 K K NV Anchor plug 130 mm 16 mm 1 Set

User & Safety Instructions

User & Safety Instructions 3065859 Fischer 532658 FIS H 16 x 130 K K NV Anchor plug 130 mm 16 mm 1 Set

Description

The Fischer FIS H K injection armature sleeve is the system component for a professional and mortar-saving assembly of the FIS A anchor rod or the FIS E internal thread anchor in the brickwork. The Fischer FIS V, FIS VW HIGH SPEED injection mortar, multi-function mortar, assembly mortar and Green assembly mortar can be used for this purpose. The optimized grid structure reduces the consumption of the injection mortar. When setting the anchor rod and the internal thread anchor, the mortar is pressed through the grid structure and connects to the perforated stone in the form closure. This will route the load into the building material. It is placed in the pre-plug mounting. Non-load-bearing layers can be bridged with the injection anchor sleeve. The approvals for the injection mortar must be observed.
