Fluke 9062 Rotating EMF indicator CAT III 300 V LED
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 315.13 / piece)
€ 315.13
plus VAT.
Highlights & Details

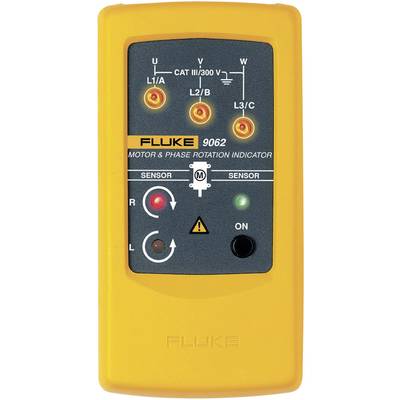

Phase rotation tester Fluke 9062
- Contact-free recognition of phase rotation of motors
Technical specifications
- Voltages: 120 - 440 V / AC
- Operating frequency: 2 - 400 Hz
- display via LCD • electrical safety: CAT III 300 V
- Product type
Rotating EMF indicator
- Reading type
Rotating magnetic field
- Display
LED
- V AC reading range
120 up to 440 V
- Reading category
CAT III 300 V
IP40
Manufacturer's standards (no certificate)
- Dim
(L x W x H) 124 x 61 x 27 mm
- Max. frequency
400 Hz
- Min. frequency
2 Hz
- Frequency range
2 Hz - 400 Hz
- V AC reading range (max.)
440 V
- V AC reading range (min.)
120 V
- Width
61 mm
- Height
27 mm
- Length
124 mm
- Type
9062
- Power supply (details)
9 V battery pack
Documents & Downloads
Datasheet
Datasheet 122166 Fluke 9062 Rotating EMF indicator CAT III 300 V LED
User & Safety Instructions
User & Safety Instructions 122166 Fluke 9062 Rotating EMF indicator CAT III 300 V LED
Description
Three functions in a compact form: direction indicator of rotary field, motor rotation testers and non-contact detection of the rotational direction of closed motors. You can also record the phase rotation of synchronous and asynchronous three-phase motors with this device. The contact-free measurement is ideal for motors whose shaft is not visible.
Scope of delivery
- 1 battery (9 V Block)
- Alligator clips
- Flexible probe tip
- Manual.
