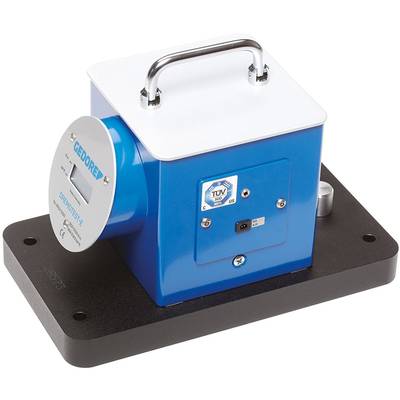

Gedore 8612-3150 2529858
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 2,293.28 / piece)
€
Technical specifications
- For testing or setting right-hand torque wrench and torque screwdriver, ideal for checking fixed torque wrenches on the line
- , easy-to-use electronic tester with integrated torsion measuring transducer (DMS)
- with 1/4" hexagonal socket, SW 10, 17, 36 mm or square socket 1.1/2" (depending on model)
- with 1/4", 3/8", 1/2", 3/4", 1" square adapter or bit adapter 1/4" or 3/8" (depending on model)
- high measuring accuracy: +/- 1 % tolerance for all readings, +/- 1 digit
- 1. Peak value detection (first peak / spot detection)
- Auto reset
- can be switched between N
- m, lbf
- ft and lbf
- in
- serial interface RS232 for PC
- Optional available: Car adapter for power supply with 12 Volt (No. 8612-390), software for plausibility check (code 2834391)
- Delivery:
- Electronic tester
- RS232 cable
- power supply with Euro plug (UK, US, OFF adapter on request)
- 100 - 240 V, 50 - 60 Hz, max. 500 mA (observe rating plate)
- 2 socket wrench inserts (size and drive depending on model)
- Adapter for No. 8612-3150
- Instructions for use
- Shipping packaging
- Product type
Tester
- Torque (min.)
500 Nm
- Torque (max.)
3150 Nm
- Trigger accuracy
1 %
- Length
415 mm
- Weight
26 kg
Manufacturer's standards (with certificate)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908614 Gedore 8612-3150 2529858
Information
Information 1908614 Gedore 8612-3150 2529858
Conformity certificate
Conformity certificate 1908614 Gedore 8612-3150 2529858
Description
Features
- For verifying and setting clockwise torque wrenches and torque screwdrivers
- Easy to operate, electronic torque tester with integrated torque transducer (DMS)
- 5 models in the range from 0.2 to 3150 N
- m
- With fixed hexagon female drive 1/4", 10, 17, 36, 46 mm or 1.1/2" square drive adaptor (model dependent)
- With 1/4", 3/8", 1/2", 3/4", 1" square drive adaptor or bit adaptor (model dependent)
- High measurement accuracy: +/- 1 % tolerance of reading, +/- 1 digit
- Break-Point-measurement (1st peak)
- Autoreset
- Can be switched from N
- m to lbf
- ft
- Serial interface RS232
- Optionally available: adaptor for cigarette lighter socket (12 V), no. 8612-390 Scope of delivery:
- Electronic torque tester
- RS232 cable
- Power supply unit with EURO plug (UK, US, AUS-adaptor on request)
- 100 - 240 V, 50 - 60 Hz, max. 500 mA (see type plate)
- 2 sockets (size and drive model-dependent)
- Adaptor for 8612-3150
- Operating instructions
- Packaging
