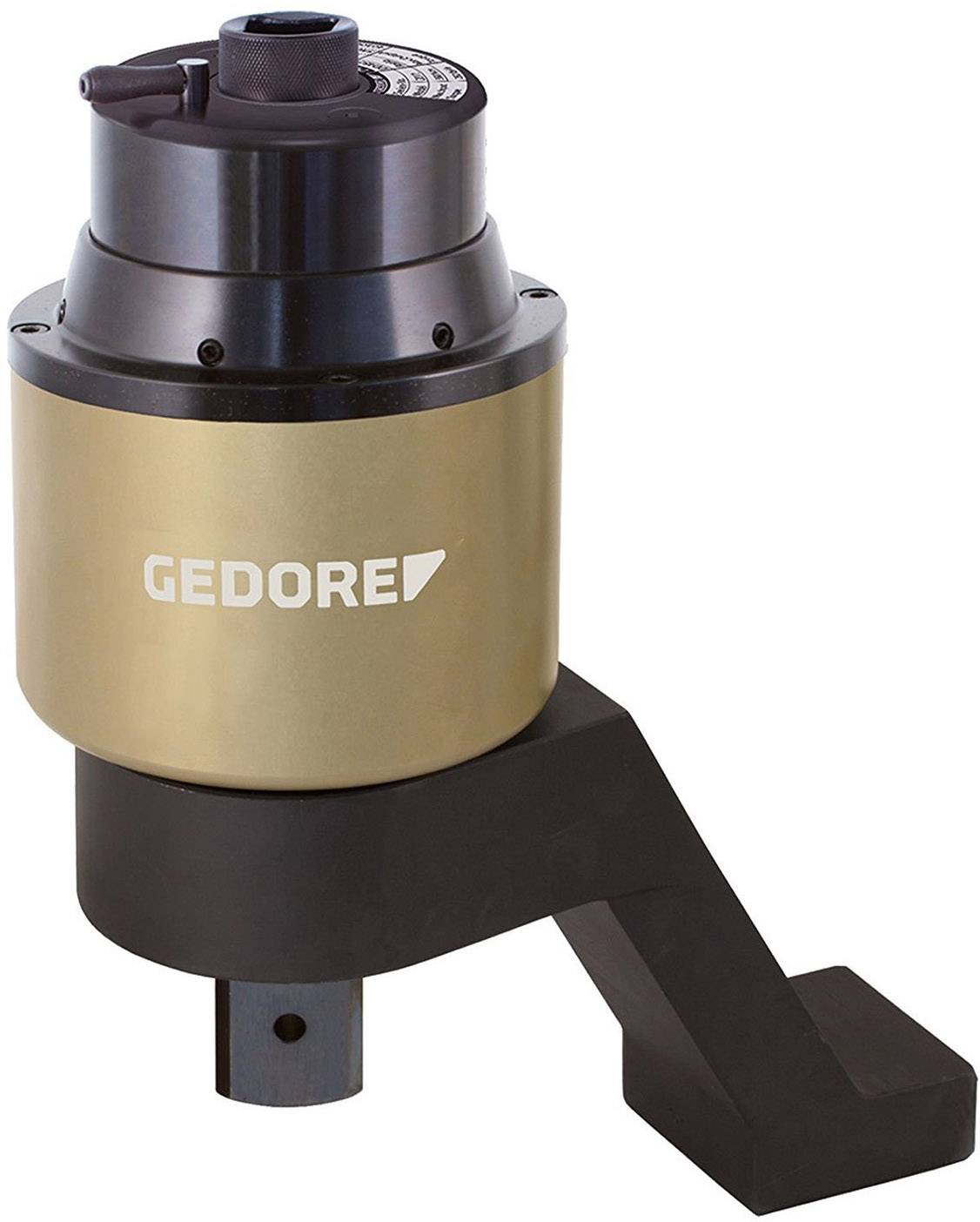

Gedore DVV-100ZRS 2653133 Torque multiplier
EAN:
Part number:
Item no:
Number
Total (€ 8,340.34 / piece)
€ 8,340.34
plus VAT.
Only 8 Piece(s) available
Technical specifications
- Particularly suitable for:
- Mechanical engineering
- and plant engineering Cable cars, lifts and masts
- Heavy industry, construction sites
- Bridge construction
- Ship, aircraft, railway construction
- Refineries, plastics industry
- Power plants of all kinds
- Design:
- Mechanical, hand-operated torque multiplier for the controlled screw suit and for loosening screw connections
- with two-stage planetary gear
- Housing from high-performance aluminum
- Models with transmission ratio 1:18, 1:22, 1:28.5, 1:39
- all models with reverse protection (RS)
- with non-destructive overload protection "Slipper" for protection of the gearbox, right/left-handed with
- model-dependant, offset reaction arm Z-shape made of chrome-vanadium steel
- Optionally retrofit with straight reaction arm L-shape, with adjustable reaction square,
- accuracy guaranteed from light metal: Better than +/- 3 % tolerance
- to operate in conjunction with a torque wrench
- 4 models with maximum load in the range of max. 6000 N
- m to max. 13000 N
- m
- output four-edge with bore for power-screw inserts with safety pin and ring
- Delivery scope:
- Torque multiplier DREMOPLUS ALU
- with offset reaction arm Z-shape
- Delivery in a sturdy carrying case with foam insert
- Factory test certificate and setting table
- Technical detailed information is available on request
- Product type
Torque multiplier
- Torque (max.)
55 Nm
- Length
230 mm
- Weight
17.5 kg
- Width
142 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1908789 Gedore DVV-100ZRS 2653133 Torque multiplier
Information
Information 1908789 Gedore DVV-100ZRS 2653133 Torque multiplier
Description
Features
- Particularly suitable for:
- Machinery and plant engineering
- Cable cars, lifts and masts
- Heavy industry, construction sites
- Bridge construction
- Shipbuilding, aircraft and railway construction
- Refineries, plastics industry
- Power plants of all kinds Features:
- Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a two-stage planet gear
- High-performance aluminium housing
- Torque multiplication ratio: 1:18, 1:22, 1:28.5, 1:39
- All models with anti-wind-up ratchet (RS)
- With non-destructive "Slipper" overload safety mechanism for gear protection - clockwise and anticlockwise
- Z-form, offset reaction arm depending on model made of chrome-vanadium steel
- Can be optionally retrofitted with L-form straight reaction arm - with adjustable reaction arm - of lightweight metal
- Guaranteed accuracy: Better than +/- 3 % tolerance
- For operation in combination with a torque wrench
- 4 models for maximum load in the range between max. 6000 N
- m and max. 13000 N
- m
- Output square with drill hole for impact sockets with safety pin and ring Scope of delivery:
- Torque Multiplier DREMOPLUS ALU
- With Z-form offset reaction arm
- Delivery in sturdy shipping case with foam insert
- Factory test certificate and setting table
- Detailed technical information is available on request
