Name: Glass fibre tester OLP-38V2 Viavi Solutions Networks
Brand: Viavi Solutions
SKU: 2840683
Availability: BackOrder

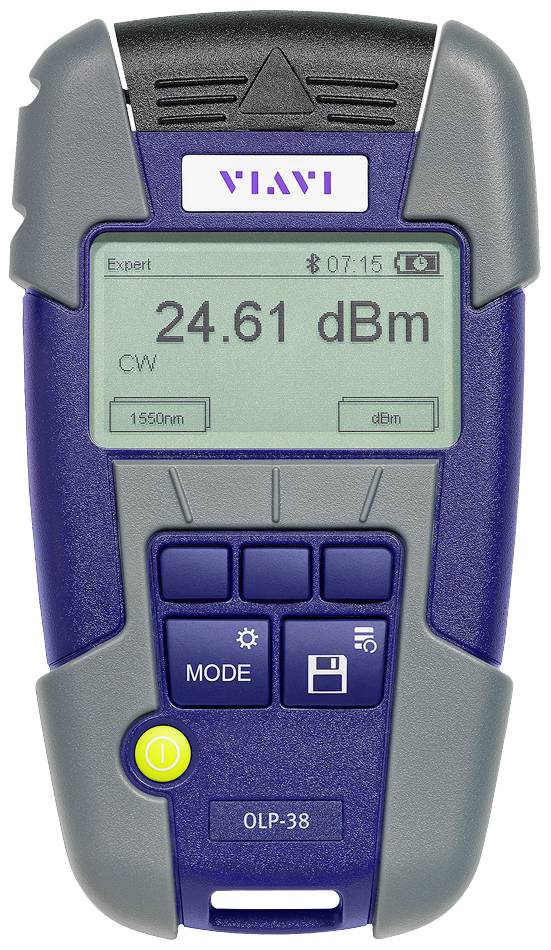

Hand-held measuring device with digital display showing '24.61 dBm'. The device has several buttons for operation and is blue-grey.

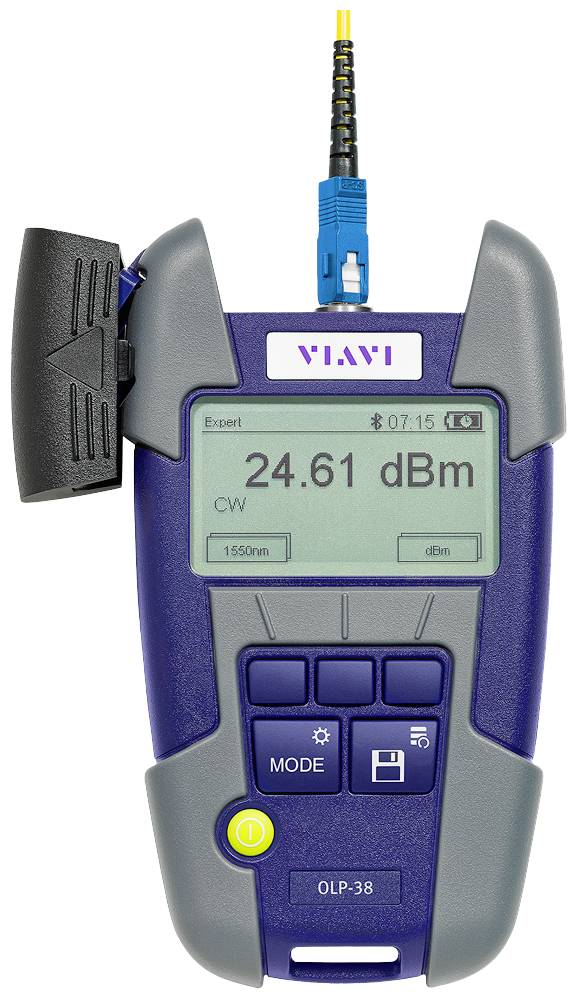

A handheld measuring device shows '24.61 dBm' on the display. Above, an optical cable and a USB port can be seen.

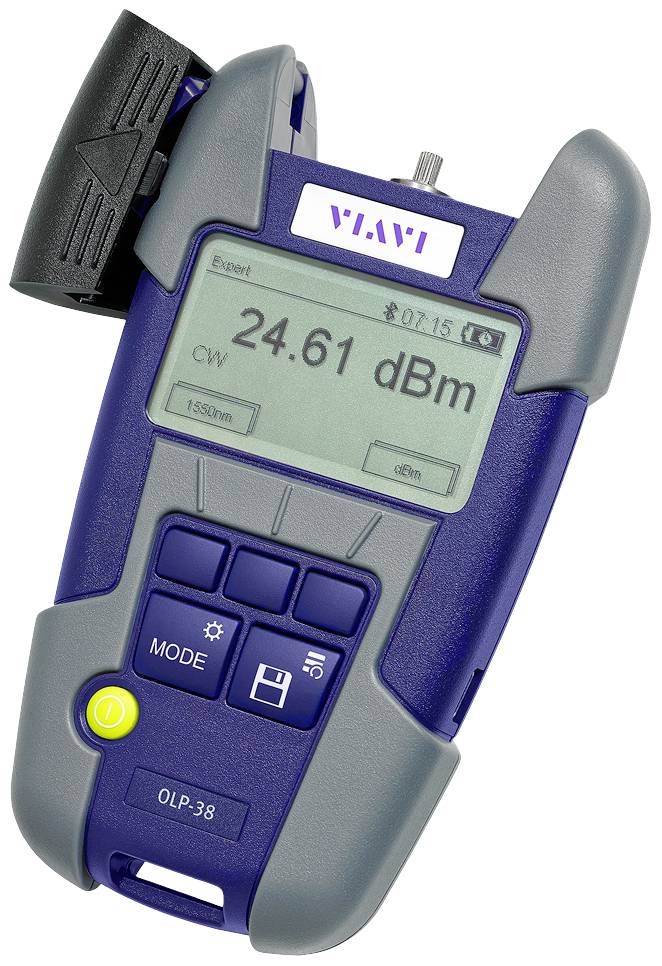

Portable optical power meter displaying "24.61 dBm" on the screen. Device has buttons for mode and settings.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,089.00 / piece)

€ 1,089.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VIAVI SmartPocket™ v2 Broadband Level Meter with UPP Adapter and Bluetooth® connection, InGaAs diode, +26 dBm, 850 to 1650nm

Technical specifications

Adjustable wave lengths 800 to 1,650 nmResolution 0.01 dB, 0.001 µWPower level measurement range -50 to +26 dBmMax. Power level: +27 dBmMeasurement uncertainty ± 0.2 dB

Product type: Glass fibre tester

Optical display: Yes

Dim: (W x H x D) 80 x 30 x 150 mm

Weight: 200 g

Range: Networks

Features: Data export mode

Width: 80 mm

Height: 30 mm

Depth: 150 mm

Type: OLP-38V2

Documents & Downloads

Datasheet

Datasheet 2840683 Glass fibre tester OLP-38V2 Viavi Solutions Networks

User & Safety Instructions

User & Safety Instructions 2840683 Glass fibre tester OLP-38V2 Viavi Solutions Networks

Description

The VIAVI OLP-38V2 are broadband level meters (PM) for fast, easy and convenient measurement of optical power levels and attenuation in fiber optic networks. The broad band level meter of the series SmartPocket V2 is equally suitable for beginners and experts. They complement VIAVI optical light sources (OLS, sold separately) for insertion loss determination and continuity testing in multimode and singlemode networks. The robust and compact testers are available in a practical pocket format.

This text is machine translated.

Features

Sets the wavelength in steps of 1 nmUniversal optical connection for all 2.5 mm connectors with an option for 1.25 mmFiber localization: Detection of the light signals generated by the SmartPocket V2 light sourcesStorage capacity for more than 1000 test results and transfer to a PCBluetooth connection to the VIAVI Mobile Tech APP3 Power options: Alkaline (AA), NiMH (AA), AC power supply3-year calibration intervalMeasurement of optical power levels and insertion losses in single-mode and multi-mode networksInstallation and maintenance of networks for: Enterprise/LAN, Access and Metro (LAN/WAN), FTTx (FTTH, FFTA…)Measurement of standard and high power levels

Scope of delivery

1x VIAVI SmartPocket™ v2 high-performance broadband meter1x 2.5 mm universal adapter1x shoulder strap1x belt pouch1x USB cable2x AA battery1x quick user guide

Hints

Caution! This is a Class 1 laser product
