Name: Glass fibre tester OLS-35V2 Viavi Solutions Networks
Brand: Viavi Solutions
SKU: 2840686
Availability: BackOrder

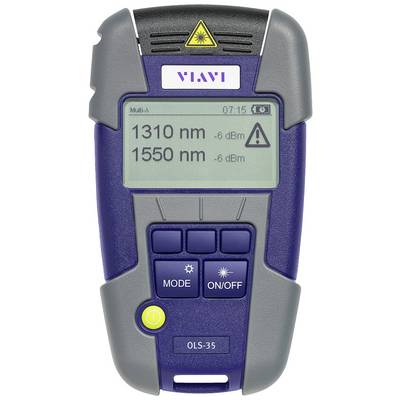

A handheld device displays two wavelengths '1310 nm' and '1550 nm' on the screen, along with -6 dBm. Below are mode and on/off buttons.

An optical power level measuring device with a digital display shows two wavelengths: 1310 nm and 1550 nm. Connected with a cable.

Handheld optical measuring device with display indication of '1310 nm' and '1550 nm'. Shows power measurement in dBm. Device by 'VIAVI'.

Handheld device with screen displaying '1310 nm', '1550 nm', '-6 dBm'. Two vertical buttons, marked 'MODE' and 'ON/OFF', underneath.

1/4

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2,465.00 / piece)

€ 2,465.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VIAVI SmartPocket™ v2 Optical light source for single mode, dual mode, 1310/1550 nm

Technical specifications

Wavelength 1,310/1,550 nmWavelength accuracy: ± 20 nmSpectral bandwidth (FWHM): Less than 5 nmOutput level: Type. -3 dBmShort-term stability: ± 0.02 dB over 15 minutesLong-term stability: ± 0.05 dB over 8 hours

Product type: Glass fibre tester

Function: Cable tracking

Display: Graphical

Optical display: Yes

Test sockets: SC plug

Dim: (W x H x D) 80 x 30 x 150 mm

Weight: 200 g

Range: Networks

Features: Data export mode

Width: 80 mm

Height: 30 mm

Depth: 150 mm

Type: OLS-35V2

Documents & Downloads

Datasheet

Datasheet 2840686 Glass fibre tester OLS-35V2 Viavi Solutions Networks

User & Safety Instructions

User & Safety Instructions 2840686 Glass fibre tester OLS-35V2 Viavi Solutions Networks

Description

The VIAVI OLS-35V2 series includes several small and robust optical light sources (OLS) for fast, easy and convenient measurement of insertion loss as well as for continuity tests in the field. The SmartPocket V2 range of light sources are suitable for use in conjunction with the OLP-3xV2 series power level meters for measuring insertion loss and for continuity testing in multimode and singlemode networks. The robust and compact testers are available in a practical pocket format.

This text is machine translated.

Features

Covers all standard single-mode telecommunications network applications with wavelengths of 1310/1550 nmOne-button operation enables fast, simple and error-free testingFibre-tracing by producing light sourcesUSB-C interface for power supply, connection to the PC and firmware updatesReliable design for rugged outdoor use, exceptionally long battery life with over 50 hours of continuous operationBacklit, well visible graphic display with context-sensitive softkeysEquipped with Auto λ and Multi λ functions that are compatible with each SmartPocket(TM) V2 Power Meter (sold separately)Delivery with mounted SC adapter

Scope of delivery

1x VIAVI SmartPocket™ v2 Optical source for single mode with SC connector1 x FC adapter1x shoulder strap1x belt pouch2x AA battery1x quick user guide

Description

Features

Covers all standard single-mode telecommunications network applications with wavelengths of 1310/1550 nmOne-button operation enables fast, simple and error-free testingFibre-tracing by producing light sourcesUSB-C interface for power supply, connection to the PC and firmware updatesReliable design for rugged outdoor use, exceptionally long battery life with over 50 hours of continuous operationBacklit, well visible graphic display with context-sensitive softkeysEquipped with Auto λ and Multi λ functions that are compatible with each SmartPocket(TM) V2 Power Meter (sold separately)Delivery with mounted SC adapter
