Name: Glass fibre tester OMK-35V2 Viavi Solutions Networks
Brand: Viavi Solutions
SKU: 2840688
Availability: BackOrder

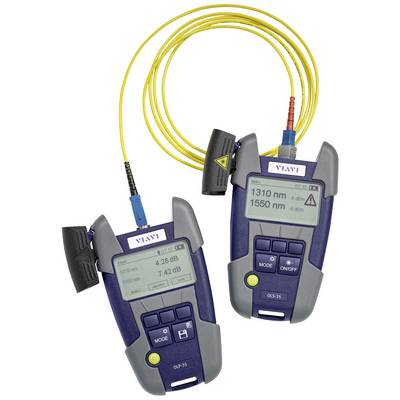

Two optical performance measuring devices with screens and yellow cables for testing fibre-optic connections.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,009.00 / piece)

€ 3,009.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VIAVI SmartPocket™ v2 Telekom Applications Plus Single-Mode Test Kit with OLS-35V2 and OLP-35V2

Technical specifications

Wavelength (light source): 1,310/1,550 nmOutput level (light source): Type. -3 dBmPower range (Optical power level meter): -65 to +10 dBm

Product type: Glass fibre tester

Function: Continuity

Optical display: Yes

Dim: (W x H x D) 80 x 30 x 150 mm

Weight: 200 g

Range: Networks

Width: 80 mm

Height: 30 mm

Depth: 150 mm

Type: OMK-35V2

Documents & Downloads

Datasheet

Datasheet 2840688 Glass fibre tester OMK-35V2 Viavi Solutions Networks

User & Safety Instructions

User & Safety Instructions 2840688 Glass fibre tester OMK-35V2 Viavi Solutions Networks

Description

The VIAVI OMK-3xV2 optical measuring case includes rugged pocket-sized testers for the installation and maintenance of optical singlemode (SM) and multimode (MM) networks. All measuring kits are equipped with an optical power level meter and a light source with two or four wavelengths to measure power levels and insertion losses and perform continuity tests.

This text is machine translated.

Features

Single-mode test kit for telecommunications applications with optical light source OLS-35V2 and optical power meter OLP-35V2 for measuring optical power and insertion loss in single-mode networksOLP-35V2 Features: Universal optical interface with UPP adapter supports all 2.5 mm plugs with an option for 1 25 mm plugs1 nm incremental wavelength settingsFibre tracing by detecting optical sources of lightStore more than 1000 test resultsUSB-C interface for power supply, read out results and connection to a PCBluetooth(R) low energy connectivity to Viavi Mobile Tech APPUltra-reliable design for the robust, exceptionally long battery life with more than 70 hours of continuous operationBackground-lit graphic display with context-sensitive soft keysConvenient OptiChek measurement mode does not require wavelength configurationAuto λ, Multi λ mode delivers lightning-fast, error-free testsAutomatic upload of results via the Viavi Mobile Tech applicationCalibrated at 850 nm, 980 nm, 1310 nm, 1490 nm, 1550 nm, 1577 nm, 1625 nm and 1650 nmDisplay range: -65 to +10 dBmOLS-35V2 Features:Covers all standard single-mode telecommunications network applications with wavelengths of 1310/1550 nmOne-button operation enables fast, simple and error-free testingFibre-tracing by producing light sourcesUSB-C interface for power supply, connection to the PC and firmware updatesUltra reliable design for the robust Extraordinary long battery life with more than 50 hours continuous operationBackground-lit graphic display with context-sensitive soft keysEquipped with auto λ and multi λ functions, which are compatible with the power meter OLP-35V2Supplied with mounted SC adapter

Scope of delivery

1x VIAVI SmartPocket™ v2 OLP-35V2 level meter with 2.5 mm universal adapter1x VIAVI SmartPocket™ v2 OLS-35V2 light source with SC connector2x FC adapter1x shoulder strap1x carry bag1x USB cable4x AA battery1x AC power supply with micro-USB connection1x quick user guide
