Name: Glass fibre tester OMK-36V2 Viavi Solutions Networks
Brand: Viavi Solutions
SKU: 2840691
Availability: BackOrder

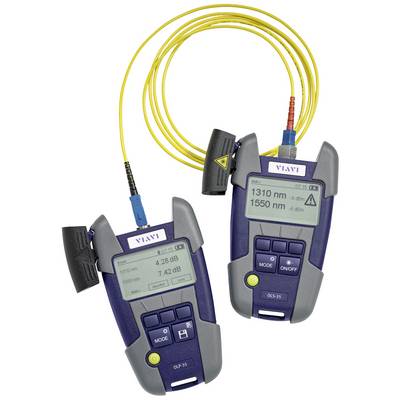

Two optical measuring instruments with yellow fibre optic cables. Displays show different wavelengths and loss values.

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 4 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,975.00 / piece)

€ 3,975.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

VIAVI SmartPocket™ v2 Enterprise Plus Single Mode and Multimode Quad Test Kit with OLS-36V2 and OLP-35V2

Technical specifications

Wavelength (light source): 850/1,300/1,310/1,550 nmOutput level (light source): Type. -20 dBm, -3 dBmPower range (Optical power level meter): -65 to +10 dBm

Product type: Glass fibre tester

Function: Continuity

Optical display: Yes

Dim: (W x H x D) 80 x 30 x 150 mm

Weight: 200 g

Range: Networks

Width: 80 mm

Height: 30 mm

Depth: 150 mm

Type: OMK-36V2

Documents & Downloads

Datasheet

Datasheet 2840691 Glass fibre tester OMK-36V2 Viavi Solutions Networks

User & Safety Instructions

User & Safety Instructions 2840691 Glass fibre tester OMK-36V2 Viavi Solutions Networks

Description

The VIAVI OMK-36V2 optical measuring case includes rugged pocket-sized testers for the installation and maintenance of optical singlemode (SM) and multimode (MM) networks. All measuring kits are equipped with an optical power level meter and a light source with two or four wavelengths to measure power levels and insertion losses and perform continuity tests.

This text is machine translated.

Features

Broadband level meter with SM or SM/MM light sources for two or four wavelengthsFiber localization by detection of the light signals sent from optical sourcesStorage capacity for more than 1000 test results and transfer to a PCBluetooth low-energy connection (BLE) to VIAVI mobile tech APP3 Power options: Alkaline (AA), NiMH (AA), AC power supply3-year calibration intervalMeasurement of optical power levels and insertion losses in single-mode and multi-mode networksInstallation and maintenance of networks for: Enterprise/LAN, Access and Metro (LAN/WAN), FTTx (FTTH, FTTA…)Standard and high-performance tests for telecommunications, CATV and military applications

Scope of delivery

1x VIAVI SmartPocket™ v2 OLP-35V2 level meter with 2.5 mm universal adapter1x VIAVI SmartPocket™ v2 OLS-36V2 light source with SC connector2x FC adapter1x shoulder strap1x carry bag1x USB cable4x AA battery1x AC power supply with micro-USB connection1x quick user guide

Hints

Caution! This is a Class 1 laser product
