Name: Godex GX4200i Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN
Brand: Godex
SKU: 3281104
Availability: BackOrder

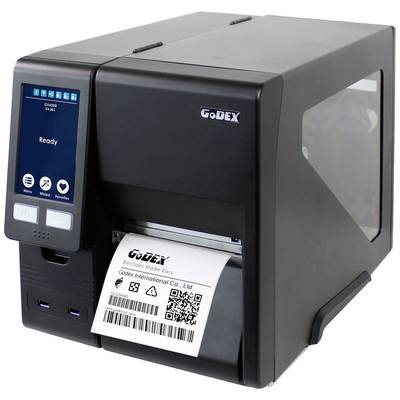

A label printer is printing a label with a QR code and text reading 'GoDEX International Co., Ltd.'. The screen displays 'Ready'.

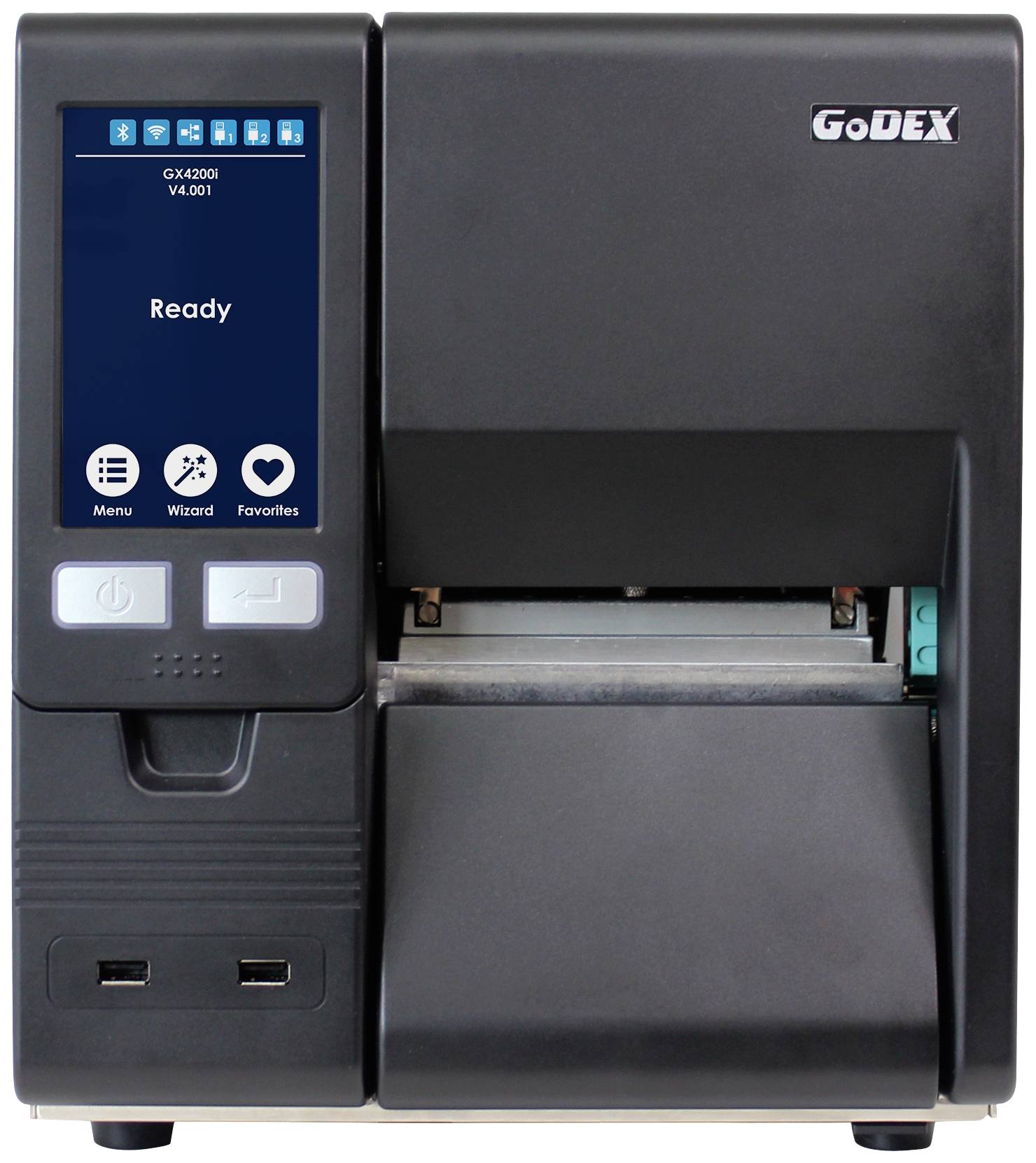

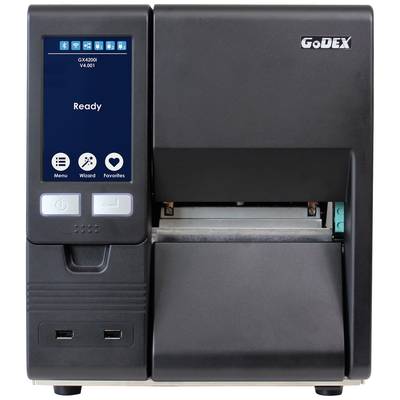

A black label printer with a digital display shows the status 'Ready'. Control buttons are visible below the display.

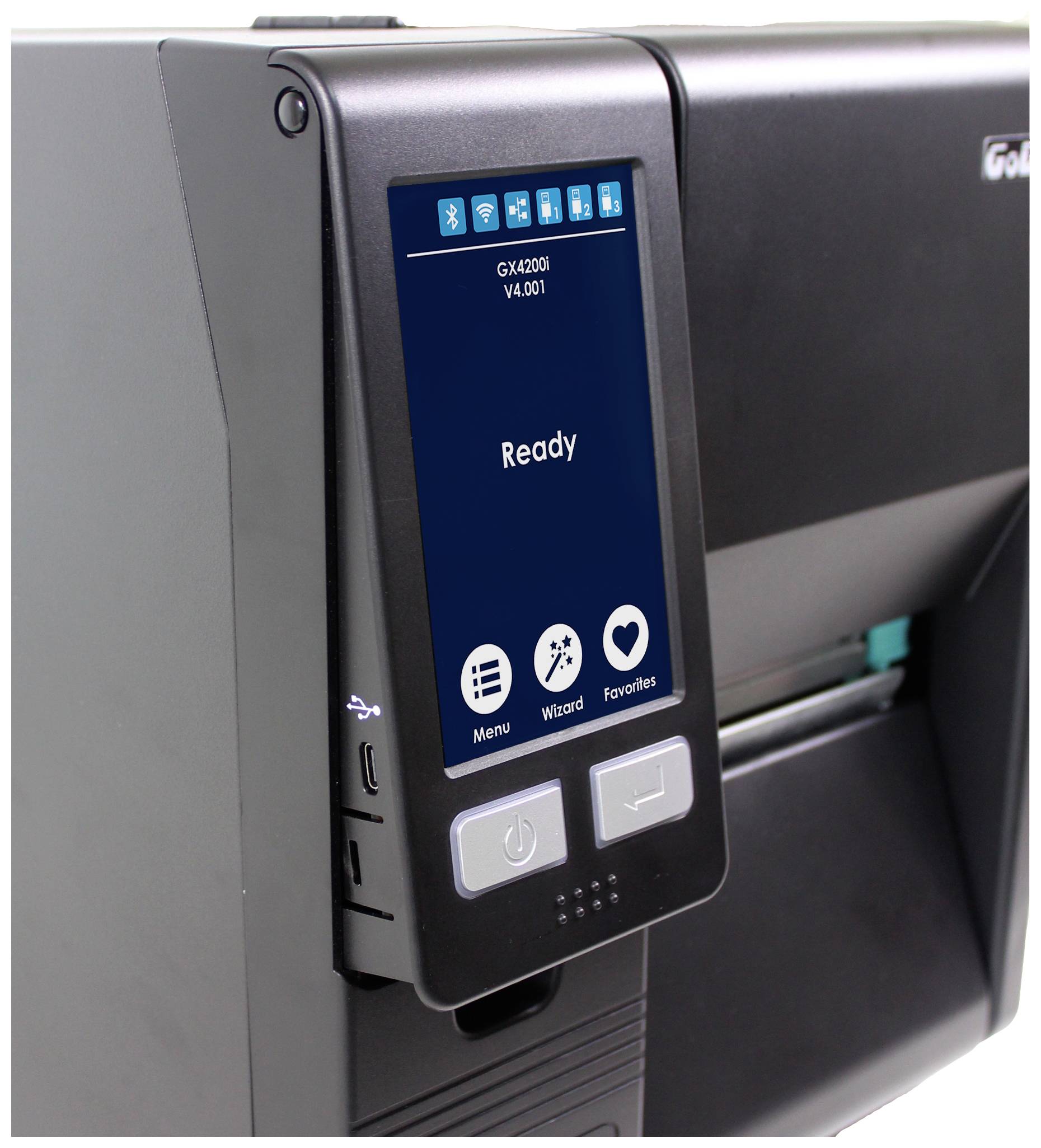

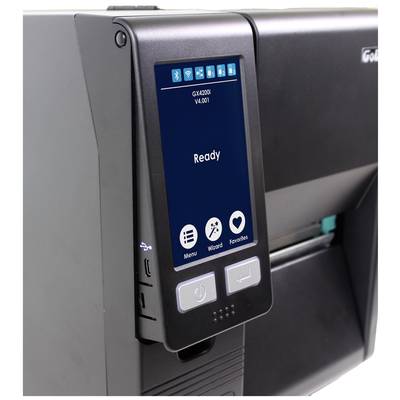

A printer with a control panel at the front displays the status 'Ready'. Four buttons: 'Menu', 'Wizard', 'Favourites'.

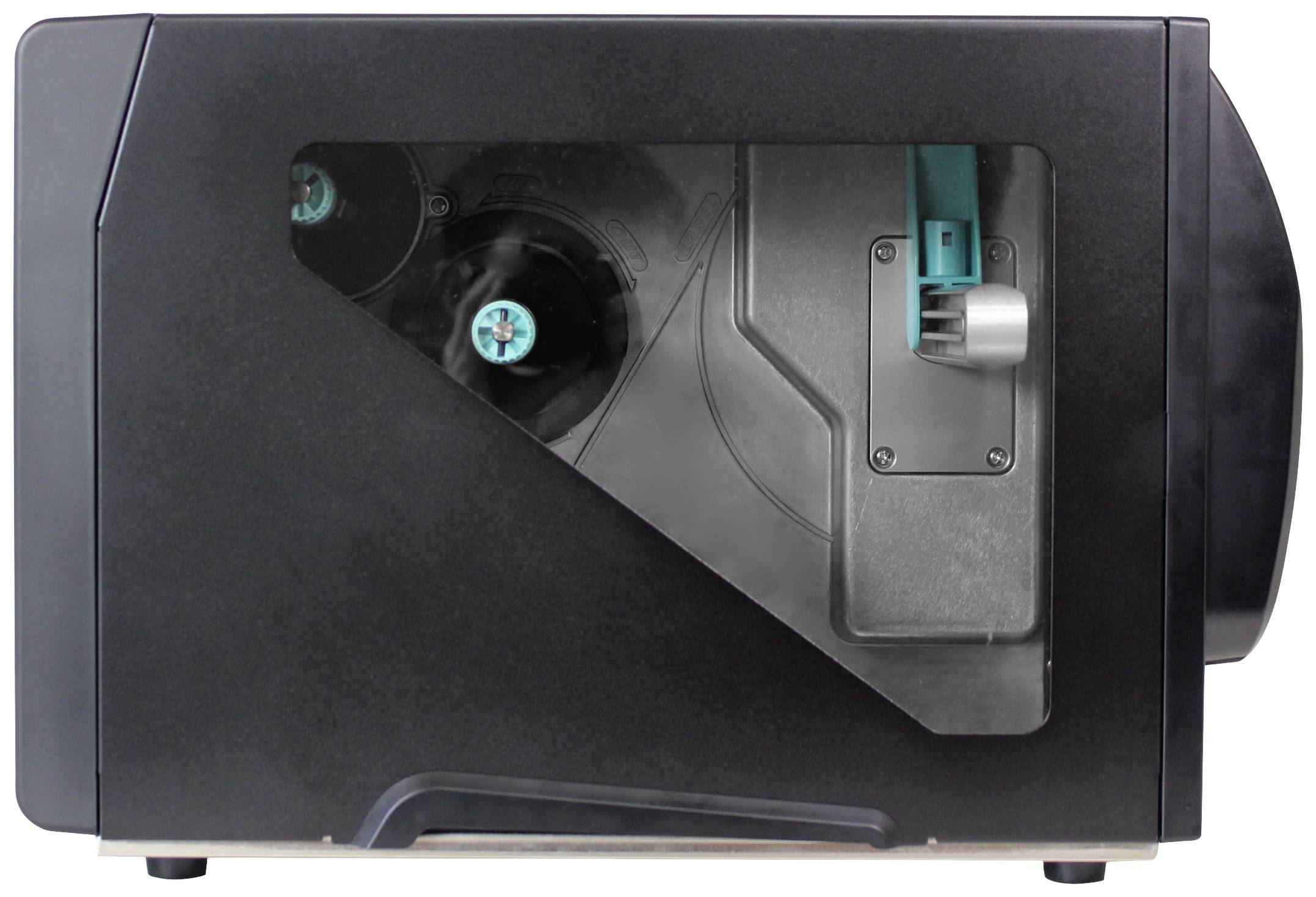

Black device with a transparent cover, revealing internal roller mechanism and green details.

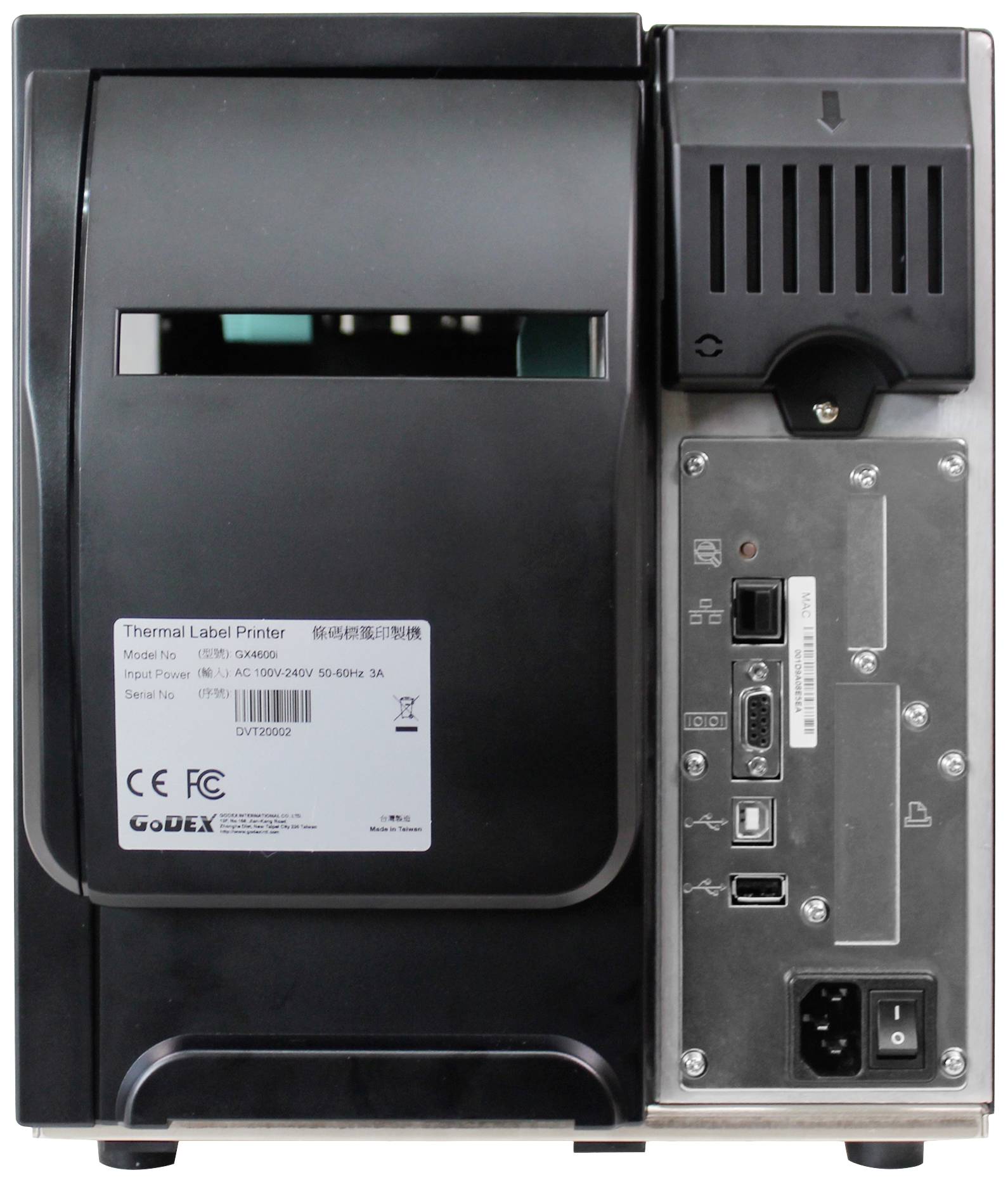

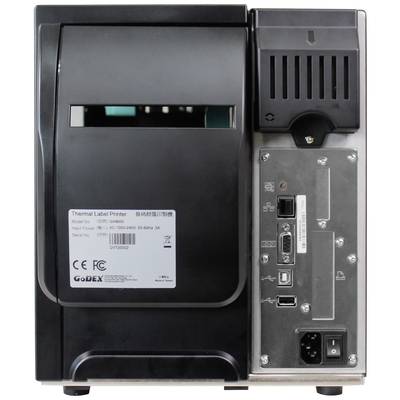

Thermal printer with network connection, USB and serial ports on the right side. Label with model and technical specifications on the front.

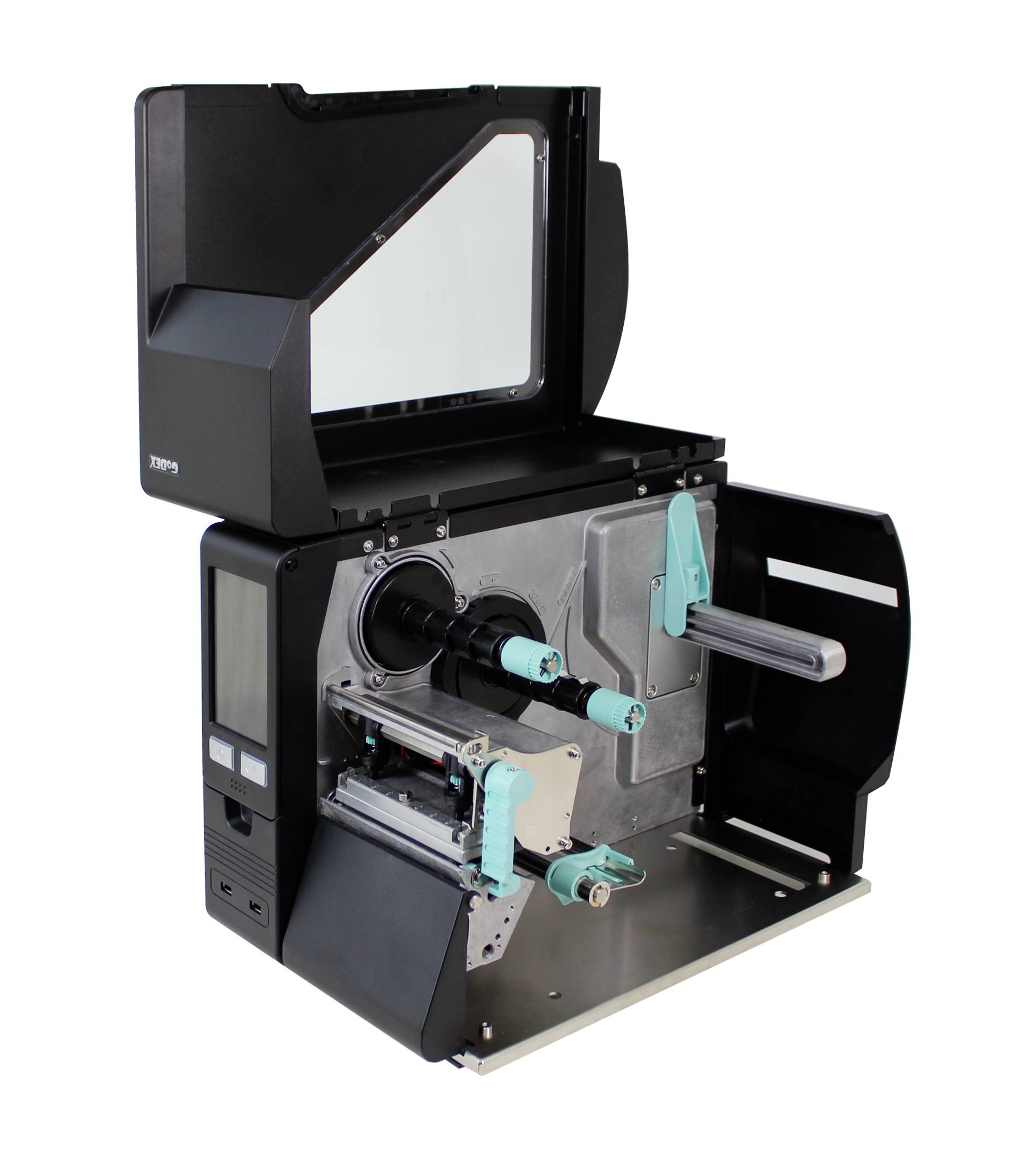

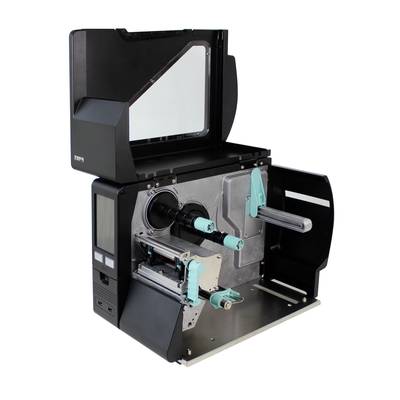

Label printer with open casing, showing internal rollers and mechanisms. Used for industrial label printing.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,065.00 / piece)

€ 1,065.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

GX4200i label printer

4" TT industrial printer with touch display
Robust, powerful industrial printer
Standard with Ethernet, USB 2.0 and 3 x USB Host Interface
For even more flexibility and performance
Calibration button on the housing

Technical specifications

Printing method: Thermal transfer / thermal direct
Resolution 203 dpi (8 dots/mm)
Printing speed 16 ips (406.4 mm/s) / 12 ips (304.8 mm/s)
Printing length 4 mm (0.16")** to 4572 mm (180")
Processor 32 Bit RISC CPU
Memory: Printer: 256 MB Flash (128 MB for application); 256 MB SDRAM / 16 GB for display
Interfaces: Serial Port: RS-232 (DB-9); USB Device Port (Type B); 3 USB Host Ports (Type A). 2 front ports, 1 back port; IEEE 802.3 10/100Base-Tx Ethernet print server (RJ-45)
Ink ribbon: Qualities: Wax, wax/resin, resin / length: 450 m (1476") Max. /Width 30 mm (1.18") Min.; 110 mm (4.33") Max. / Roll outer diameter: 76.2 mm (3") / Core inner diameter: 25.4 mm (1")
Control panel: 5" LCD touch screen / supports on-board videos / on-off switch with blue LED backlight / 1 FEED/PAUSE/CANCEL button with two-color LED backlight (green/red) / automatic calibration button on the back

Product type: Label printer

Type: GX4200i

Printing technology: Direct thermal
Thermal transfer

Functions: Printer

Type: B/W

Print resolution: 203 x 203 dpi

Print speed (black/white): 406 mm/s

Interfaces: USB A (USB 2.0)
USB A (Host)
RS232
RJ45

Power supply (LOV): mains-powered

Max. label width: 118 mm

Factory colour: Black

Width: 263 mm

Height: 310 mm

Depth: 465 mm

Dim: (W x H x D) 263 x 310 x 465 mm

Weight: 13.6 kg

Network: Yes

Wi-Fi: No

Suitable for: Label printing

Power supply (details): 100 - 240 V

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3281104 Godex GX4200i Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

User & Safety Instructions

User & Safety Instructions 3281104 Godex GX4200i Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

Warranty Terms

Warranty Terms 3281104 Godex GX4200i Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

Description

Powerful and robust for the most demanding applications
The new GX4000i Series industrial printers offer a variety of high-speed resolutions of up to 8 IPS per second at 600 dpi. They are suitable for use in all environments because of their robustness, the high power output and the very simple use.

This text is machine translated.

Features

Fitted with a 5" LCD touch-screen and 16 GB storage space, the devices offer an intuitive use with an integrated video-assistant instructions. With the video support, the operation of the printer is very simple.
Top speeds are 203 dpi 16 IPS, 300 dpi 12 IPS and 600 dpi 8 IPS per second.
Equipped with 256 MB flash memory, the GX4000i has more than enough storage space for 1000 labels, fonts and/or images; WAS makes the standalone functionality more flexible.
The GX4000i also seamlessly prints large batch files at a high throughput rate.

Scope of delivery

Incl. Mains adaptor and USB cable, Quick Start Guide, test labels and test ink ribbon
