Name: Godex GX4300i Label printer Direct thermal , Thermal transfer 300 x 300 dpi Max. label width: 118 mm USB, RS-232, LAN
Brand: Godex
SKU: 3281105
Availability: BackOrder

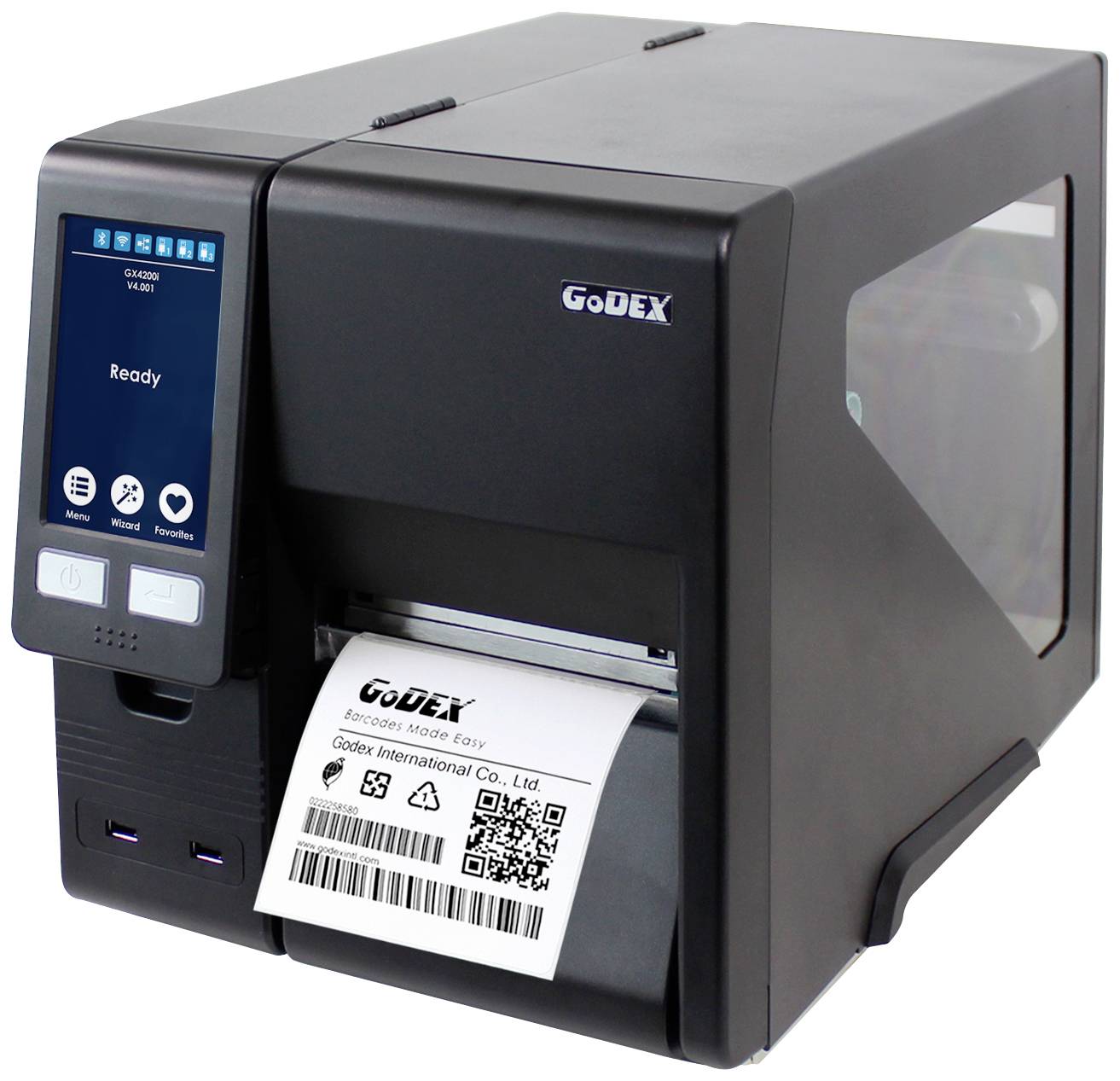

A label printer with a small screen and a button displaying the text 'Ready'. A label is being printed.

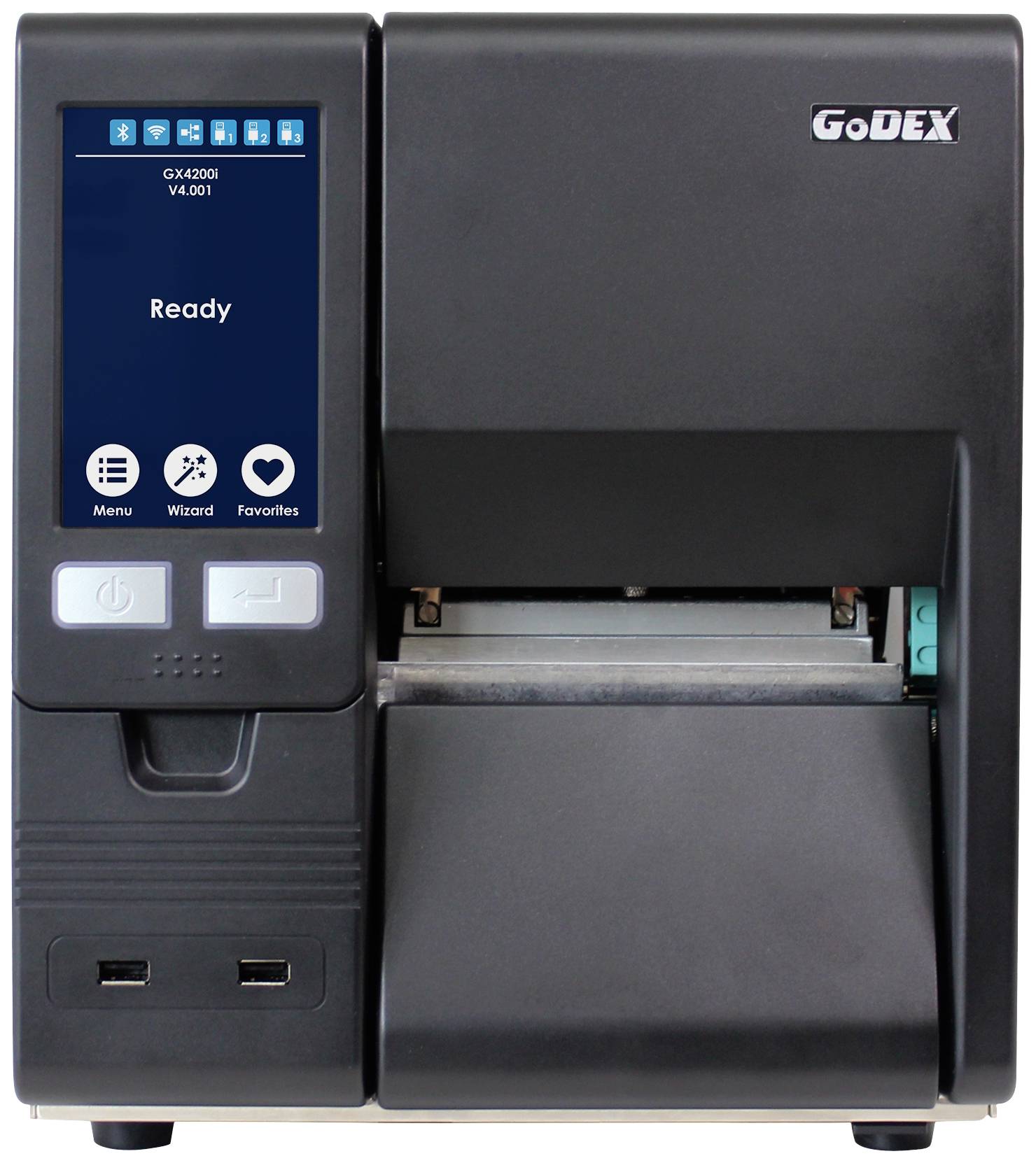

A label printer with a large display and control buttons, showing 'Ready' status. Suitable for industrial printing tasks.

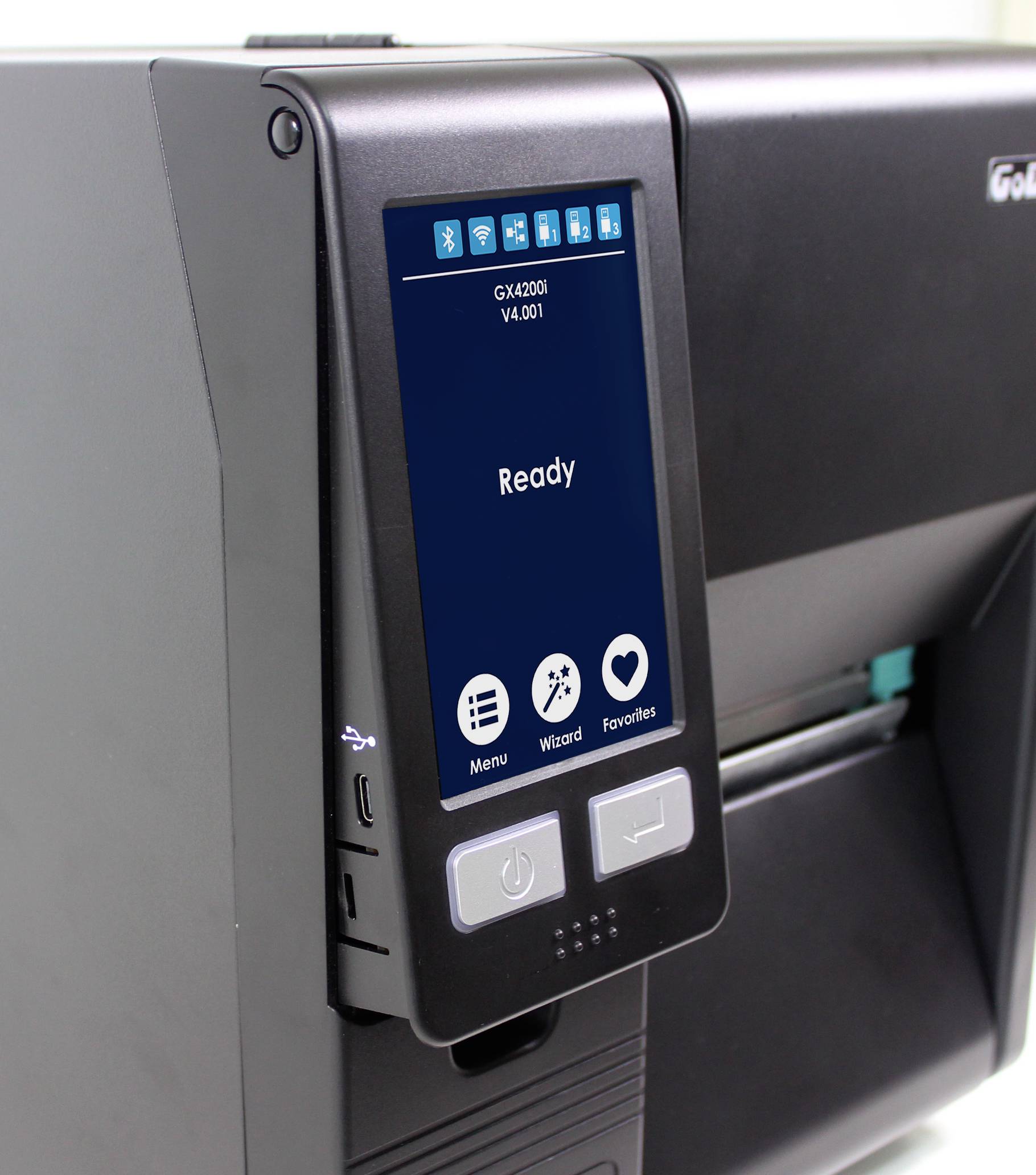

A printer with a display showing 'Ready'. There are icons for Menu, Assistant, and Favourites.

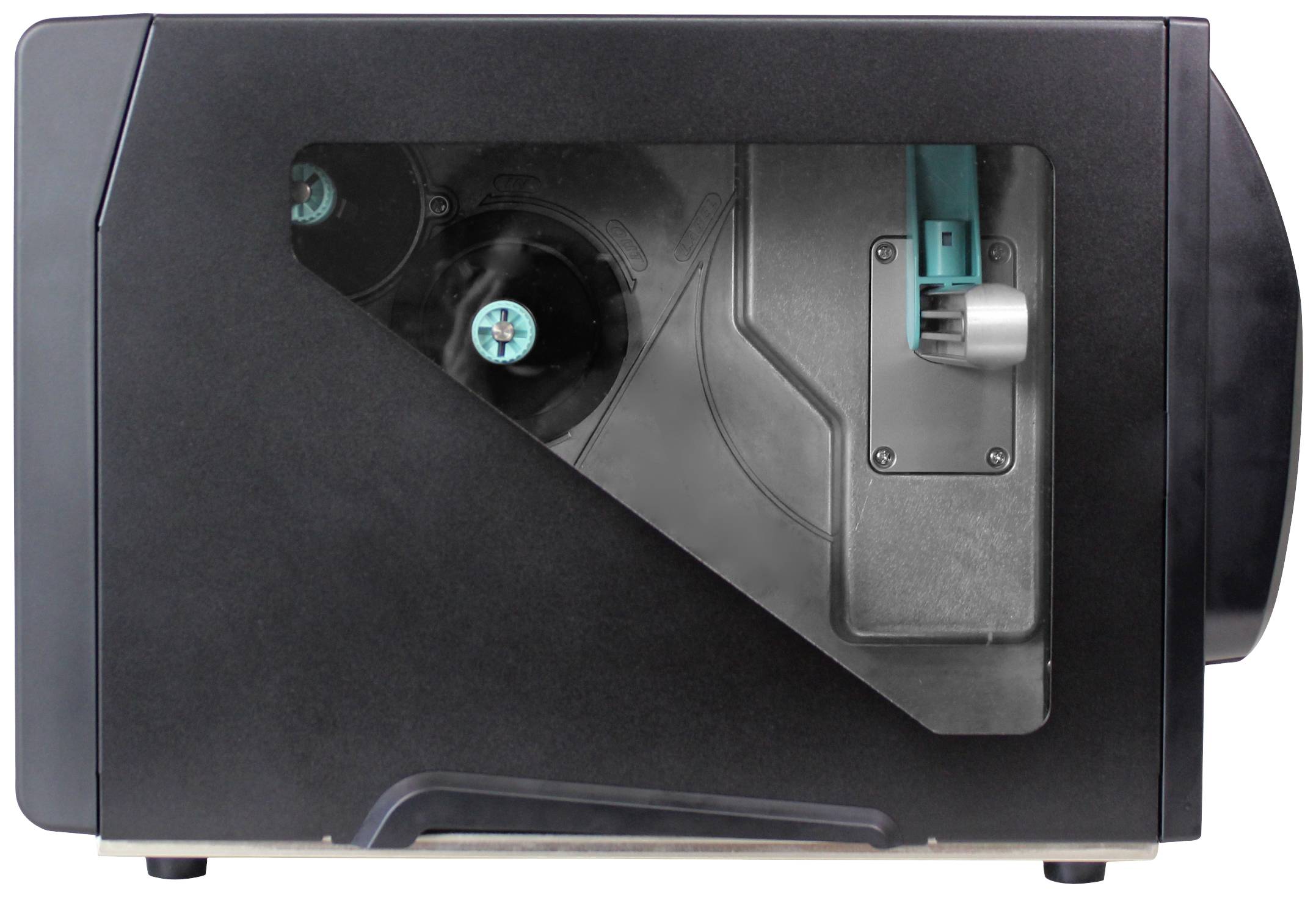

A black card printer with a transparent window reveals parts of its internal mechanism.

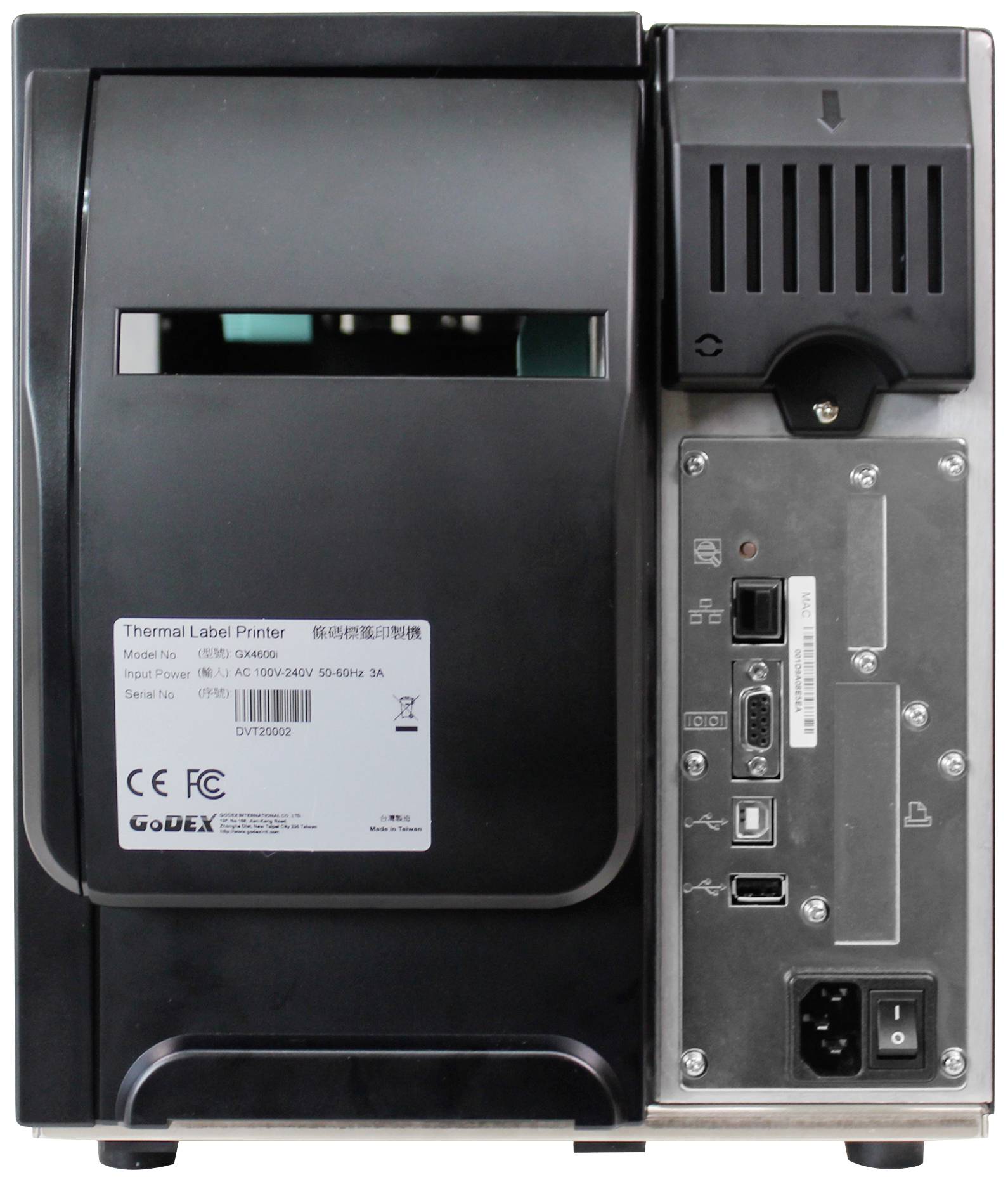

Thermal printer with multiple connection options and network port on the rear. Ideal for label printing in office environments.

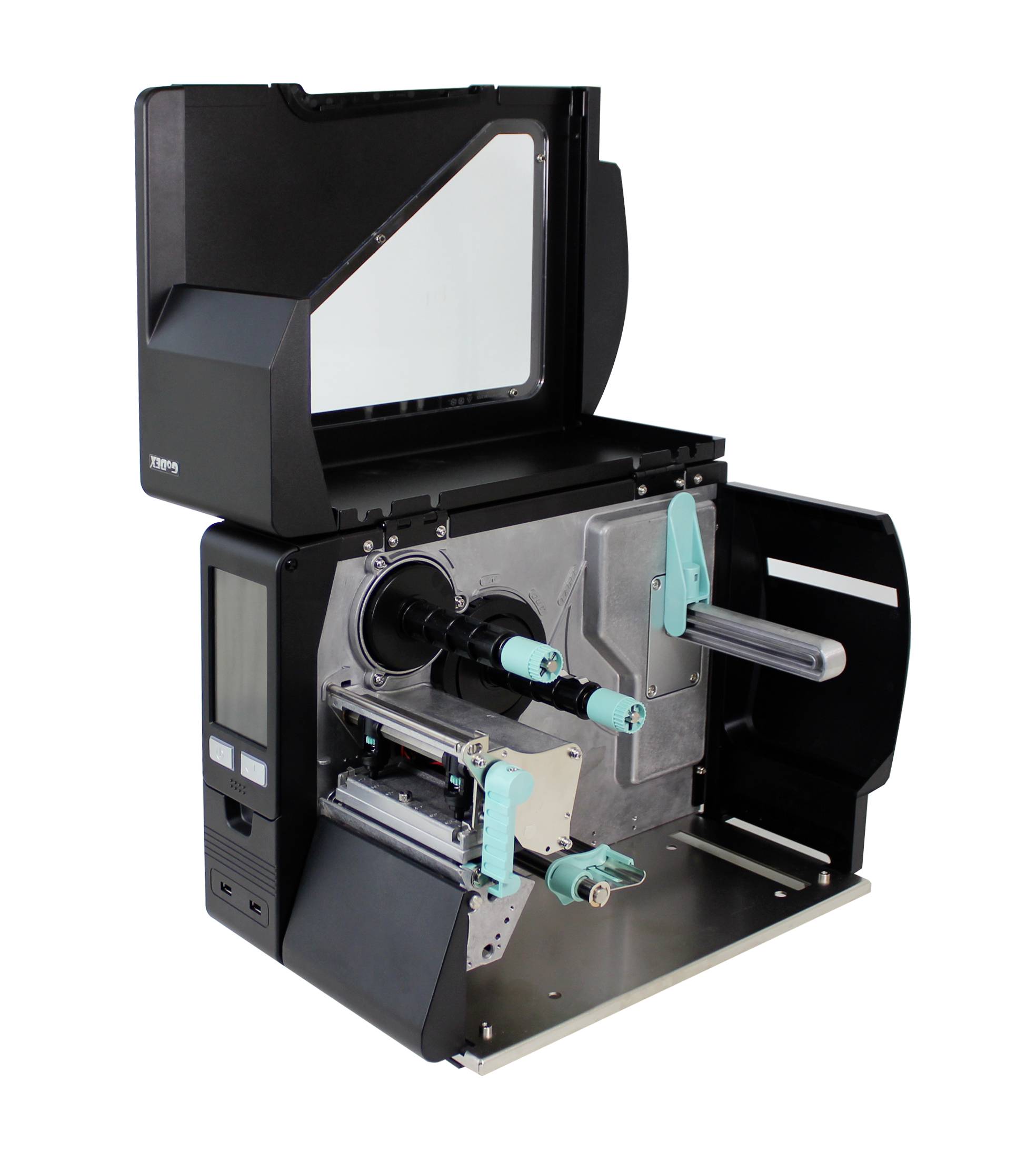

An open industrial label printer with exposed rollers and mountings, suitable for processing large label rolls.

1/6

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,215.00 / piece)

€ 1,215.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

GX4300i label printer

4" TT industrial printer with touch display
Robust, powerful industrial printer
Standard with Ethernet, USB 2.0 and 3 x USB Host Interface
For even more flexibility and performance
Calibration button on the housing

Technical specifications

Printing method: Thermal transfer / thermal direct
Resolution 300 dpi (12 dots/mm)
Printing speed 12 ips (304.8 mm/s)
Printing width 105.6 mm (4.16")
Printing length 4 mm (0.16")** to 2540 mm (100")
Processor 32 Bit RISC CPU
Memory: Printer: 256 MB Flash (128 MB for application); 256 MB SDRAM / 16 GB for display
Interfaces: Serial Port: RS-232 (DB-9); USB Device Port (Type B); 3 USB Host Ports (Type A). 2 front ports, 1 back port; IEEE 802.3 10/100Base-Tx Ethernet print server (RJ-45)
Ink ribbon: Qualities: Wax, wax/resin, resin / length: 450 m (1476") Max. /Width 30 mm (1.18") Min.; 110 mm (4.33") Max. / Roll outer diameter: 76.2 mm (3") / Core inner diameter: 25.4 mm (1")
Control panel: 5" LCD touch screen / supports on-board videos / on-off switch with blue LED backlight / 1 FEED/PAUSE/CANCEL button with two-color LED backlight (green/red) / automatic calibration button on the back

Product type: Label printer

Type: GX4300i

Printing technology: Direct thermal
Thermal transfer

Functions: Printer

Type: B/W

Print resolution: 300 x 300 dpi

Print speed (black/white): 304.8 mm/s

Interfaces: USB A (USB 2.0)
USB A (Host)
RS232
RJ45

Power supply (LOV): mains-powered

Max. label width: 118 mm

Factory colour: Black

Width: 263 mm

Height: 310 mm

Depth: 465 mm

Dim: (W x H x D) 263 x 310 x 465 mm

Weight: 13.6 kg

Network: Yes

Wi-Fi: No

Suitable for: Label printing

Power supply (details): 100 - 240 V

UKCA: yes

Compliance & Certifications

Certified by EU Garan

Documents & Downloads

Datasheet

Datasheet 3281105 Godex GX4300i Label printer Direct thermal , Thermal transfer 300 x 300 dpi Max. label width: 118 mm USB, RS-232, LAN

User & Safety Instructions

User & Safety Instructions 3281105 Godex GX4300i Label printer Direct thermal , Thermal transfer 300 x 300 dpi Max. label width: 118 mm USB, RS-232, LAN

Warranty Terms

Warranty Terms 3281105 Godex GX4300i Label printer Direct thermal , Thermal transfer 300 x 300 dpi Max. label width: 118 mm USB, RS-232, LAN

Description

Powerful and robust for the most demanding applications
The new GX4000i Series industrial printers offer a variety of high-speed resolutions of up to 8 IPS per second at 600 dpi. They are suitable for use in all environments because of their robustness, the high power output and the very simple use.

This text is machine translated.

Features

Fitted with a 5" LCD touch-screen and 16 GB storage space, the devices offer an intuitive use with an integrated video-assistant instructions. With the video support, the operation of the printer is very simple.
Top speeds are 203 dpi 16 IPS, 300 dpi 12 IPS and 600 dpi 8 IPS per second.
Equipped with 256 MB flash memory, the GX4000i has more than enough storage space for 1000 labels, fonts and/or images; WAS makes the standalone functionality more flexible.
The GX4000i also seamlessly prints large batch files at a high throughput rate.

Scope of delivery

Incl. Mains adaptor and USB cable, Quick Start Guide, test labels and test ink ribbon

Description

Features

Fitted with a 5" LCD touch-screen and 16 GB storage space, the devices offer an intuitive use with an integrated video-assistant instructions. With the video support, the operation of the printer is very simple.
Top speeds are 203 dpi 16 IPS, 300 dpi 12 IPS and 600 dpi 8 IPS per second.
Equipped with 256 MB flash memory, the GX4000i has more than enough storage space for 1000 labels, fonts and/or images; WAS makes the standalone functionality more flexible.
The GX4000i also seamlessly prints large batch files at a high throughput rate.
