Buy Godex ZX420i+ Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

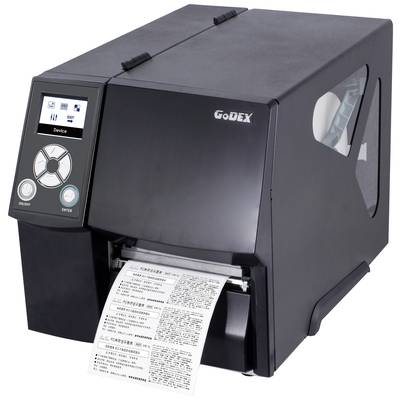

A black label printer is currently printing a label with multiple lines of text. A display is located on the front of the device.

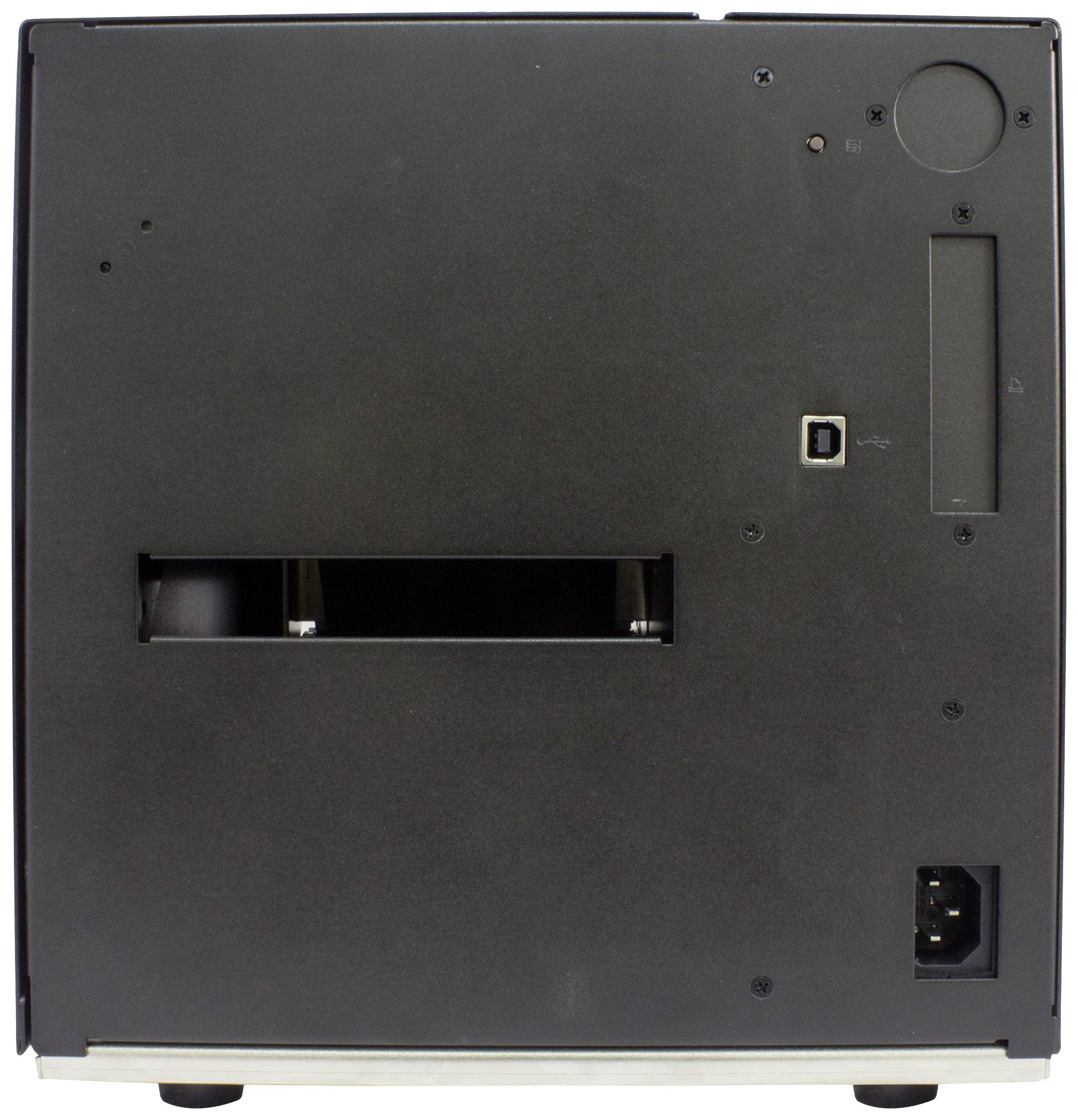

Rear view of a black electronic device with openings and ports on the side, likely for cables or connection interfaces.

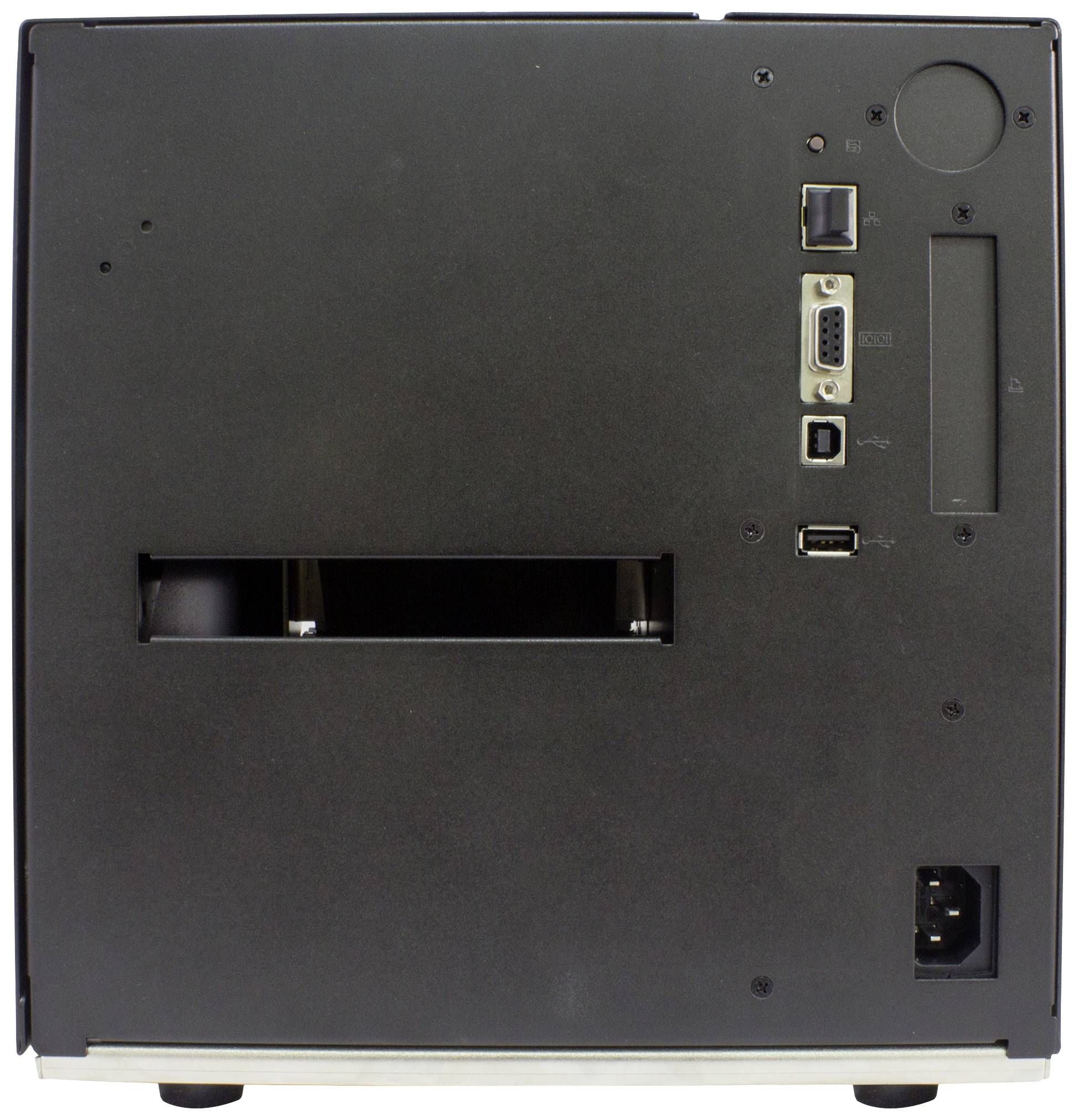

Back of an electronic device with connections for VGA, USB and power supply; ventilation slots visible.

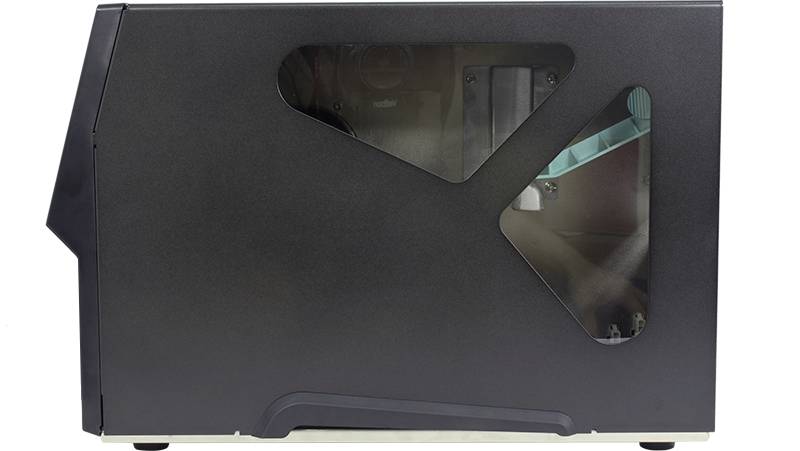

Black computer case with side windows that partially reveal the internal hardware.

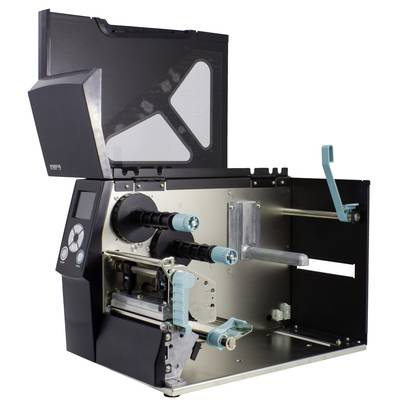

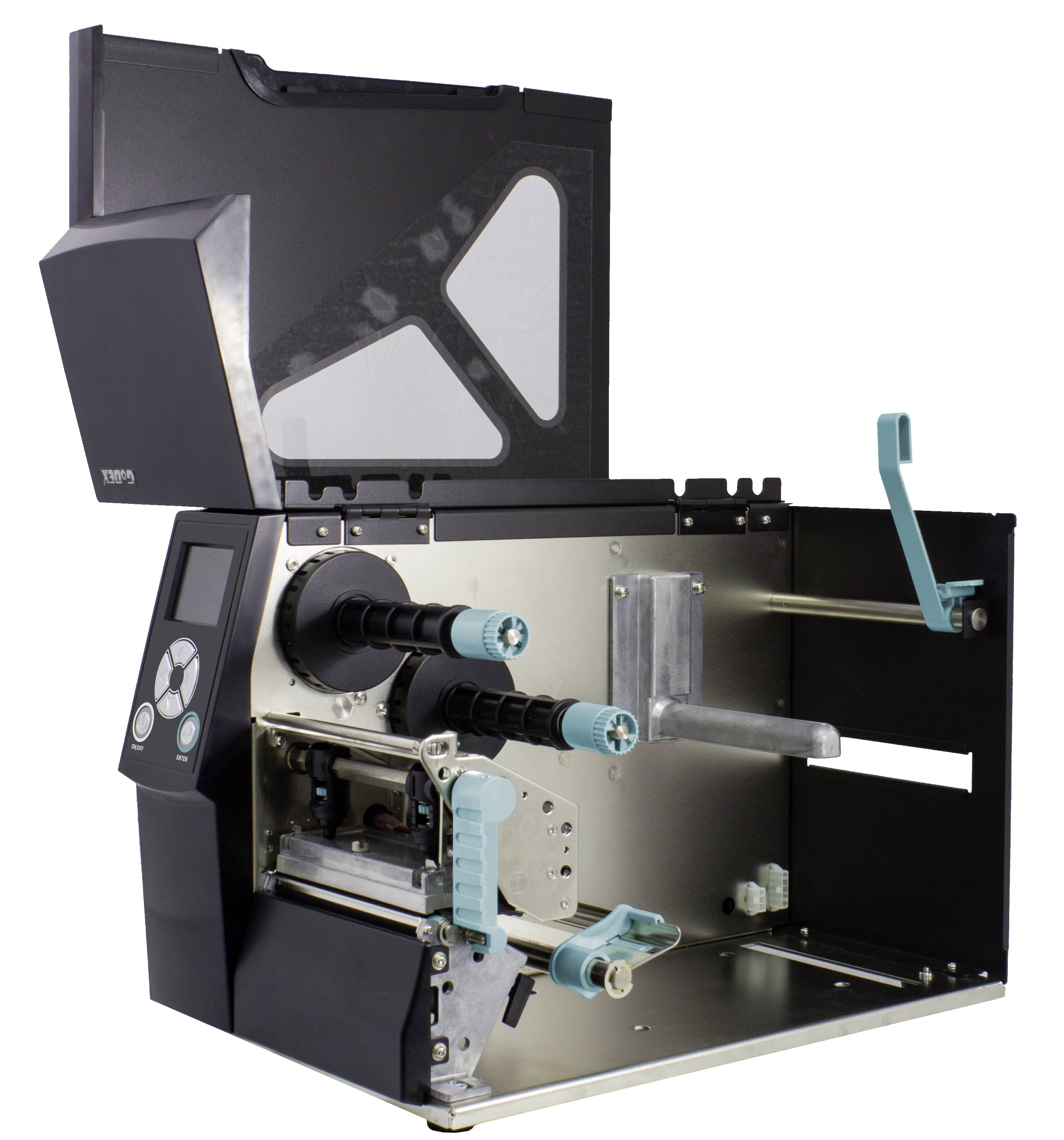

An open label printer displays rollers and levers, ready for material to be loaded.

1/5

Datasheet (PDF)

Dispatches on Tue, 22 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 567.23 / piece)

€ 567.23

plus VAT.

Report legal concerns

ZX420i+ label printer

Highlights & Details

4" TT printer
Compact and powerful industrial printer
Standard with Ethernet, USB 2.0 and USB host interface
For even more flexibility and performance
Calibration button on the housing

Technical specifications

Printing method: Thermal transfer / thermal direct
Resolution:203 dpi (12 pixels/mm)
Print speed: Up to 6 IPS (152 mm/s)
Printing width 108 mm (4.25")
Print length: Min. 3 mm (0.12")**; Max . 7100 mm (279.53")
Processor 32 Bit RISC CPU
Flash 128 MB SDRAM 128 MB
Ink ribbon: Length Max. 450 m (1476') • Width min. 30 mm (1.18”) – Max. 110 mm (4.33” ) • Diameter 76.2 mm (4.33” ) • Core diameter 25.4 mm (1”)
Control panel: Coloured TFT LCD with navigation button • On/Standby button with green LED backlight

Product type: Label printer

Type: ZX420i+

Printing technology: Direct thermal
Thermal transfer

Functions: Printer

Type: B/W

Print resolution: 203 x 203 dpi

Print speed (black/white): 152 mm/s

Interfaces: USB A (USB 2.0)
USB A (Host)
RS232
RJ45

Max. label width: 118 mm

Factory colour: Black

Width: 260 mm

Height: 274 mm

Depth: 403 mm

Dim: (W x H x D) 260 x 274 x 403 mm

Weight: 10.8 kg

Network: Yes

Wi-Fi: No

Suitable for: Label printing

Power supply (details): 100 - 240 V

Documents & Downloads

Datasheet

Datasheet 3269710 Godex ZX420i+ Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

User & Safety Instructions

User & Safety Instructions 3269710 Godex ZX420i+ Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

Warranty Terms

Warranty Terms 3269710 Godex ZX420i+ Label printer Direct thermal , Thermal transfer 203 x 203 dpi Max. label width: 118 mm USB, RS-232, LAN

Description

Power & precision in a compact design
Small in size and strong in power. Thanks to improved flash and SDRAM, the ZX400i+ series can withstand even more difficult printing conditions.
