Name: Gossen Metrawatt EM2389 U2389-V039 Electricity meter (3-phase) incl. converter jack 5 A MID-approved: Yes 1 pc(s)
Brand: Gossen Metrawatt
SKU: 3385477
Availability: InStock

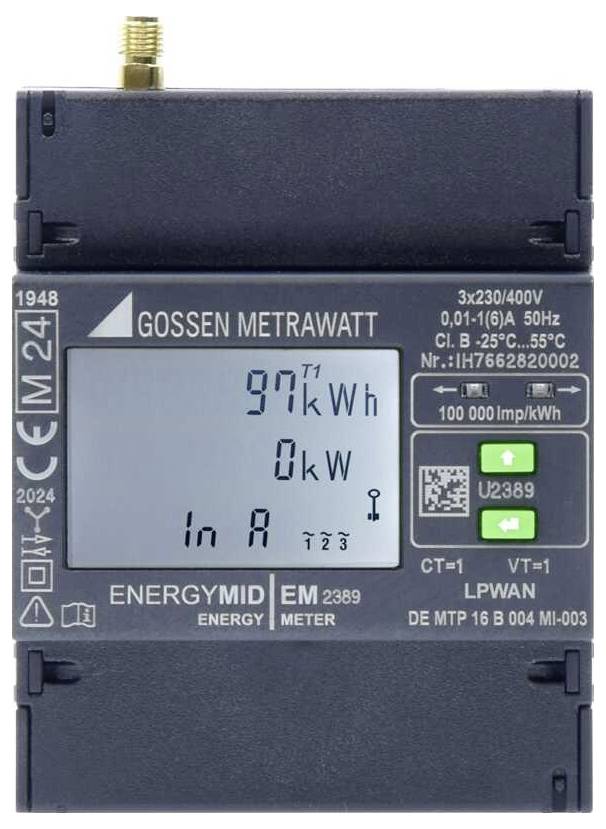

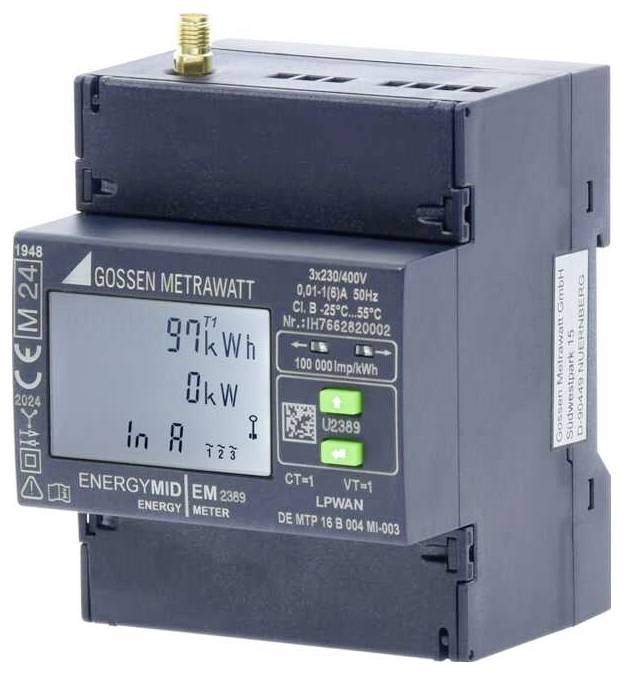

A digital energy metre shows '97 kWh', '0 kW' and 'In A'. The device is labelled 'ENERGYMID' and is manufactured by Gossen Metrawatt.

1/2

Product type

Electricity meter (3-phase) incl. converter jack

Current load

5 A

Calibration

Regenerated/calibrated

Cloud integration

Manufacturer-specific

Special feature

Certified meter reading range (PTB-A 50.7), integrated radio interface based on the LoRaWAN®

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 389.00 / piece)

€ 389.00

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Multi-functional energy meter for 4 conductor networks, 400V with converter connection and support of the LoRaWAN® protocol

Multi-functional energy meter with MID-certification
Integrated radio interface based on the LoRaWAN® standard in the compact 4 TE housing
No battery change necessary by supplying the interface from the measuring voltage
Function update of the interface via FUOTA
4 Quadrant measurement: Energy reference and discharge
Recording of THD for current and voltage as well as neutral CURRENT IN

Technical specifications

Product type: Electricity meter (3-phase) incl. converter jack

Current load: 5 A

Calibration: Regenerated/calibrated

Special feature: Certified meter reading range (PTB-A 50.7), integrated radio interface based on the LoRaWAN®

: Manufacturer-specific

Factory colour: Black

Dim: (L x W x H) 70 x 72 x 70 mm

Weight: 200 g

Starting current: 2 mA

Display: Digital

Recording time (max.) (details): 48 Monate

Operating voltage: 400 V

Recess width: 72 mm

Recess length: 90 mm

Frequency: 50 Hz

Accuracy class: B

MID-approved: Yes

Reading type: Energy consumption

Nominal voltage range: 320 up to 460 V AC

Mains voltage (max.): 460 V AC

Mains voltage (min.): 320 V AC

Width: 72 mm

Height: 70 mm

Length: 70 mm

Current (max.): 6 A

Current (min.): 0.01 A

Current range: 0.01 up to 6 A

Type: EM2389

Effective current range: 5 A

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3385477 Gossen Metrawatt EM2389 U2389-V039 Electricity meter (3-phase) incl. converter jack 5 A MID-approved: Yes 1 pc(s)

Description

The innovative energy counters ENERGYMID EM LPWAN with support of the LoRaWAN® protocol enable simple and secure energy data collection on a new level thanks to the wireless communication technology. Thanks to the radio interface and MID certification, the counters offer the perfect solution for decentralized and legally reliable energy data collection from energy monitoring to consumption accounting – all without any wiring and with ease of installation. Take it easy!
