Buy Green Cell GC-AGM12V120AH-J VRLA AGM 120 Ah 12 V 1 pc(s)

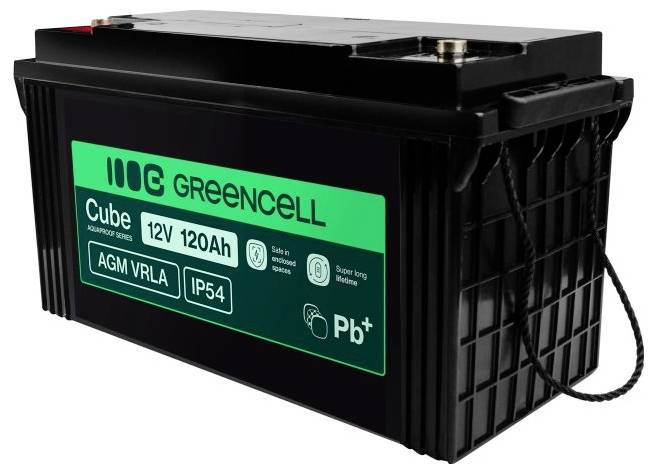

Black Greencell Cube 12V 120Ah AGM VRLA battery with IP54 rating and Pb+ label, shown on a white background.

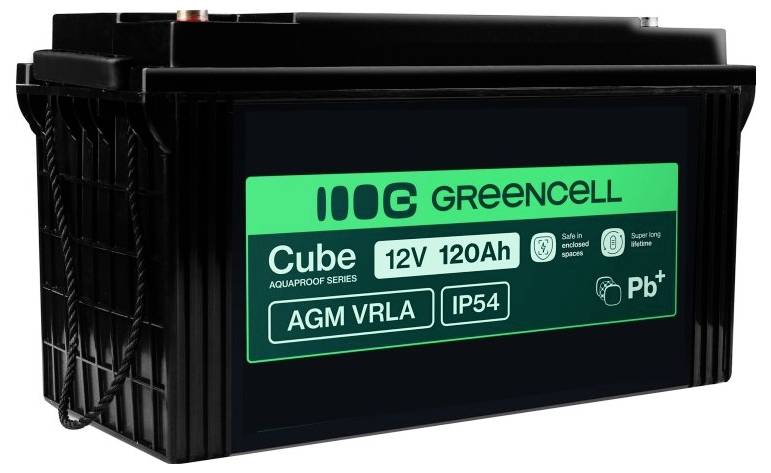

Black Greencell Cube AGM VRLA 12V 120Ah battery with green label, IP54 and Pb+ markings.

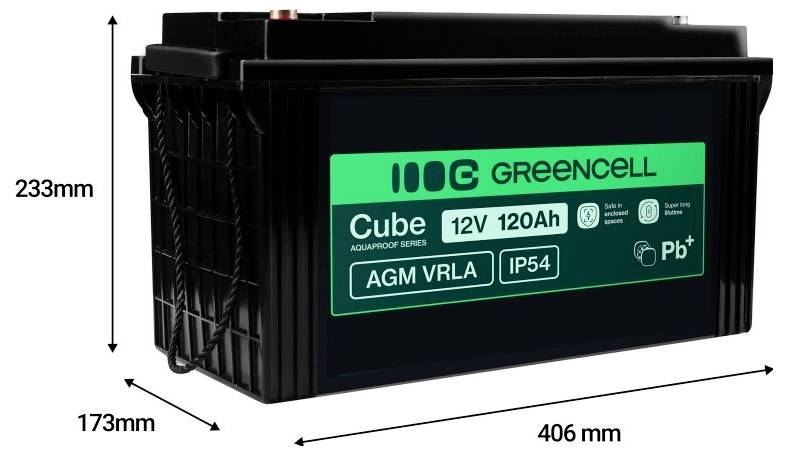

Black Greencell Cube 12V 120Ah AGM VRLA battery shown with dimensions 406 mm x 173 mm x 233 mm.

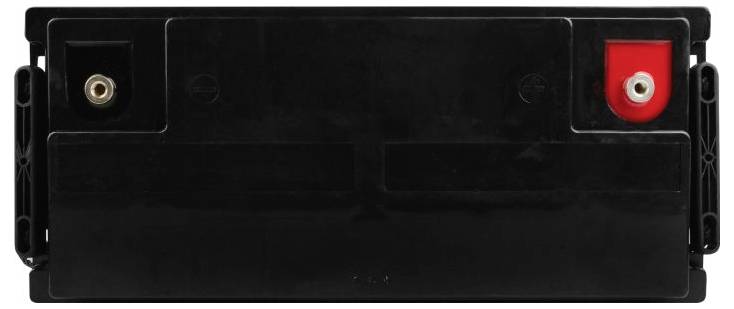

Black rectangular device battery with metal terminal on the left and red positive terminal on the right.

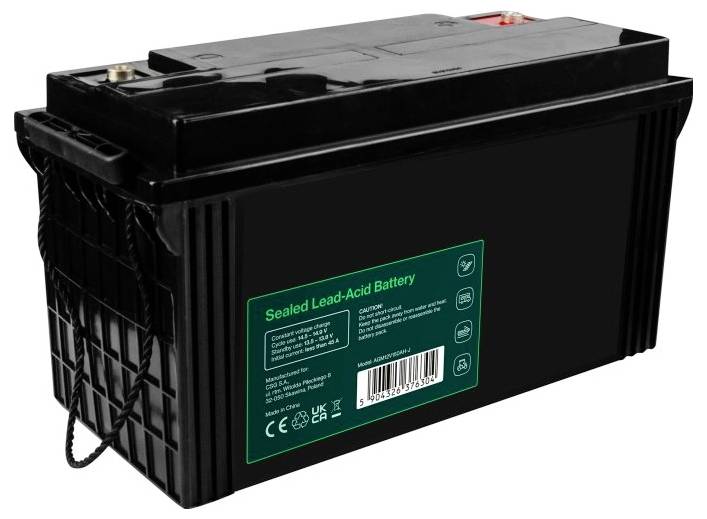

Black sealed lead-acid battery with green label and terminal posts, shown isolated on a white background.

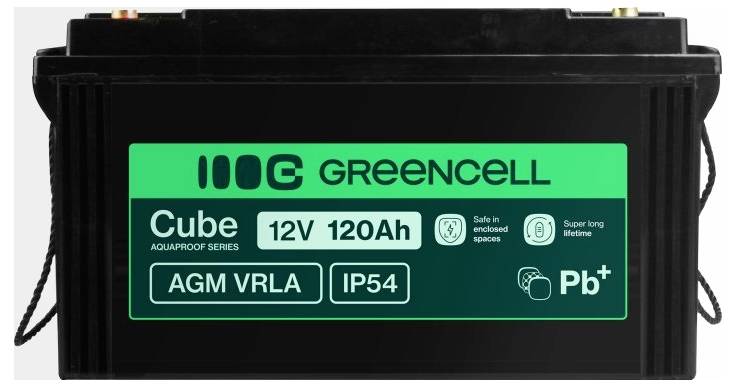

Black Greencell Cube AGM VRLA battery labeled 12V 120Ah, IP54, and Pb+, shown front view with carry straps.

1/6

Datasheet (PDF)

Fast track dispatch on Tue, 22 Sep

1 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 180.66 / piece)

€ 180.66

plus VAT.

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Greencell AGM VRLA 12V 120Ah

Internal resistance: Less or equal to 5 mΩ (at 25 °C)
Intended use: Boats and yachts, solar modules, photovoltaics
Trickle charge 13.5 – 13.8 V (-20 mV/°C)
Cyclic charging: 14.5 – 14.9 V (-30 mV/°C)
Maximum charging current 36 A.
Short circuit current 1990 A

Technical specifications

Housing protection class IP54 (dust and splash-proof)
Life: Up to 5 years in standby/buffer mode or at least 260 full cycles in cyclic operation
Charging voltage (buffer mode): 13.5 V 13.8 VDC
Charging voltage (cyclic use): 14.4 V – 15.0 VDC
Maximum charging current 36.0 A.

Product type: VRLA

Technology: AGM

Voltage: 12 V

Capacity (mAh, Ah): 120 Ah

Height: 220 mm

Weight: 32 kg

Content: 1 pc(s)

Type: GC-AGM12V120AH-J

Rechargeable: Yes

Connector: M8 connector

Voltage: 1.2 V

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773478 Green Cell GC-AGM12V120AH-J VRLA AGM 120 Ah 12 V 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773478 Green Cell GC-AGM12V120AH-J VRLA AGM 120 Ah 12 V 1 pc(s)

Description

The AGM Cube IP54 battery represents a new level of quality for Greencell batteries, in which the safety of the user is emphasized, WAS is certified by the IP54 certification. The number "5" indicates a high level of protection against access to hazardous parts and dust resistance, while the number "4" stands for water tightness and protection against splash water from all directions. This ensures that the AGM battery is maximum safe even for beginners.

This text is machine translated.
