Buy Greisinger GTF 35 Immersion probe -50 up to 400 °C Sensor type Pt100 | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

A dark grey, cylindrical metal rod with a smooth surface and uniform texture.

A dark grey, cylindrical metal rod with a smooth surface and uniform texture.

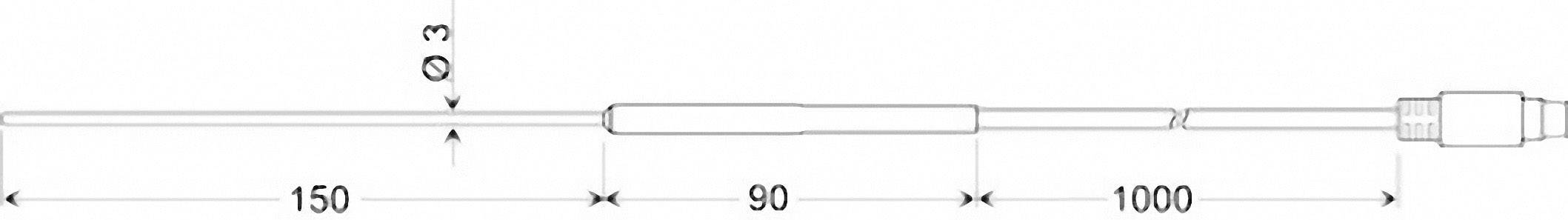

Technical drawing of a cylindrical pin with dimensions: diameter 3 mm, length 150 mm, middle section 90 mm, total length 1000 mm.

1/2

Greisinger

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Tue 10 Nov

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 69.99 / piece)

€ 69.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Greisinger immersion probe for liquids / gases GTF 35-B.

Sensor type Pt100
-50 up to 400 °C
Mini DIN connector

Technical specifications

Temperature sensor Pt100
Measuring range: -50 to +400 °C
Accuracy: DIN class B
With 4-pin Mini-DIN connector

Product type: Immersion probe

Sensor type: Pt100

Pick-up time (details): 10 s

Temperature reading range (min.): -50 °C

Temperature reading range (max.): 400 °C

Dim: (Ø x L) 3 mm x 240 mm

Probe length: 150 mm

: Manufacturer's standards (no certificate)

Connector: Mini DIN connector

Cable length: 1 m

Temperature reading range: -50 up to 400 °C

Temperature accuracy: ± 0,3 °C

Compatible with (details): Suitable for all Greisinger temperature measuring devices with connection for Pt100-sensor with mini DIN plug

Length: 240 mm

(Ø): 3 mm

Connection: Mini-DIN 4-pin

Documents & Downloads

Datasheet

Datasheet 649951 Greisinger GTF 35 Immersion probe -50 up to 400 °C Sensor type Pt100

User & Safety Instructions

User & Safety Instructions 649951 Greisinger GTF 35 Immersion probe -50 up to 400 °C Sensor type Pt100

Description

Immersion probe for liquids and gases with 1 m PVC cable and mini DIN connector. The sensor consists of a VA 4-tube with a diameter of 3 mm with rounded ends.

This text is machine translated.

Features

3 mm thin tube, rust-free
1 m PVC cable
Mini-DIN plug

Description

Immersion probe for liquids and gases with 1 m PVC cable and mini DIN connector. The sensor consists of a VA 4-tube with a diameter of 3 mm with rounded ends.

This text is machine translated.

Features

3 mm thin tube, rust-free
1 m PVC cable
Mini-DIN plug
