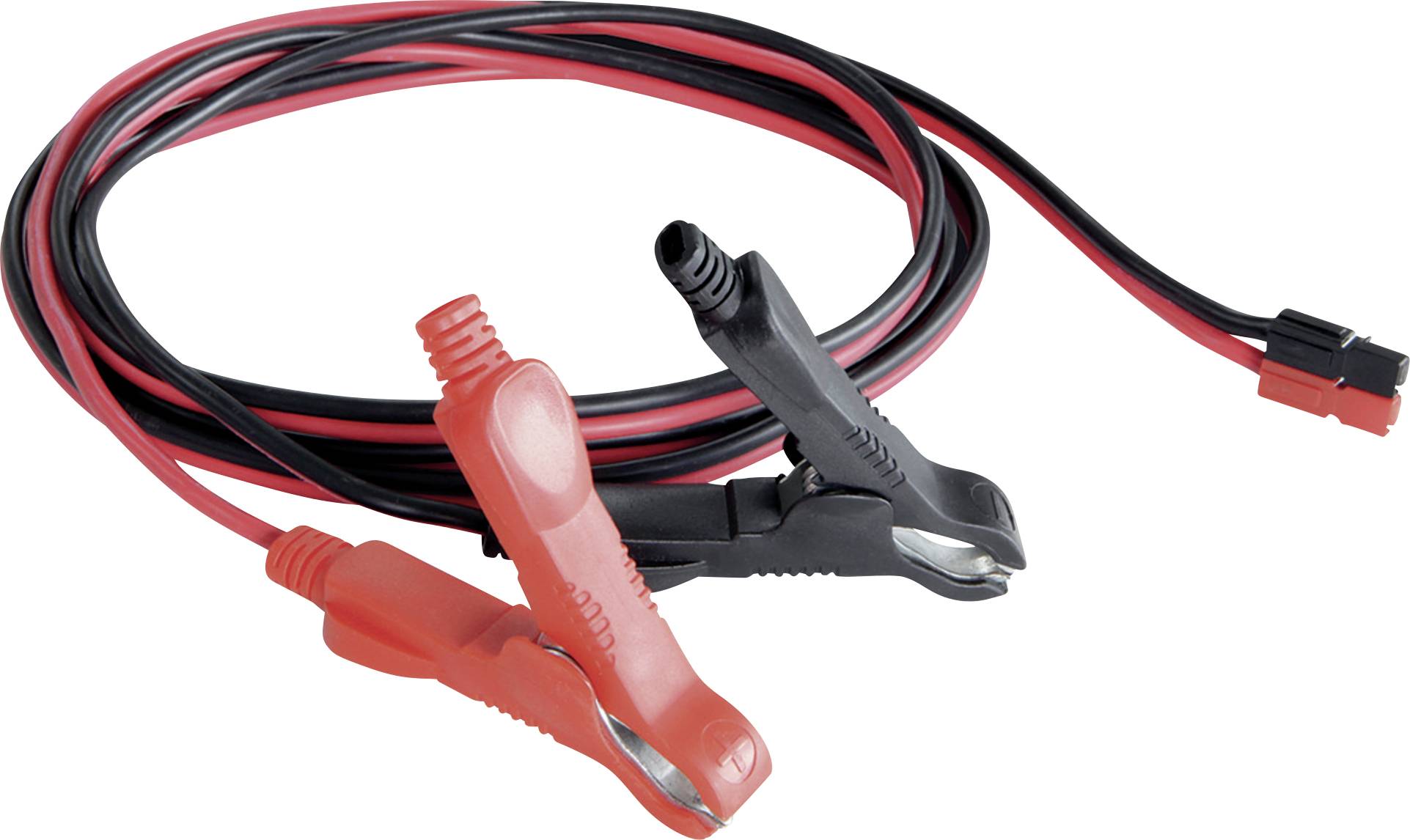

A pair of jump leads with red and black clips, used for jump-starting car batteries.

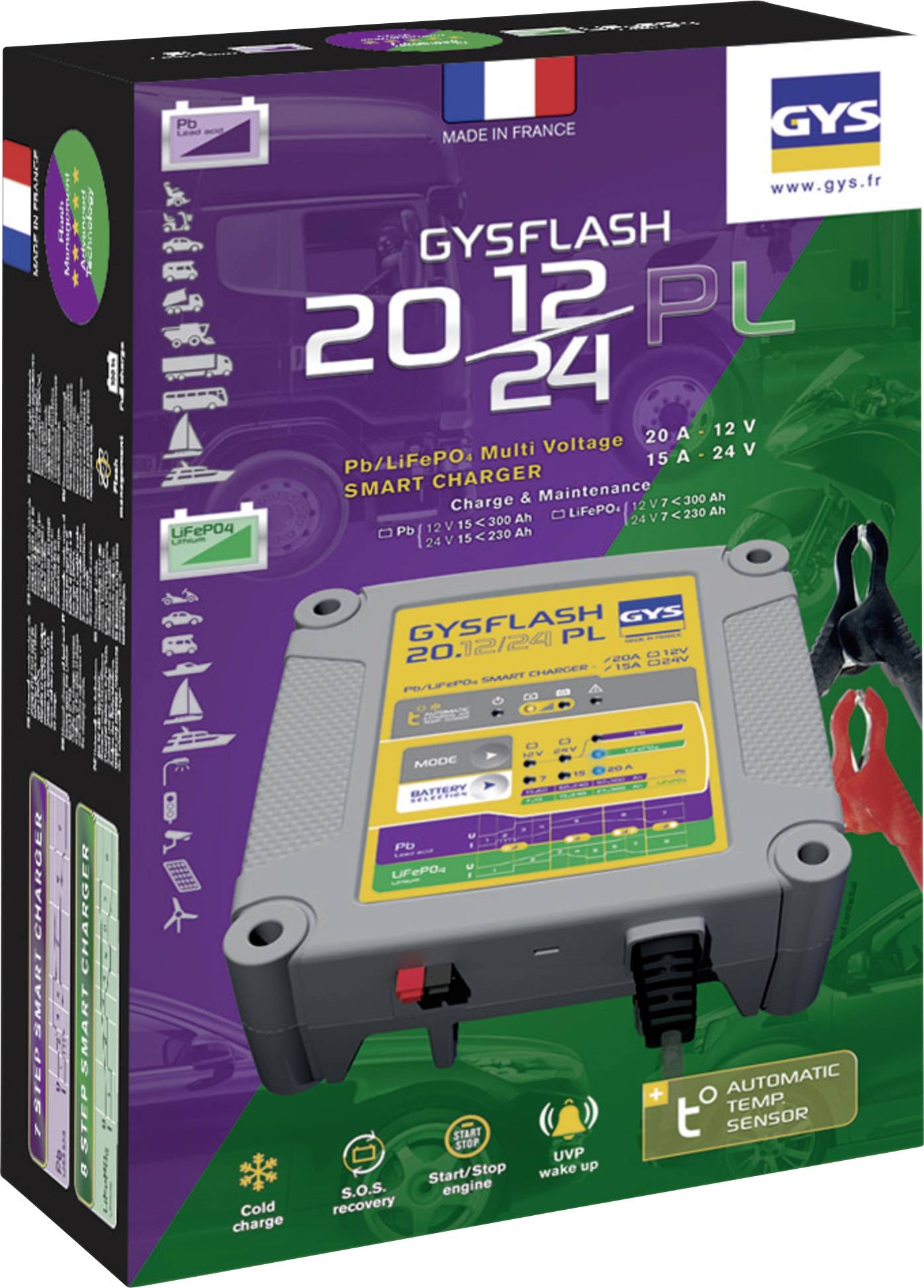

'GYSFLASH 20.12 PL' Battery Charger Packaging. Contains information about voltage, compatibility, and features. Manufactured in France.

1/3

Fast track dispatch on Fri, 11 Sep

4 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 326.89 / piece)

€ 326.89

plus VAT.

Only 4 Piece(s) available

Report legal concerns

Highlights & Details

GYS GYSFLASH 20.12/24 PL 026049 Automatic charger 12 V, 24 V 7 A, 15 A, 20 A

100% automatic charging
Extends the life and performance of lead-acid and lithium batteries
Equipped with a highly sensitive sensor, the GYSFLASH automatically adjusts the Charging parameters depending on the ambient temperature
7-stage lead-acid, 8-stage lithium with additional EBS technology
(Equalizing Battery System) for the perfect compensation of the battery cells
«UVP (low voltage protection)Wake-up function enables a battery protected after deep discharge to be reactivated and the charging to be restarted automatically.
Protection against short-circuit, reverse polarity and overvoltage
Automatic switch-off when the battery is disconnected.
Integrated temperature sensor protects the internal electronics.
User-friendly control panel.

Technical specifications

Charging voltage: 12V and 24V
Battery capacity at 12V: 15 - 300Ah (Pb) / 7 - 300Ah (LiFePO4)
Battery capacity at 24V: 15 - 240Ah (Pb) / 7 - 240Ah (LiFePO4)
Suitable battery types: Lead-acid batteries, lithium iron phosphate
Charging current: At 12V 7/15/20A
Charging current: At 24V 7/15A
Battery charge: From 2V
Duty cycle 20 A: 100% (40°C)
Maximum power: 480W
Characteristic curve: IUoU
Charging stages: 7 (Pb) / 8 (LiFePO4)
Mains connection: 230V - 50/60 Hz
Power cable length 1.9m
Operating temperature: -20 to +50 °C, storage temperature: -20 to +80 °C.
Dimensions 19 x 19 x 7.3 cm
Weight: 1.85kg

Product type: Automatic charger

Dim: (L x W x H) 73 x 190 x 190 mm

Battery voltage: 12 V
24 V

Operating voltage: 230 V / AC

Recommended battery capacity at 12 V max.: 300 Ah

Recommended battery capacity at 12 V min.: 15 Ah

Recommended battery capacity at 24 V (max.): 240 Ah

Recommedned battery capacity at 24 V min.: 7 Ah

Suitable for: VRLA AGM
SLA
PbCa
VRLA AGM
Lead acid

Charging current at 12 V: 7 A
15 A
20 A

Charging current at 24 V: 7 A
15 A

Width: 190 mm

Height: 190 mm

Length: 73 mm

: IP43

Cable length: 2.00 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2251512 GYS GYSFLASH 20.12/24 PL 026049 Automatic charger 12 V, 24 V 7 A, 15 A, 20 A

Information

Information 2251512 GYS GYSFLASH 20.12/24 PL 026049 Automatic charger 12 V, 24 V 7 A, 15 A, 20 A

Conformity certificate

Conformity certificate 2251512 GYS GYSFLASH 20.12/24 PL 026049 Automatic charger 12 V, 24 V 7 A, 15 A, 20 A

Description

"The Gysflash 1.12 PL is a charger for vehicles with 12 V lead-acid and lithium iron phosphate (LiFePO4) batteries. It has 2 intelligent charging characteristics suitable for the current starter battery technologies. The device can remain connected to the battery during hibernation.

This text is machine translated.

Features

""Auto Restart"" function for current consumption with saving of the settings. The seven- and eight-stage charge and maintenance phase without monitoring improves the life and performance of lead-acid and lithium batteries. Can BUS compatibility for motorcycles equipped with 12V socket.
