HARTING 09061486901 Edge connector (pins) Total number of pins 48 No. of rows 3 1 pc(s)

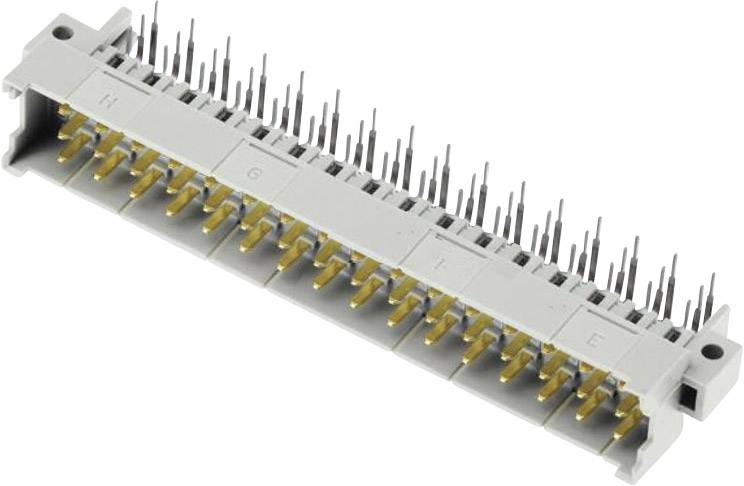

An electrical connector with gold contacts and metallic pins arranged in two rows, mounted on a grey plastic housing.
Image similar
Product type
Edge connector (pins)
Total no. of pins
48
Connector type
Multipole connector, right angle
CS
5.08 mm
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
230 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 9.99 / piece)
€ 9.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

HARTING 09061486901 Edge connector (pins) Total number of pins 48 No. of rows 3 1 pc(s)

  • No. of rows 3
  • Content 1 pc(s)

Our service for you

Technical specifications

  • Performance level 3
Product type

Edge connector (pins)

Total no. of pins

48

Connector type

Multipole connector, right angle

Features

+ sleeve

Connector orientation

Parallel (to the PCB)

No. of rows

3

CS

5.08 mm

Nominal current

6 A

Nominal current - rounded value

6 A

DIN standard

F

Pins per row

16

Connection

Print

Factory colour

Grey

Case material

PBTB according to UL94V0

Manufacturer part #

09061486901

Content

1 pc(s)

Contact material

Copper alloy

Width

93.9 mm

Height

22 mm

Length

14.7 mm

Max. temperature

+125 °C

Min. temperature

-55 °C

Type

09 06 148 6901

Dim

(L x W x H) 14.7 x 93.9 x 22 mm

Configuration

(z+b+d)

Nominal voltage

1550 V

Certification marks

DIN 41612

Number of pins

48

RoHS-compliant

Yes

Contact surface

Gold plated

Type

Angled soldering pins

Connection

-

Documents & Downloads

Datasheet

Datasheet 742420 HARTING 09061486901 Edge connector (pins) Total number of pins 48 No. of rows 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 742420 HARTING 09061486901 Edge connector (pins) Total number of pins 48 No. of rows 3 1 pc(s)
