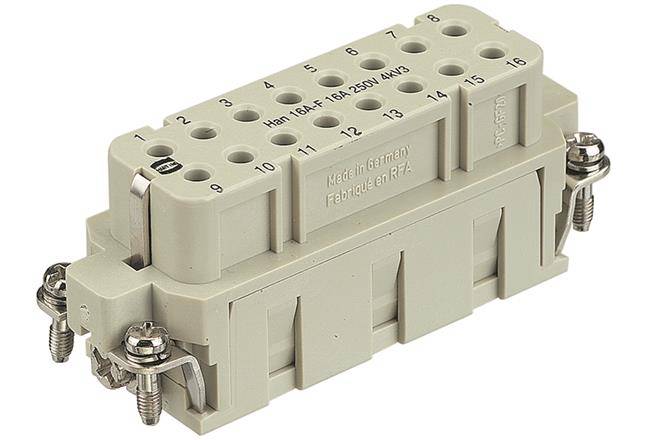

HARTING 09200163101 Socket inset Han® A 16 + PE Crimp 1 pc(s)
EAN:
Part number:
Item no:
Product type
Socket inset
Series
Han® A
Connection
Crimp
Total no. of pins
16 + PE
Core cross section (min.)
0.5 mm²
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 27.72
3
4% = € 1.21
€ 26.51
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 27.72 / piece)
€ 27.72
plus VAT.
Highlights & Details
Industrial connector HAN ® A Series - inserts
Our service for you
Technical specifications
- Product type
Socket inset
- Factory colour
Grey
- Series
Han® A
- Connection
Crimp
- Number of pins
16
- Total no. of pins
16 + PE
- Core cross section (min.)
0.5 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 500
- Size
16 A
- Series
1 - 16
- Rated voltage
400 V
- Test current
10 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Socket insert
- Core connector
0.5 - 4 mm²
- Contamination level
3
- Pins
16 + PE
- Connection
Crimp
- Temperature range
-40 - +125 °C
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 740143 HARTING 09200163101 Socket inset Han® A 16 + PE Crimp 1 pc(s)
Description
Connectors for high environmental requirements; loking clamp ensures high mechanical stability even under vibration or shock loads. Applicable in: Mechanical engineering, wind energy, switches cabinet construction, train technology.
Hints
Consisting of 2 each 16-pin inserts. Suitable counter piece is the order-No. 74 01 64.
Suitable crimp contacts must be ordered separately!
