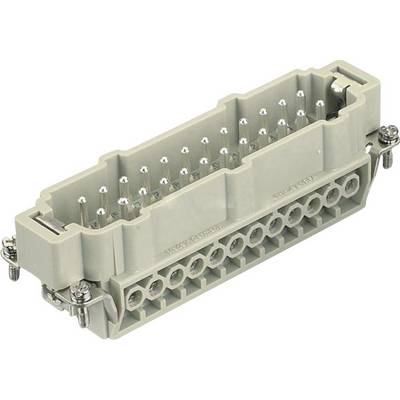

Image similar
HARTING 09330242601 Pin inset Han® E 24 + PE Screws 1 pc(s)
Product type
Pin inset
Series
Han® E
Connection
Screws
Total no. of pins
24 + PE
Core cross section (min.)
0.14 mm²
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 35.99 / piece)
€ 35.99
incl. VAT
14-day return policy included
Highlights & Details
HARTING 09330242601 Pin inset Han® E 24 + PE Screws 1 pc(s)
Our service for you
Technical specifications
- Product type
Pin inset
- Factory colour
Grey
- Series
Han® E
- Connection
Screws
- Number of pins
24
- Total no. of pins
24 + PE
- Core cross section (min.)
0.14 mm²
- Core cross section (max.)
4 mm²
- Mating cycles
≥ 500
- Size
24 B
- Series
1 - 24
- Rated voltage
500 V
- Test current
16 A
- Content
1 pc(s)
- Max. temperature
+125 °C
- Min. temperature
-40 °C
- Leading contact (PE)
Yes
- Type
Pin insert
- Core connector
0.14 - 4 mm²
- Contamination level
3
- Pins
24 + PE
- Connection
Screws
- Temperature range
-40 - +125 °C
Documents & Downloads
Datasheet
Datasheet 741495 HARTING 09330242601 Pin inset Han® E 24 + PE Screws 1 pc(s)
User & Safety Instructions
User & Safety Instructions 741495 HARTING 09330242601 Pin inset Han® E 24 + PE Screws 1 pc(s)
Description
Heavy industrial connectors for the toughest requirements in automotive, machine and plant engineering.
Hints
It is possible to connect a 48-pin plug connector in 48 B size from every 2 24-pin inserts in collaboration with the order no. 74 04 91.
