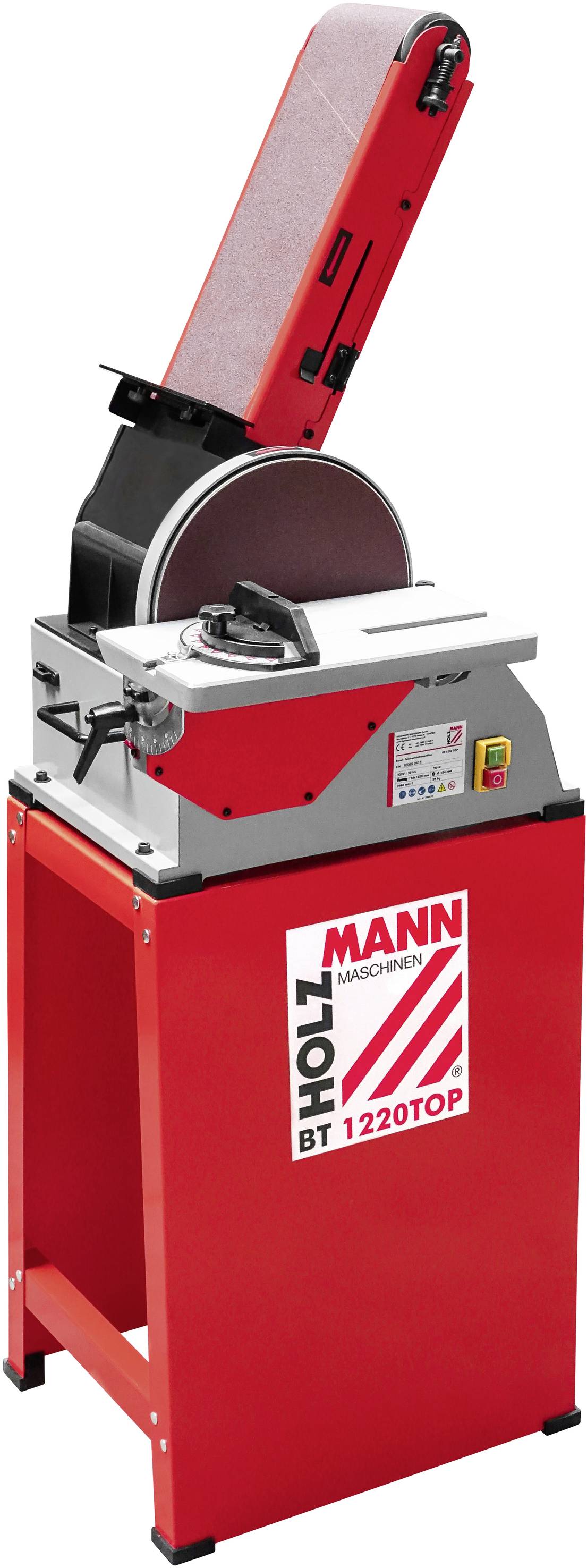

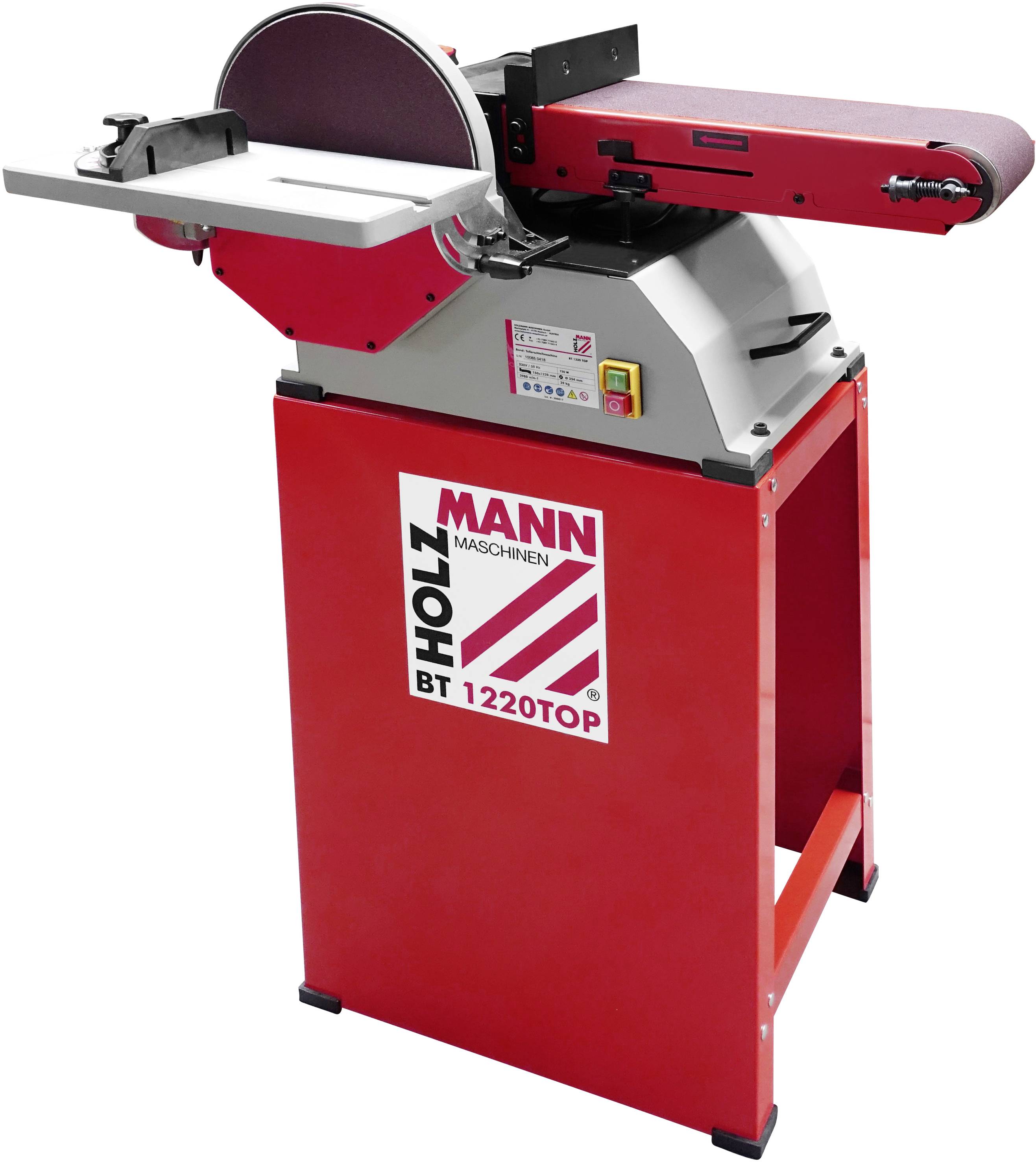

Holzmann Maschinen BT1220TOP_230V BT1220TOP_230V Belt and orbit sander 750 W 254 mm
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 323.53 / piece)
€ 323.53
plus VAT.
14-day return policy included
Highlights & Details
Belt orbit sander

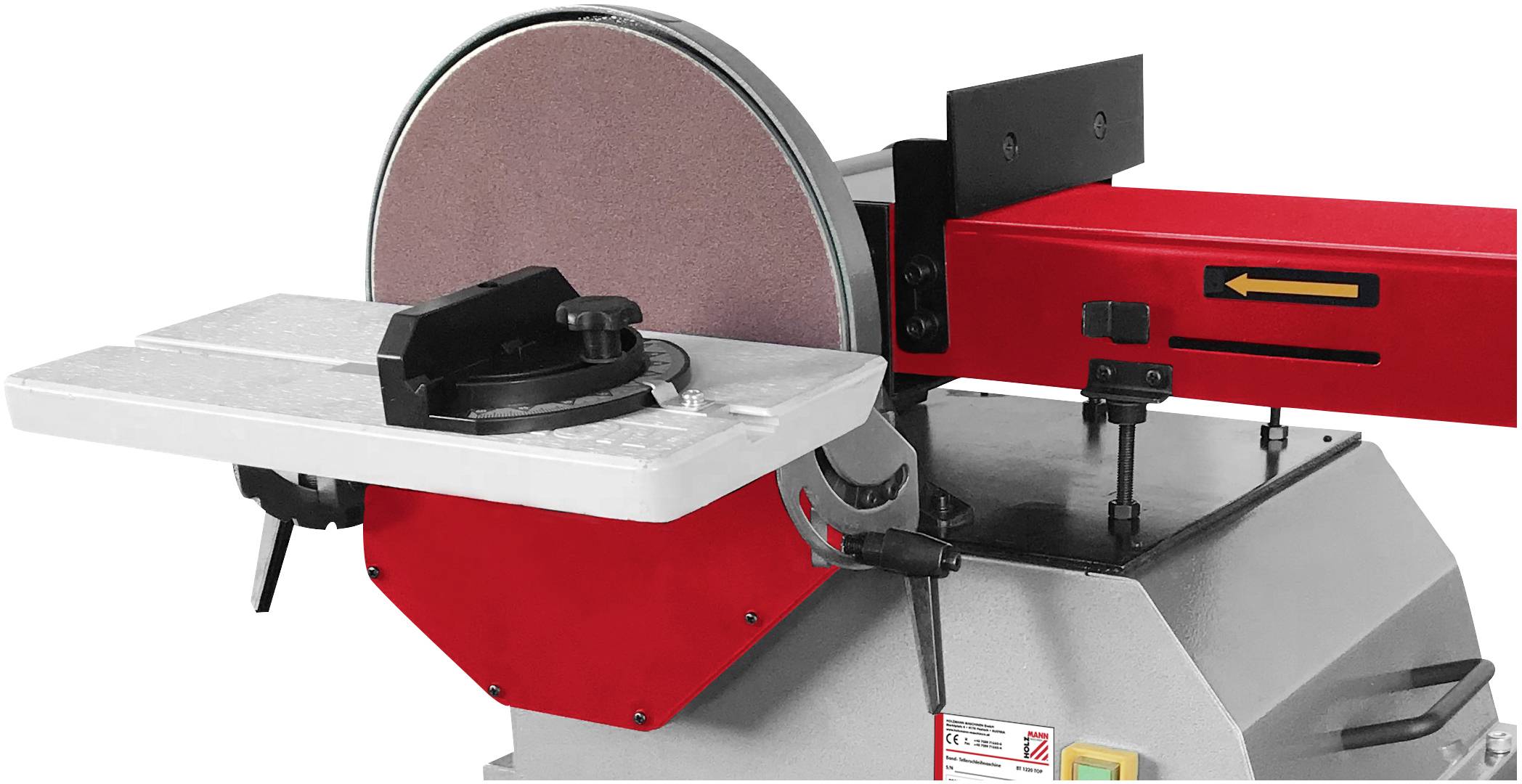

- Swiveling aluminum table (bis45°)Sanding belt unit can be swiveled horizontally and vertically from 0° to 90°Gray iron machine bedMiter stop for precise grinding of anglesThanks to the quick clamping device, a quick, easy sanding belt change is possibleGrind longitudinal and front edges, roundings, miter and right-angled flat surfacesCan be mounted on the supplied base frame or at the tableHeight of orbit sander 930mm
- This text is machine translated.
Technical specifications
- Table size in 332x170 mm
- Installation dimension in mm 740x540x1470
- Sanding belt speed 8m/s.
- Sound power level in dB(A) 93.3
- Sound pressure level in dB(A) 80.3
- Suction connection in mm: 50
- Sanding belt dimensions in mm: 1219x50
- Product type
Belt and orbit sander
750 W
- Grinding disc Ø
254 mm
- Operating voltage
230 V
- Weight
42.5 kg
- Idle speed
2980 U/min
Documents & Downloads
Datasheet
Datasheet 2482798 Holzmann Maschinen BT1220TOP_230V BT1220TOP_230V Belt and orbit sander 750 W 254 mm
User & Safety Instructions
User & Safety Instructions 2482798 Holzmann Maschinen BT1220TOP_230V BT1220TOP_230V Belt and orbit sander 750 W 254 mm
Description
Features
- Constant belt speed and smooth running
- Extraction option
- Cable length 1.8m
Scope of delivery
- 1x sanding belt
- 1x grinding disc
- Miter fence (aluminum;plastic)
- Stop (belt sander)
- Base frame
