Image similar

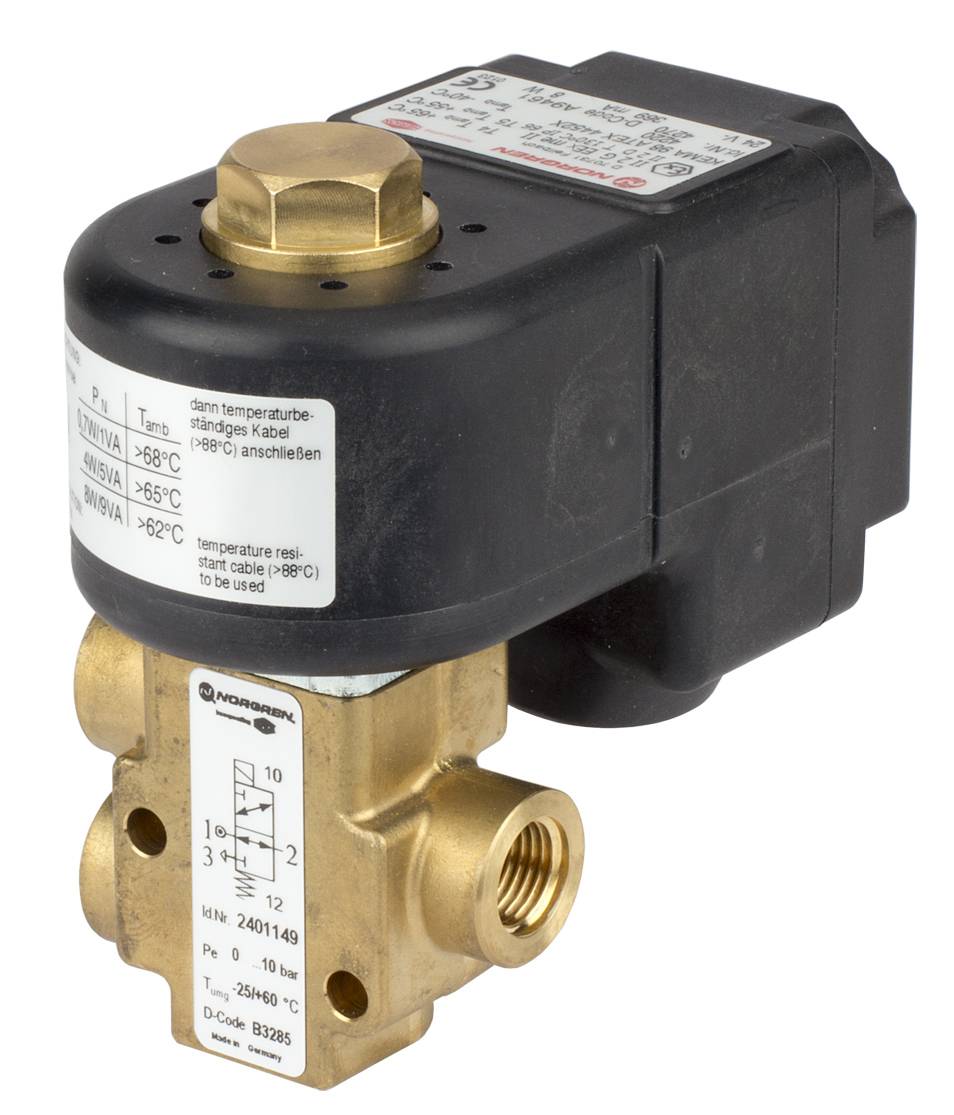

IMI NORGREN Poppet valve 2401103080002400 24 V DC Enclosure material Brass Sealant NBR 1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 435.00 / piece)
€ 435.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Poppet valve
- Operating voltage
24 V DC
- Enclosure material
Brass
- Connection
G 1/4
- Operating temperature
-25 °C (min)
- Min. operating temperature
-25 °C
- Manufacturer part #
2401103080002400
- Sealant
NBR
- Function
3/2-way
- Media temperature (range)
-25 up to +60 °C
- Max. media temperature
+60 °C
- Media temperature (min.)
-25 °C
- Width
43 mm
- Height
102 mm
- Length
55 mm
IP65
- Max. ambient temperature
+60 °C
- Min. ambient temperature
-25 °C
Documents & Downloads
Datasheet
Datasheet 3294072 IMI NORGREN Poppet valve 2401103080002400 24 V DC Enclosure material Brass Sealant NBR 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3294072 IMI NORGREN Poppet valve 2401103080002400 24 V DC Enclosure material Brass Sealant NBR 1 pc(s)
Description
3/2 seat valve
This text is machine translated.
This text is machine translated.
Hints
The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
