IMI NORGREN Servo-operated valve 2623077000000000 Enclosure material Aluminium, Plastic Sealant NBR 1 pc(s)

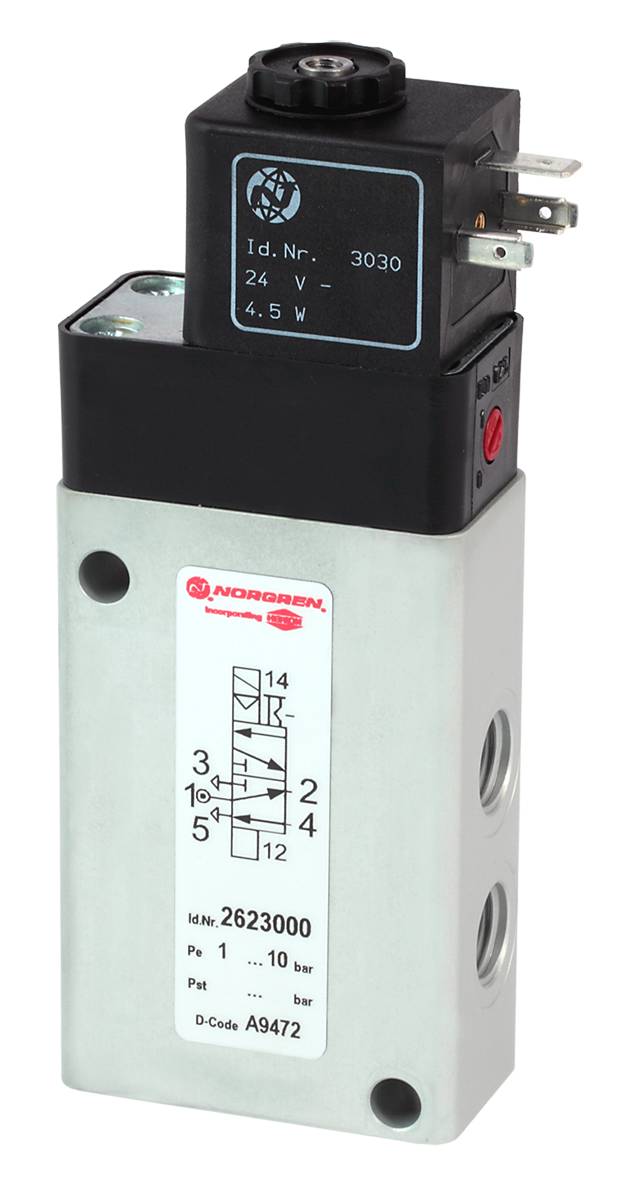

A Norgren valve with circuit diagram and technical specifications on the front panel. Top section shows voltage setting '24 V'.
Image similar
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 16 Nov
912 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 479.00 / piece)
€ 479.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Product type

Servo-operated valve

Enclosure material

Aluminium

Plastic

Connection

G 1/4

Operating temperature

-10 °C (min)

Min. operating temperature

-10 °C

Manufacturer part #

2623077000000000

Sealant

NBR

Medium

Compressed air

Features

NAMUR fitting

Width

55 mm

Height

30 mm

Length

143.5 mm

Max. ambient temperature

+60 °C

Min. ambient temperature

-10 °C

Operating principle

Servo-controlled

(Ø)

6 mm

Documents & Downloads

Datasheet

Datasheet 3294118 IMI NORGREN Servo-operated valve 2623077000000000 Enclosure material Aluminium, Plastic Sealant NBR 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3294118 IMI NORGREN Servo-operated valve 2623077000000000 Enclosure material Aluminium, Plastic Sealant NBR 1 pc(s)

Description

Electro-pneumatically actuated NAMUR valve

This text is machine translated.

Hints

The kv factor indicates the volume flow through a valve, measured in litres/min at 1 bar and at a water temperature between 5 and 30°C. The QNn factor indicates the gas volume flow, measured in litres/min
