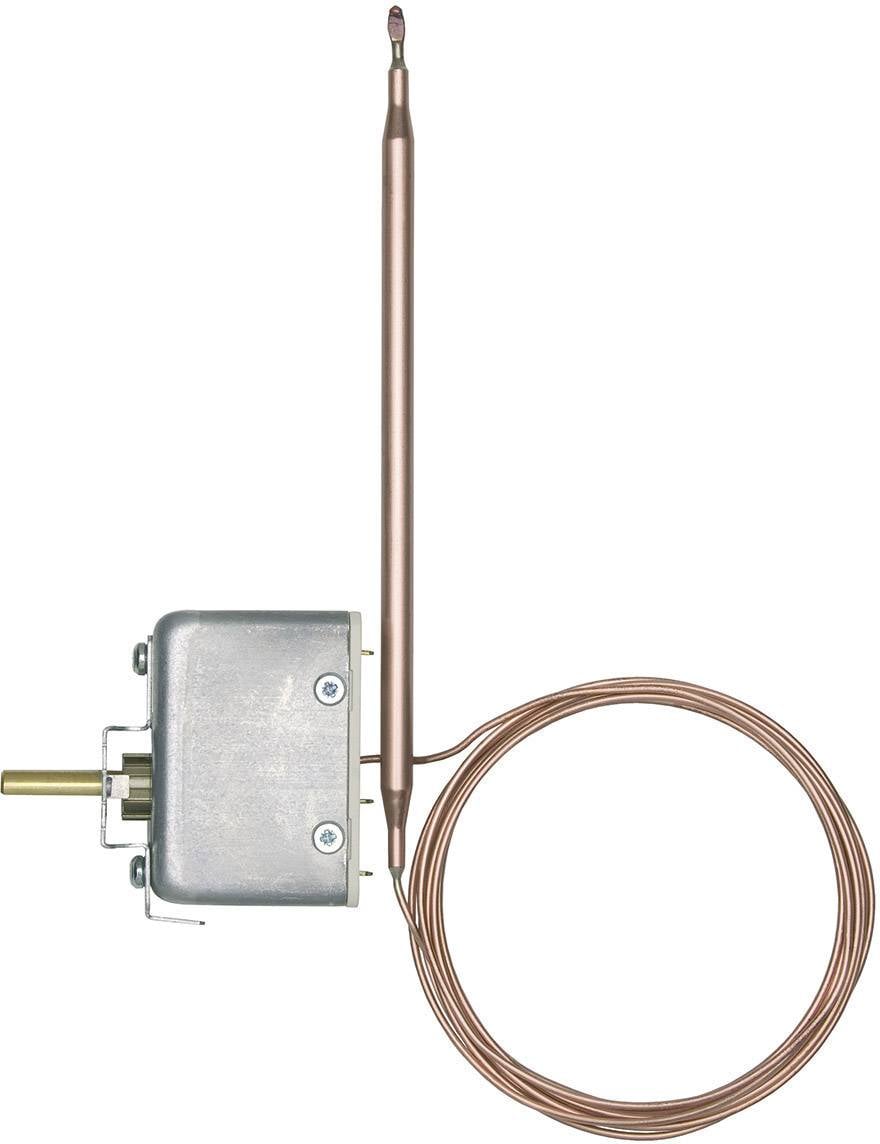

Jumo 60000494 Bang-bang Temperature controller 0 up to 100 °C 16 A relay
EAN:
Part number:
Item no:
Product type
Temperature controller
Thermostat type
Bang-bang
Operating voltage
230 V
Max. temperature reading
100 °C
Outputs (thermostats)
16 A relay
Datasheet (PDF)
Number
Total (€ 151.25 / piece)
€ 151.25
plus VAT.
14-day return policy included
Highlights & Details
JUMO mounted thermostat EM-1 temperature controller (TR), 1-pole
- Available with 1-, 2-, 3- or 4-pin jump switches
- Approved to the latest standards
Technical specifications
- Basic type: JUMO built-in thermostat, type series EM-1 temperature controller (TR), 1-pole
- Adjustment range 0100°C
- Switching difference: 2.5 %
- Transmission line length: 1000mm
- WST.remote line: CU (copper)
- Process connection: Smooth round sensor
- Sensor diameter 6 mm
- Material sensor: CU (copper)
- Switching current: 16A cos=1
- Voltage type: AC
- DIN mark: Yes.
- Product type
Temperature controller
- Type
60000494
- Thermostat type
Bang-bang
- Operating voltage
230 V
- Reading range
0 up to 100 °C
- Max. temperature reading
100 °C
- Min. temperature reading
0 °C
- Outputs (thermostats)
16 A relay
- No. of relay outputs
1
- Manufacturer part #
60000494
- Mounting type
Recess-mount
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1928121 Jumo 60000494 Bang-bang Temperature controller 0 up to 100 °C 16 A relay
User & Safety Instructions
User & Safety Instructions 1928121 Jumo 60000494 Bang-bang Temperature controller 0 up to 100 °C 16 A relay
Description
Thermostats control and monitor thermal processes The devices of the type series EM are available as temperature controller TR, temperature monitor TW, temperature limiter TB, safety temperature monitor STW (STB) and safety temperature limiter STB. The STB is offset
In the event of faults, the monitored system must be in a safe operating state.
Built-in thermostats work according to the principle of liquid expansion; a microswitch serves as an electrical switching element.
