Jumo Flow meter 00744941 1 pc(s)
EAN:
Part number:
Item no:
Product type
Flow meter
Type
406050/000-0032-121-32-58-01-12/000
Case colour
Blue
Material
Plastic
Enclosure material
Plastic
Datasheet (PDF)
Number
Total (€ 743.70 / piece)
€ 743.70
plus VAT.
Technical specifications
- Measuring principle: Ultrasound
- Accuracy: 2% of the measured value
- Measuring dynamics: Up to 1:100
- Nominal pressure PN 16
- Display: LED-status display
- Electrical connection: M12-plug
- Product type
Flow meter
- Type
406050/000-0032-121-32-58-01-12/000
- Case colour
Blue
- Material
Plastic
- Enclosure material
Plastic
- Media temperature (min.)
-20 °C
- Max. media temperature
+80 °C
- Accuracy ±
2 %
IP65/67
- Max. ambient temperature
70 °C
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2973162 Jumo Flow meter 00744941 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2973162 Jumo Flow meter 00744941 1 pc(s)
Description

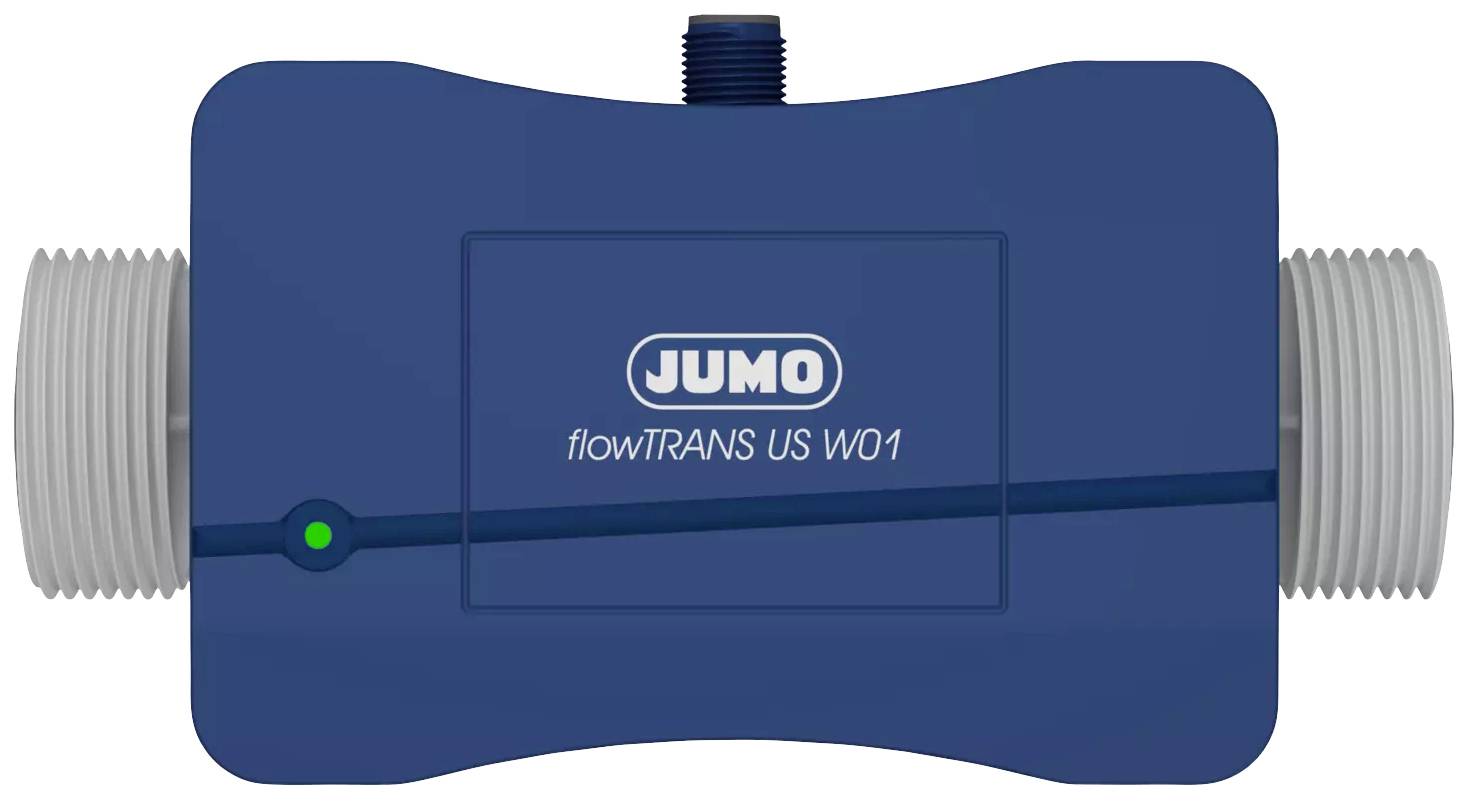

The Jumo flowTRANS US W01 ultrasonic flow meter is based on the measuring principle of the runtime method and measures the flow of conductive and non-conductive liquids. A total of 4 nominal diameters (DN15-DN32) are available. The G external thread including integrated EPDM seal allows a simple installation on the spot together with conventional pipe accessories. Due to the metal-free construction of the device, installations in corrosive environments are also possible. The device measures water-like media reliably and accurately in a temperature range of -20°C....80°C. The device has a current and pulse output in parallel with a fixed scaling, in order to transfer the measured values to a higher-level PLC for example. A LED indicates the operating status by 3 different colors.
