Kaiser Nienhaus 144100 Furohre Champion Wireless tubular motor 868 MHz 60 mm 345 W 50 Nm
EAN:
Part number:
Item no:
Number
Total (€ 184.99 / piece)
€ 184.99
incl. VAT
Only 5 Piece(s) available
Highlights & Details
Wireless tubular motor Kaiser Nienhaus Furohre Champion 868 MHz 50 Nm
- Simply by hand-held transmitter set
- Automatic end-point setting
- Patented No brake
Technical specifications
- Current consumption max. 1.1 A
- Product type
Wireless tubular motor
- Series
Kaiser Nienhaus Furohre 868
- Torque
50 Nm
- Rotational speed
14 U/min
- Motor power
345 W
- Suitable for shutter axle Ø
60 mm
- Limit switched
electrical
- Obstacle detection
Yes
- Operating voltage
230 V AC
- Lead length
2 m
- Width
620 mm
- Weight
3400 g
- Hub
Not required
n.rel.
- Frequency
868 MHz
- Frequency
868 MHz
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1369180 Kaiser Nienhaus 144100 Furohre Champion Wireless tubular motor 868 MHz 60 mm 345 W 50 Nm
Description
The tubular motor Champion Furohre radio with its 50nm traction impresses mainly through its excellent running properties. This includes a particularly quiet running and a extreme pulling power, as well as the obstacle detection and the antifreeze protection. With the integrated 868 Mhz Radio receiver uses this series a very interference-resistant due frequency in the range of small radio systems, resulting in a high reliability is reflected. Ideal are the engines of the series Furohre Radio 868 in combination with the Mediola Smart Home control.
This text is machine translated.
This text is machine translated.
Features
- That can be activated obstacle detection and antifreeze protection

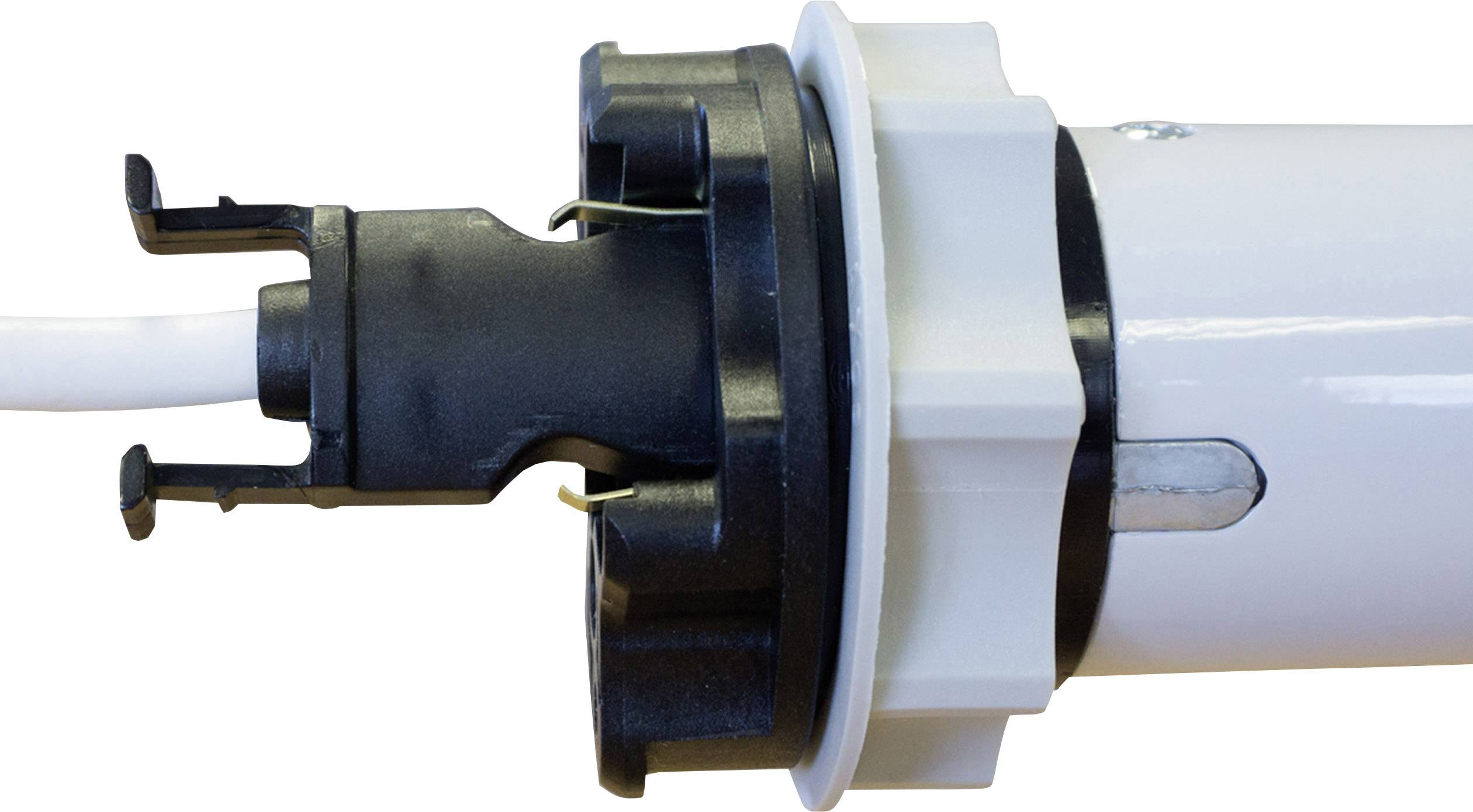

- Pluggable connection cable 2.5 m
- Integrated 868 Mhz radio receiver
- Thermal cut-off.
Scope of delivery
- Wireless tubular motor 50 Nm
- Adapter/catches SW60
- Motor
- User manual.
