Kaiser Nienhaus Electronic Master 123000 Tubular motor set 60 mm 30 Nm
EAN:
Part number:
Item no:
Number
Total (€ 109.24 / piece)
€ 109.24
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Master Electronic tubular motor, 30 Nm

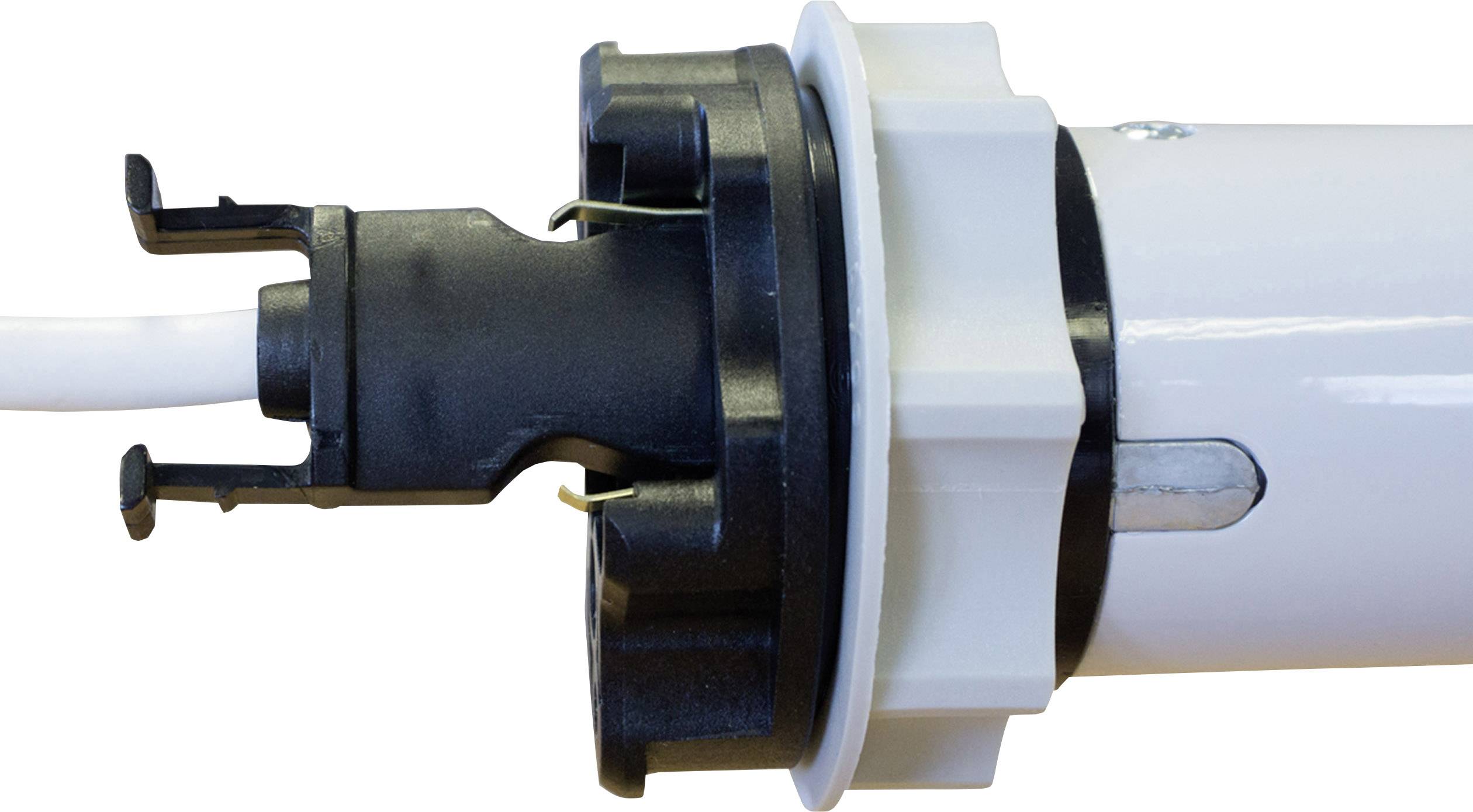

- Pluggable connection cable
- Patented brake
- Electronic switch-off
Technical specifications

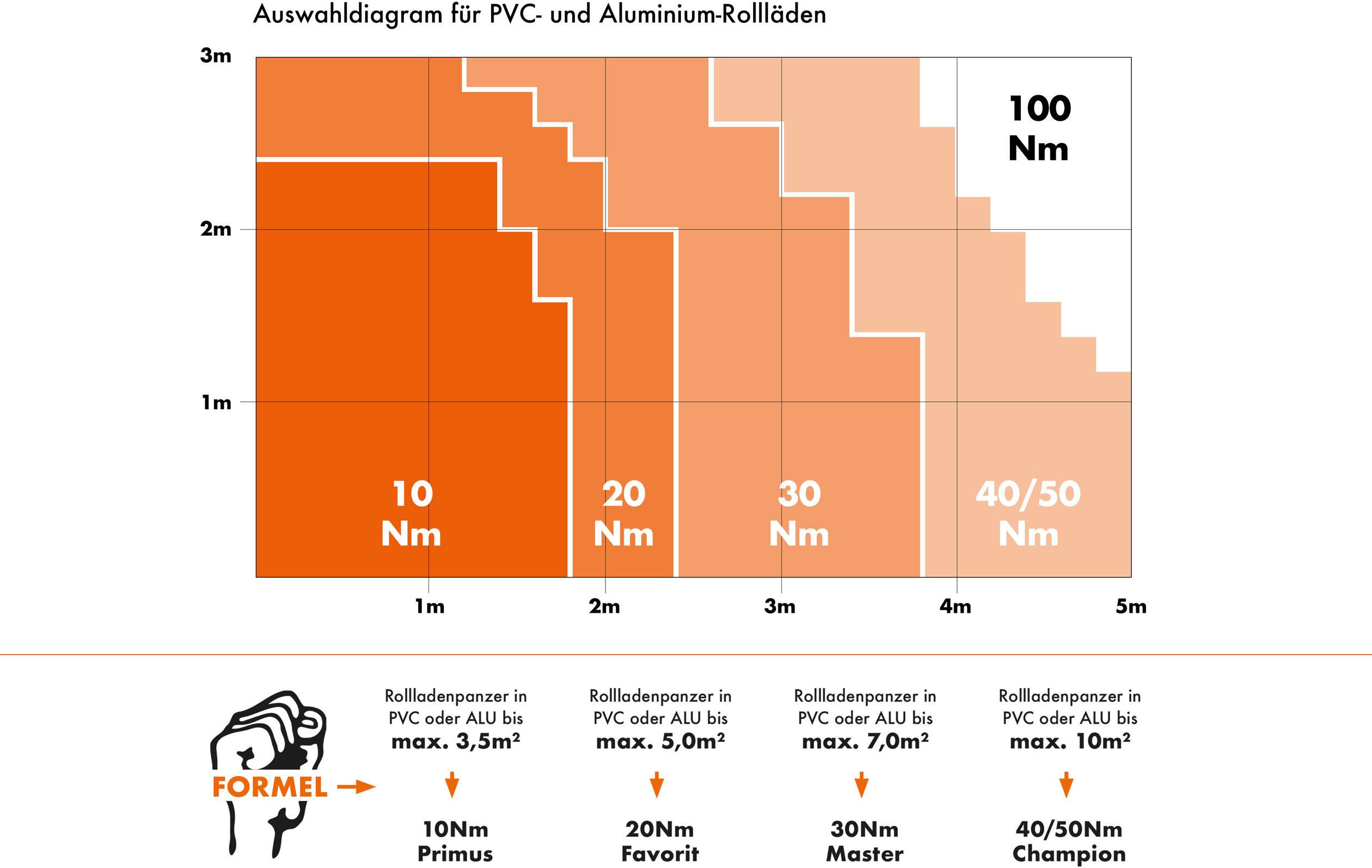

- Suitable for: PVC/ aluminum shutters up to 7.00 m²
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 600 mm
- Weight
2900 g
- Rotational speed
17 U/min
- Length
600 mm
- Max. current consumption
0.9 A
- Limit switched
electrical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
30 Nm
- Lead length
2.5 m
- Rotational speed
17 rpm
- Current consumption
0,9 A
- Traction (max.) (details)
PVC/ aluminium shutters up to 7.00 m²
- Operating voltage
230 V
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 640502 Kaiser Nienhaus Electronic Master 123000 Tubular motor set 60 mm 30 Nm
Information
Information 640502 Kaiser Nienhaus Electronic Master 123000 Tubular motor set 60 mm 30 Nm
Description
The high-torque Master Electronic tubular motor runs very silently and quietly. It is easy to install and operate. The tubular motor offers extra safety and comfort.
Features
- Incl. antifreeze protection
- A parallel connection option is available
- Drive with high-precision wheel sets, robust, extremely long-lasting, runs quietly
- Pluggable connection cable (2.5 m) for easy mounting, an advantage if servicing is required
- Pluggable connection cable for easy mounting, an advantage if servicing is required
- Pluggable connection cable for easy mounting, an advantage if servicing is required.
Scope of delivery
- Tubular motor incl. adapter
- Driver for octagon shutter shaft
- Motor bearing set
- Instructions for use.
