Name: Kathrein ESC 30 Antenna socket Screw fastening Single
Brand: Kathrein
SKU: 3479052
Availability: InStock

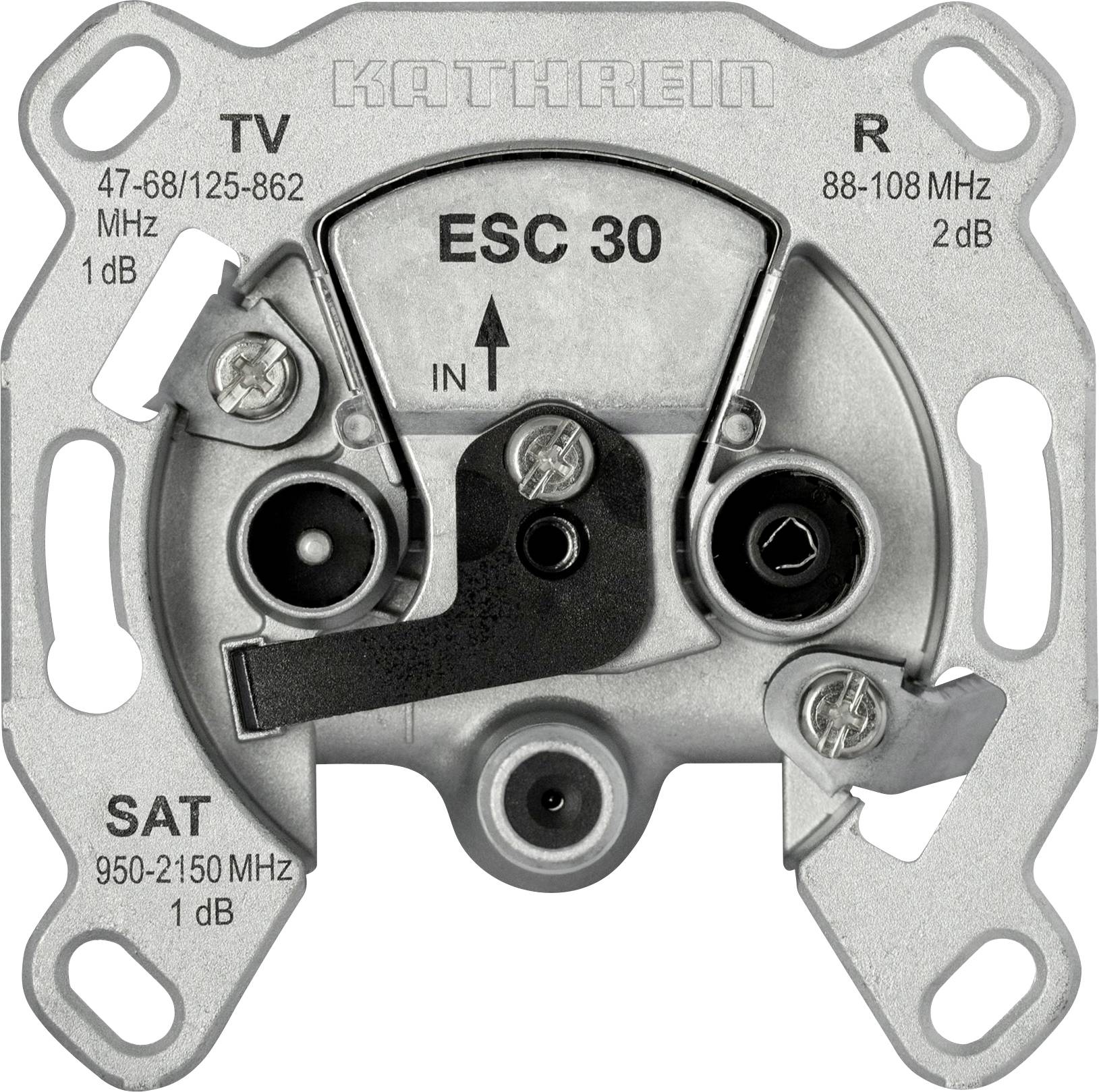

'Kathrein ESC 30' antenna socket with 'TV', 'R', and 'SAT' labels. Frequency ranges: 47-862 MHz, 88-108 MHz, and 950-2150 MHz.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 12.99 / piece)

€ 12.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ESC 30 3 way sat single connection socket

3-fold functionality and system design: The socket offers connections for radio (FM), TV (VHF/UHF) and SAT. It is specially designed as SAT-single connection box for the use in stub line and star distribution systems in SAT house distribution systems.
Extremely low connectionloss : Connection loss is very low and is only 1.0 dB for TV (47–68 MHz, 118–470 MHz, 470–1006 MHz) and SAT (950–2150 MHz), and 2.0 dB for radio (87.5–108 MHz).
DC and control passage: The socket has a DC-voltage pass-through via the SAT-connection, which supports a maximum of 24 V / 320 mA. It also enables the transmission of 22 kHz and DiSEqC™ signals.
Robust construction and standard filling: The ESC 30 has a stable die-cast housing and can be mounted in UP boxes with a diameter of 55–65 mm using screw and claw mounting. It fulfills the standards EN 60728-11 and EN 50083-2

Technical specifications

Type: Single

Product type: Antenna socket

Mounting type: Screw fastening

FM (min.): 87.5 MHz

FM (max.): 108 MHz

TV signal frequency (min.): 47 MHz

TV signal frequency (max.): 1006 MHz

SAT frequency (min.): 950 MHz

SAT frequency (max.): 2150 MHz

No. of FMs: 1 x

No. of TVs: 1 x

No. of SATs: 1 x

SAT signal attenuation: 1.0 dB

Documents & Downloads

Datasheet

Datasheet 3479052 Kathrein ESC 30 Antenna socket Screw fastening Single

User & Safety Instructions

User & Safety Instructions 3479052 Kathrein ESC 30 Antenna socket Screw fastening Single

Description

The ESC 30 single connection socket by Kathrein digital systems is the ideal solution for flexible SAT house distribution systems. This 3-way socket supplies radio, TV and SAT reliably to your end device and is perfectly suitable for stub line and star distribution systems. The mounting is simple and safe thanks to the stable die-cast casing and the possibility of combining it with almost all the installation programs. Benefit from the low connection attenuation (typically only 1 dB for TV and SAT) and the integrated DC-passage, which enables the supply of multi-switches or LNBs.

This text is machine translated.
