Name: Kathrein ESC 84 Antenna socket BK Screw fastening Single
Brand: Kathrein
SKU: 3479054
Availability: InStock

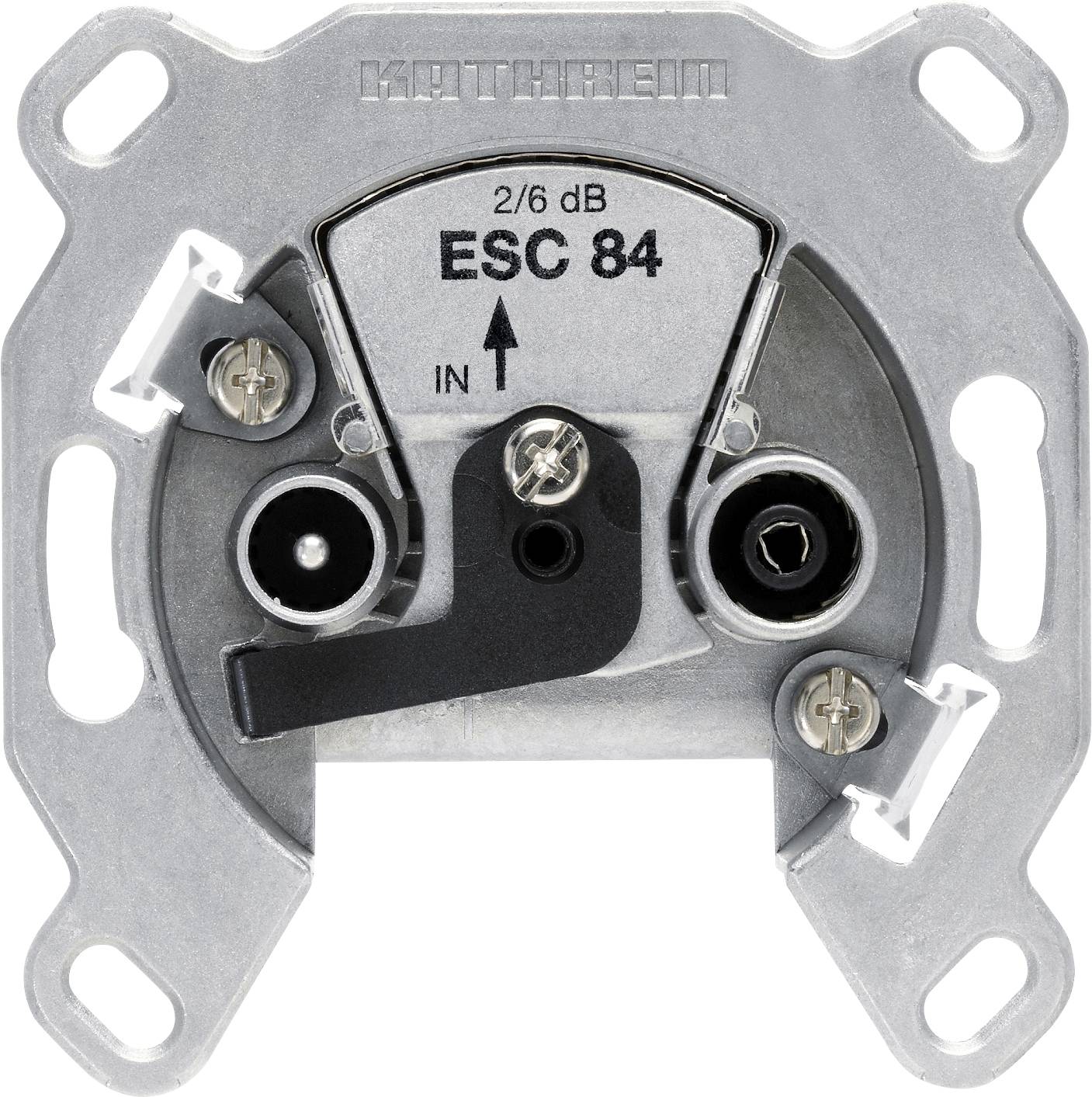

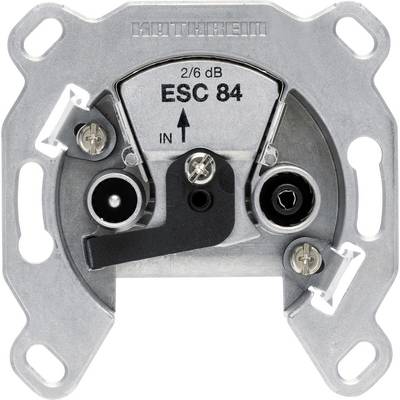

'Satellite socket labeled ESC 84, with inputs marked IN and two connection points. Mounting bracket visible around the edges.'

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 10.99 / piece)

€ 10.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ESC 84 Single 2-way connection socket

Function and frequency range: The ESC 84 is a single 2-way socket (TV and radio). It works in the broadband range of 5 – 1006 MHz and is suitable for BK and GA domestic distribution systems.
Robust design and flexibility: The ESC 84 has a sturdy die-cast housing and can be mounted in flush-mounted boxes with a diameter of 55–65 mm using screw and claw mounting. It can be combined with almost all installation programs.

Technical specifications

Type: Single

Product type: Antenna socket

Suitable for: BK

Mounting type: Screw fastening

FM (min.): 87.5 MHz

FM (max.): 108 MHz

TV signal frequency (min.): 5 MHz

TV signal frequency (max.): 1006 MHz

DATA frequency (min.): 5 MHz

DATA frequency (max.): 47 MHz

No. of FMs: 1 x

No. of TVs: 1 x

Frequency range: 5-1006 MHz

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479054 Kathrein ESC 84 Antenna socket BK Screw fastening Single

Description

The ESC 84 is the single broadband socket from Kathrein digital systems, designed for use in modern BK and GA domestic distribution systems. This 2-way socket reliably provides you TV and radio signals in the wide frequency range from 5 to 1006 MHz.
