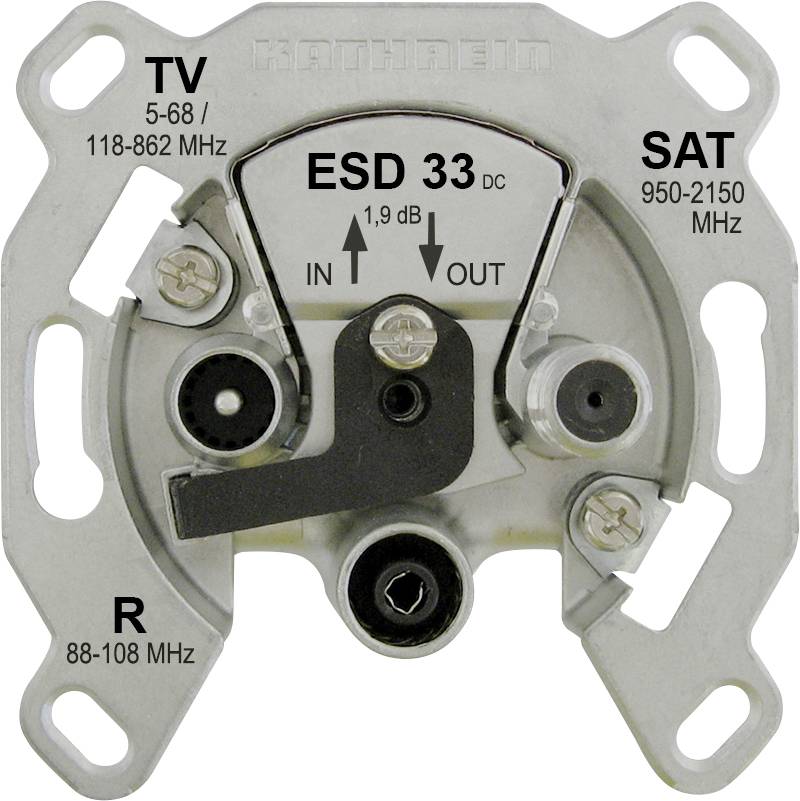

Kathrein ESD 33 Antenna socket BK, SAT, TV, FM Flush mount Non-terminated
EAN:
Part number:
Item no:
Number (Package size 10 pc(s))
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
14 days return policy included
Highlights & Details
ESD 33 loop-through socket
- Dual system functionality: The ESD 33 is a directional coupler socket specially designed for use in combined star/looped systems. It is used for the distribution of BK (broadband cable) and SAT signals.
- Very low transmission loss: The socket is optimized for cascading. The transmission loss is very low and is only 1.9 dB in the SAT ZF range (950 – 2150 MHz). In the terrestrial range (e.g. 5–68 MHz) the transmission loss is even only 1.1 dB.
- DC-passage for SAT-components: The socket enables the direct-voltage passage from the SAT-connection to the input (DC-connection decoupled over diodes), with a maximum load capacity of 24 V / 400 mA.
- High installation flexibility and robustness: The ESD 33 possesses a stable die-cast housing and can be combined with almost all installation programs. The mounting is done optionally with screw and claw fixing and is suitable for UP-sockets with Ø 55 - 65 mm.
- High shielding rating: The box meets high demands on the electromagnetic compatibility and achieves shielding measurements of, for example, ≥ 85 dB in the range of 5 - 300 MHz
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
BK
SAT
TV
FM
- Mounting type
Flush mount
- Features
Reverse channel
- FM (min.)
87 MHz
- FM (max.)
108 MHz
- TV signal frequency (min.)
5 MHz
- TV signal frequency (max.)
862 MHz
- SAT frequency (min.)
950 MHz
- SAT frequency (max.)
2150 MHz
- SAT signal attenuation
10 dB
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3479048 Kathrein ESD 33 Antenna socket BK, SAT, TV, FM Flush mount Non-terminated
Description
Kathrein ESD 33: The smart looping solution for BK and SAT.
The Kathrein ESD 33 is the BK/SAT pass-through socket, which simplifies your installation.
As a directional coupler socket it is perfectly suitable for combined star/loop through systems. Benefit from an extremely low transmission loss of only 1.9 dB in the SAT-ZF range, WAS protects the signal quality in your distribution network.
The stable die-cast casing and the possibility of direct-voltage passage for SAT-components (max. 24 V / 400 mA) make the ESD 33 a reliable choice for installers. It can be combined with almost all installation programs.
ESD 33 – Reliable distribution, low losses.
