Name: Kathrein ESD 52 Antenna socket SAT Screw fastening, Flush mount Non-terminated
Brand: Kathrein
SKU: 3479084
Availability: InStock

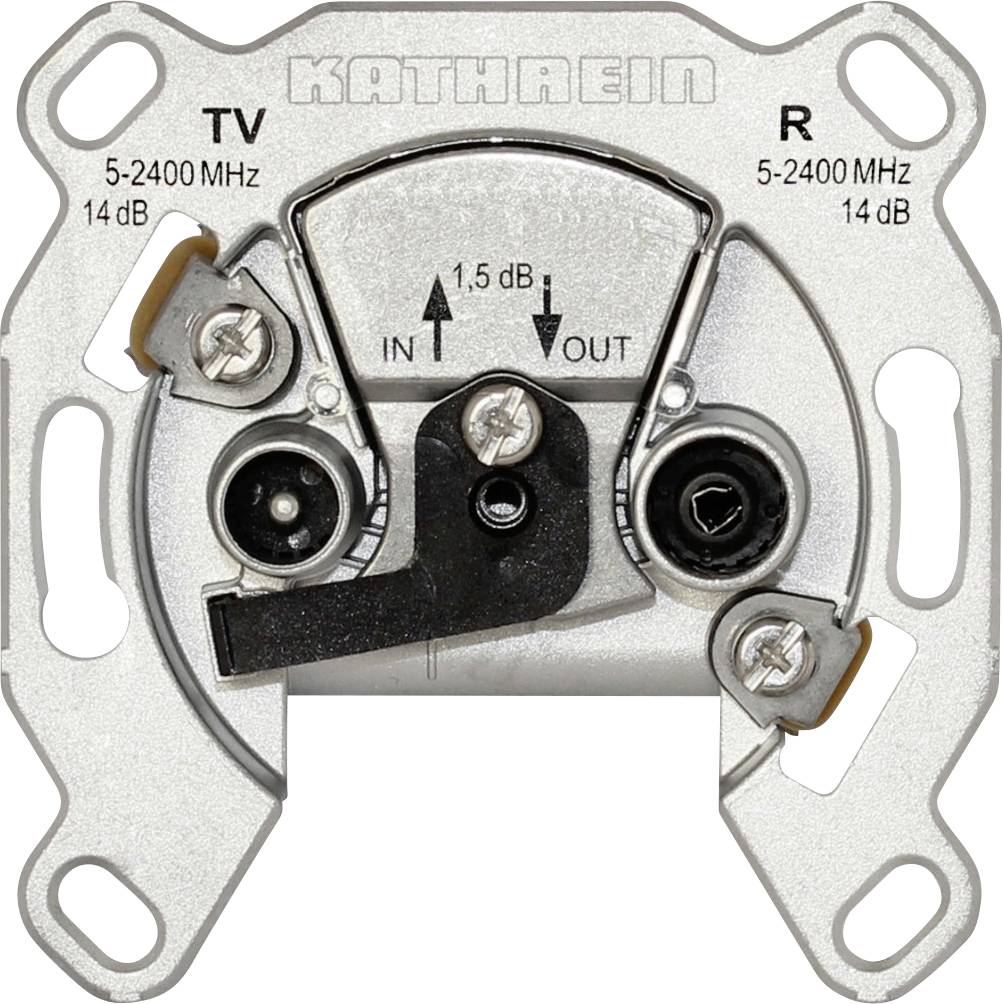

The image shows a Kathrein TV and R outlet for frequencies 5-2400 MHz with a specification of 14 dB. Two connector ports are marked TV and R.

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ESD 52 through-wall socket 2-way

2-way passage socket; 5 - 2400 MHz
Extremely wide frequency range: The socket supports signals from 47 MHz up to 2400 MHz, making it Ideal suitable for the distribution of all common radio, TV and Sat-ZF signals.
DC pass-through and control signal capability: It has a DC pass-through via the TV-connection to the main line (max. 24 V/350 mA) and enables the transmission of 22-kHz and DiSEqC™-signals

Technical specifications

Type: Non-terminated

Product type: Antenna socket

Suitable for: SAT

Mounting type: Screw fastening
Flush mount

FM (min.): 87.5 MHz

FM (max.): 108 MHz

TV signal frequency (min.): 47 MHz

TV signal frequency (max.): 2400 MHz

SAT frequency (min.): 950 MHz

SAT frequency (max.): 2150 MHz

No. of FMs: 1 x

No. of TVs: 1 x

No. of SATs: 1 x

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479084 Kathrein ESD 52 Antenna socket SAT Screw fastening, Flush mount Non-terminated

Description

The ESD 52 double pass-through socket is the broadband directional coupler box from Kathrein digital systems, designed for reliable looping systems in SAT single-family home systems. It offers an impressively wide frequency range up to 2400 MHz to cover both radio and TV signals and the complete Sat-ZF distribution. The remote feed of multi-switches or LNBs is ensured by the integrated DC-passage via the TV/SAT-connection.
