Name: Kathrein ESE 10 Antenna socket BK, SAT, TV, FM Screw fastening, Flush mount Non-terminated
Brand: Kathrein
SKU: 3479056
Availability: InStock

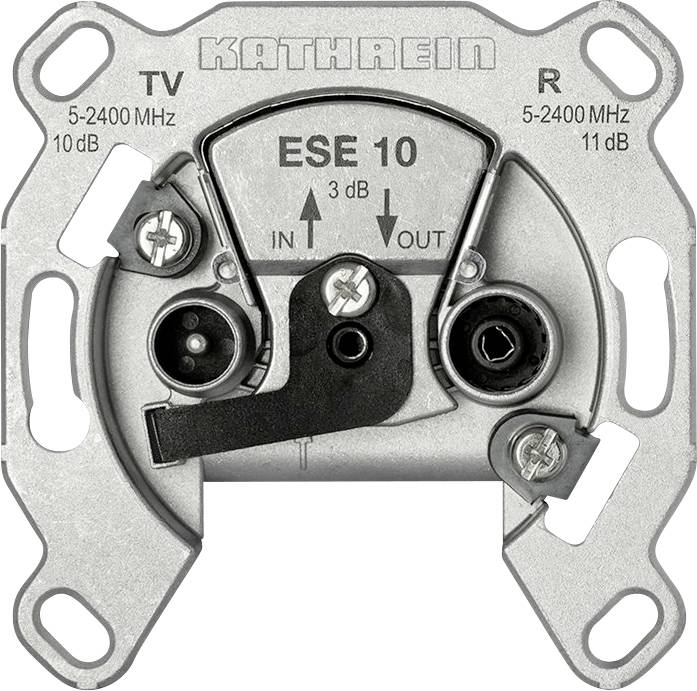

Coaxial socket outlet featuring 'Kathrein' branding. Ports labeled 'TV' (5-2400 MHz, 10 dB) and 'R' (5-2400 MHz, 11 dB). Central 'ESE 10' label indicates 3 dB signal loss.

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 14.99 / piece)

€ 14.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ESE 10 feedthrough box 2-way

Broadband signal processing: The box is designed for an extremely wide frequency range from 4 to 2400 MHz Ideal, making it suitable for use in modern broadband (BK), GA (shared) and SAT home distribution systems.
Low transmission loss: It offers low transmission loss values, e.g. only 2.4 dB in the VHF/UHF range, WAS maintains signal quality in loop-through systems (series connection).
High system compatibility: The socket has the Vodafone-/KDG-release and can be combined with almost all installation programs.
Robust and easy to install: It has a sturdy die-cast housing and enables flexible mounting in flush-mounted sockets by means of screw and claw mounting.

Technical specifications

Type: Non-terminated

Product type: Antenna socket

Suitable for: BK
SAT
TV
FM

Mounting type: Screw fastening
Flush mount

FM (min.): 87.5 MHz

FM (max.): 108 MHz

TV signal frequency (min.): 47 MHz

TV signal frequency (max.): 862 MHz

SAT frequency (min.): 950 MHz

SAT frequency (max.): 2400 MHz

DATA frequency (min.): 5 MHz

DATA frequency (max.): 47 MHz

No. of FMs: 1 x

No. of TVs: 1 x

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479056 Kathrein ESE 10 Antenna socket BK, SAT, TV, FM Screw fastening, Flush mount Non-terminated

Description

The ESE 10 loop socket 2x is the broadband double-directional coupler socket from Kathrein Digital Systems, which enables signal distribution over an extremely wide frequency range from 4 to 2400 MHz. Designed for use in BK, GA and SAT home distribution systems, the ESE 10 offers the highest level of security and compatibility: It has the official Vodafone/KDG release and meets the strict standards EN 60728-11 and EN 50083-2. Thanks to the stable die-cast housing and the low transmission loss, the ESE 10 is the professional solution for modern, future-proof loop-through systems.
