Name: Kathrein ESM 32 Antenna socket BK, DAB+, TV, FM, Data Flush mount, Screw fastening Non-terminated
Brand: Kathrein
SKU: 3479085
Availability: InStock

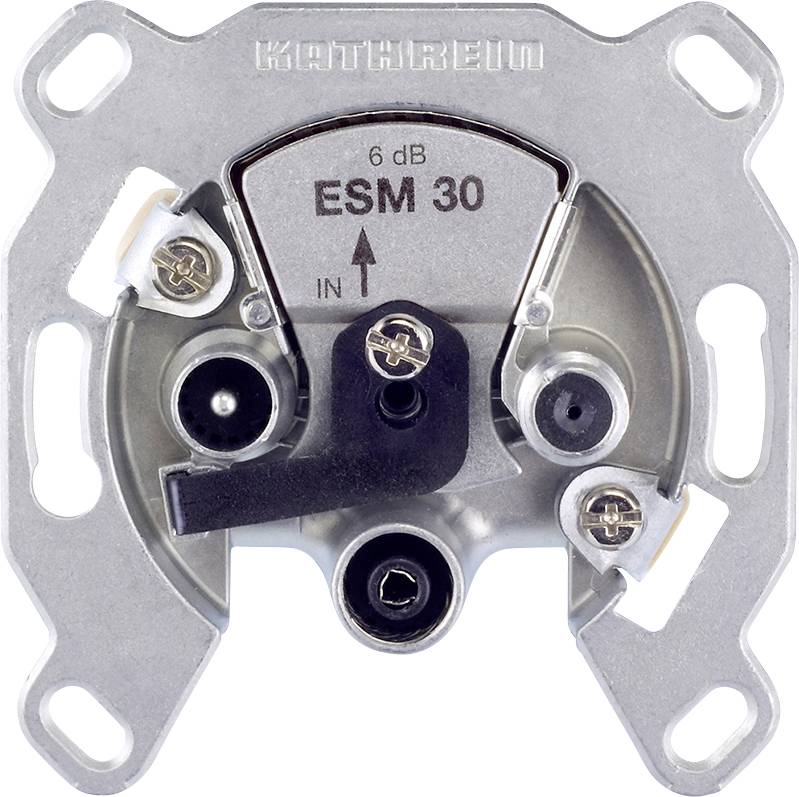

The image shows a Kathrein ESM 30 antenna socket with a 6 dB marking, featuring multiple connection points and a central fastening screw.

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 19.99 / piece)

€ 19.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ESM 32 modem-through socket 3-way

Specialized for interactive networks: The ESM 32 is a 3-way modem pass-through socket (TV, radio, modem), specially designed for interactive CATV/HFC networks and loop-through systems in the frequency range from 5 to 1006 MHz.
Effective interference protection: It provides very high decoupling (e.g. ≥ 78 dB in the 5–65 MHz range) between modem and TV/radio connection to prevent interference from the modem.
Inlet noise blocking: The integrated entry noise blocking function protects the system from the irradiation of unwanted interference signals and offers an integrated solution without plug-in filters, WAS increases the protection against subsequent manipulation by the subscriber

Technical specifications

Type: Non-terminated

Product type: Antenna socket

Suitable for: BK
DAB+
TV
FM
Data

Mounting type: Flush mount
Screw fastening

Features: Reverse channel

FM (min.): 85 MHz

FM (max.): 1006 MHz

TV signal frequency (min.): 85 MHz

TV signal frequency (max.): 1006 MHz

DATA frequency (min.): 5 MHz

DATA frequency (max.): 1006 MHz

No. of FMs: 1 x

No. of TVs: 1 x

DATA signal attenuation: 10 dB

Frequency range: 5-1006 MHz

Dim: (L x W x H) 40 x 80 x 80 mm

Suitable for class A: Yes

Width: 80 mm

Height: 80 mm

Length: 40 mm

Documents & Downloads

Datasheet

Datasheet 3479085 Kathrein ESM 32 Antenna socket BK, DAB+, TV, FM, Data Flush mount, Screw fastening Non-terminated

User & Safety Instructions

User & Safety Instructions 3479085 Kathrein ESM 32 Antenna socket BK, DAB+, TV, FM, Data Flush mount, Screw fastening Non-terminated

Description

The ESM 32 3-way modem pass-through socket by Kathrein digital systems is the specialized solution for use in interactive CATV/HFC networks. As a directional coupler socket for loop-through systems the ESM 32 enables the simultaneous distribution of modem, TV and radio signals in the broadband frequency range up to 1006 MHz.

You can rely on maximum signal purity: Thanks to a very high decoupling between the modem connection and the terminal equipment, the ESM 32 prevents interference of the TV/radio reception by the modem. In addition, the built-in noise blocking function blocks the irradiation of unwanted interference signals via the subscriber terminals.

The ESM 32 is an integrated solution without plug-in filter, possesses the Vodafone-/KDG-approval and fulfills the high standards EN 60728-11 and EN 50083-2

This text is machine translated.
