Name: Kathrein ESM 70 Antenna socket SAT, TV, FM, Data Flush mount, Screw fastening Single, Terminated
Brand: Kathrein
SKU: 3479057
Availability: InStock

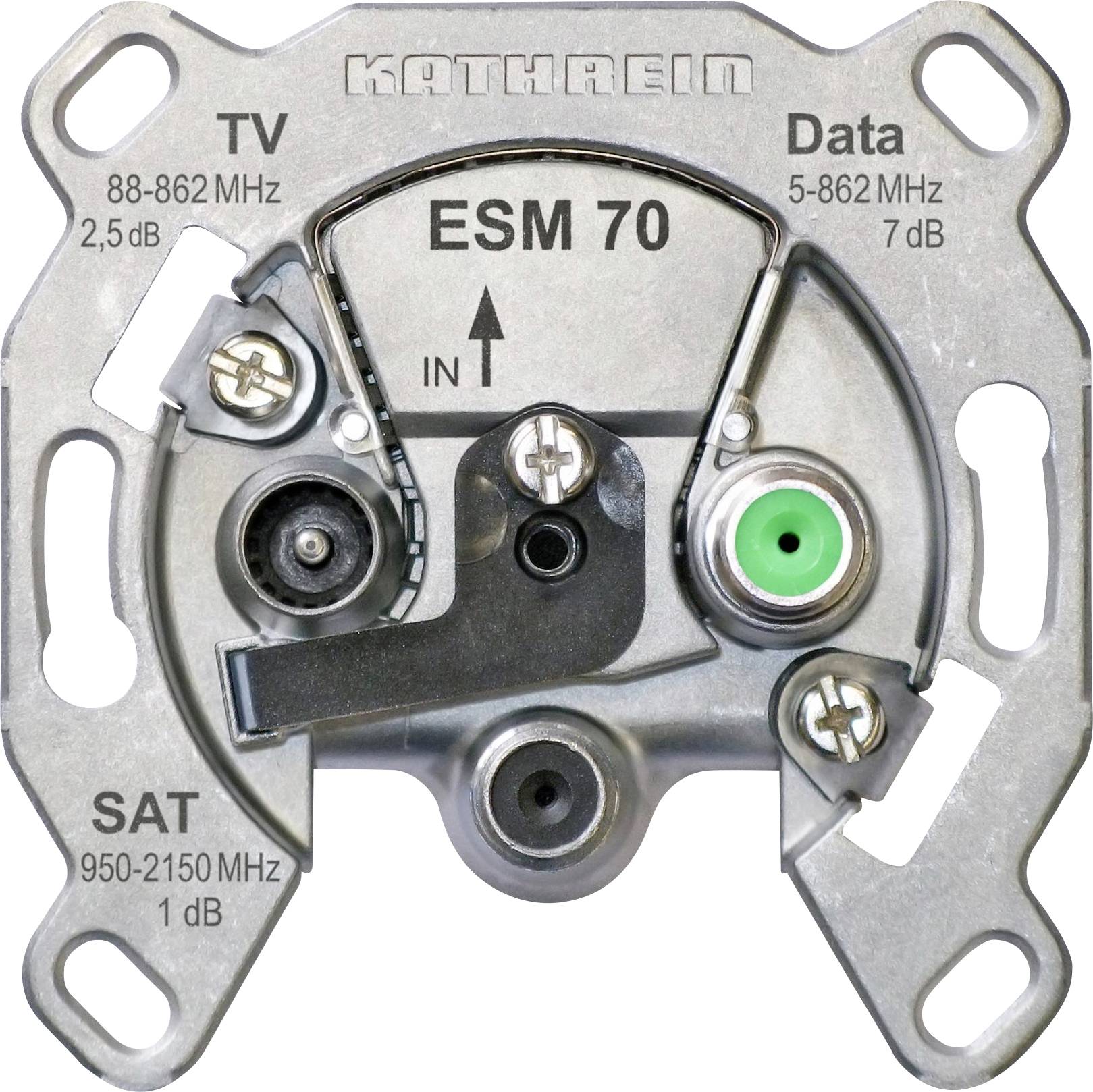

'Kathrein ESM 70' wall plate for TV, SAT, and Data connections. Frequency ranges: TV 88-862MHz, Data 5-862MHz, SAT 950-2150MHz.

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number (Package size 10 pc(s))

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

ESM 70 SAT-modem-single socket 3-way

Multifunction: 3-way socket for SAT (950–2150 MHz), TV/radio (85–862 MHz) and Data (5–862 MHz).
Modem compatibility: Ideal for the use of internet/telephony packages of cable network operators in SAT systems (DOCSIS modem-compatible).
High decoupling: Very high level of decoupling between modem connection and TV/radio connection prevents signal interference.
Interference signal protection: Integrated Input Noise Blocking function blocks undesired interfering signals via the terminals.
Low damping: Very low connection damping in the SAT-range of only 1.0 dB for best reception.
Integrated security: Diode at the SAT-connection protects against damages through wrongly connected terminals.
Flexible: Suitable for branch line and star distribution systems in SAT house distribution systems.
Easy installation: With screw and claw mounting, compatible with almost all common installation programs.
Connections: TV/Radio (IEC), modem (F-socket, green marked), SAT (F-socket, black).

Technical specifications

Type: Single
Terminated

Product type: Antenna socket

Suitable for: SAT
TV
FM
Data

Mounting type: Flush mount
Screw fastening

Features: Reverse channel

FM (min.): 85 MHz

FM (max.): 862 MHz

TV signal frequency (min.): 85 MHz

TV signal frequency (max.): 862 MHz

SAT frequency (min.): 950 MHz

SAT frequency (max.): 2150 MHz

DATA frequency (min.): 5 MHz

DATA frequency (max.): 862 MHz

No. of FMs: 1 x

No. of TVs: 1 x

No. of SATs: 1 x

No. of DATAs: 1 x

Frequency range: 5−2150 MHz Hz

Suitable for class A: Yes

Reverse channel: 5−65 MHz MHz

DC outlet: Yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3479057 Kathrein ESM 70 Antenna socket SAT, TV, FM, Data Flush mount, Screw fastening Single, Terminated

Description

Use the complete bandwidth of your modern SAT distribution system, without having to compromise on the interactive services of the cable network operators. The Kathrein ESM 70 is the ideal 3-way single connection socket for all, who need high-resolution satellite TV, radio and at the same time a stable, fast Internet access via cable modem (DOCSIS) at a central point. Maximum decoupling reliably protects your TV and radio signals from interference with the modem. Simply install, use everything!
