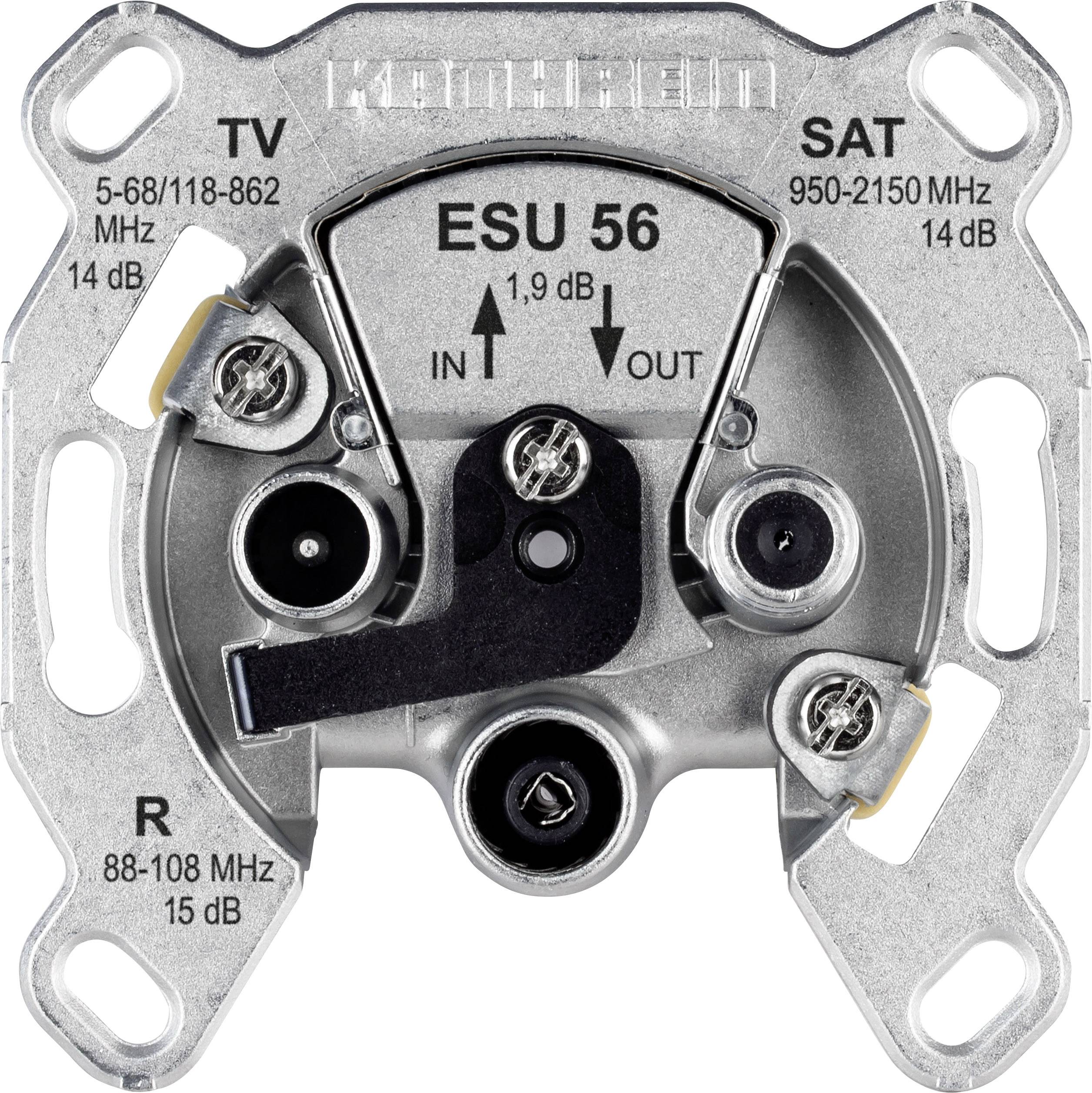

Kathrein ESU 56 Antenna socket SAT, TV, FM Flush mount Non-terminated
EAN:
Part number:
Item no:
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
Only 9 Piece(s) available
Kathrein ESU 56 Non-terminated cable system
Technical specifications
- Type
Non-terminated
- Product type
Antenna socket
- Suitable for
SAT
TV
FM
- Mounting type
Flush mount
- Features
Reverse channel
- FM (min.)
88 MHz
- FM (max.)
108 MHz
- TV signal frequency (min.)
5 MHz
- TV signal frequency (max.)
862 MHz
- SAT frequency (min.)
950 MHz
- SAT frequency (max.)
2150 MHz
- Factory colour
Silver
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1507182 Kathrein ESU 56 Antenna socket SAT, TV, FM Flush mount Non-terminated
Description
The programmable single-cable sockets of the ESCU50 Series Secure interference-free reception in one-cable satellite reception systems.
With the help of this cable sockets, it is possible to program the user bands. The single-cable outlets include a microcontroller, which the signalling within single-cable systems are monitored.
With the help of user-ID-check ensures that only the released user bands the terminal via the socket to the multi-switch.
The programming device SWP 50 allows, together with the app "Kathrein ESU", the one-cable sockets of the ESCU50 series from Kathrein to configure.
Only by the configuration of the single-cable sockets ensure that connected devices only shared user bands. There is now a terminal device configured incorrectly, incompatible with a one-cable system or it is in initial installation mode, then to other programd sockets connected devices will not be affected. This allows for a trouble-free operation throughout the Einkabel-Sat-System Apartment across permanently.
For the configuration, please use the app "Kathrein ESU". It is for the operating systems Android, iOS and Windows free of charge. With this app lock or enter the fast and intuitive user bands free. In addition, you can use the configuration each can protect against unauthorized changes using a PIN code.
This text is machine translated.
With the help of this cable sockets, it is possible to program the user bands. The single-cable outlets include a microcontroller, which the signalling within single-cable systems are monitored.
With the help of user-ID-check ensures that only the released user bands the terminal via the socket to the multi-switch.
The programming device SWP 50 allows, together with the app "Kathrein ESU", the one-cable sockets of the ESCU50 series from Kathrein to configure.
Only by the configuration of the single-cable sockets ensure that connected devices only shared user bands. There is now a terminal device configured incorrectly, incompatible with a one-cable system or it is in initial installation mode, then to other programd sockets connected devices will not be affected. This allows for a trouble-free operation throughout the Einkabel-Sat-System Apartment across permanently.
For the configuration, please use the app "Kathrein ESU". It is for the operating systems Android, iOS and Windows free of charge. With this app lock or enter the fast and intuitive user bands free. In addition, you can use the configuration each can protect against unauthorized changes using a PIN code.
This text is machine translated.
Features
- The return path compatible for systems with cable connection (CATV modem) or in systems with "IP-via-Coax", for example, with sound-Modem (EXI 01)
- Monitoring of the DiSEqC™ signalling by micro-controller
- Future option with the programr SWP 50 other functions to learn
- Overload protection through electronic fuse and decoupling diodes
- Connections: TV (IEC 61169-2 IEC plug (IEC 61169-2); Radio - IEC-socket); SAT-F socket (IEC 61169-24)
- CE, class A
- Meet EN 60728-11 and EN 50083-2
- Stable pressure die-cast housing
- With screw and claw fixing, suitable for flush-mounted sockets Ø 55-65mm
- Can be combined with almost all installation programs
