Buy KS Tools 330.2354 3302354 HSS TIN-TIP Step drill bit 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

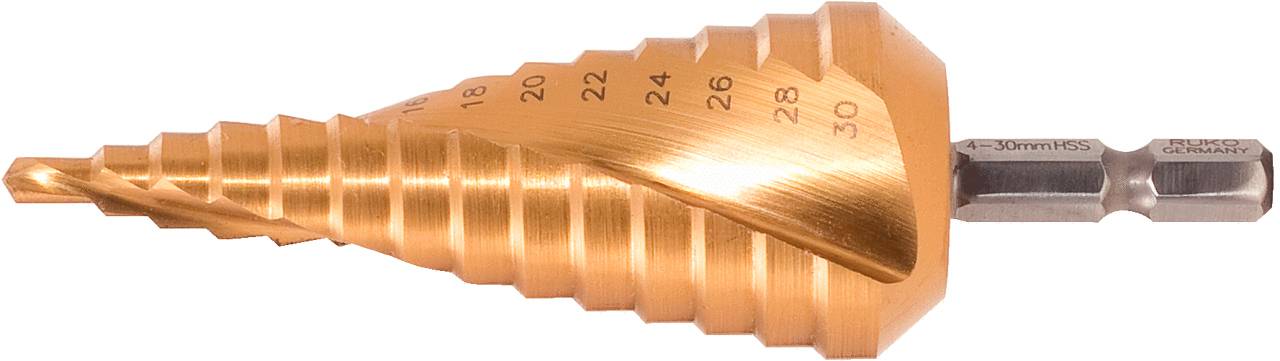

A gold-coloured stepped drill bit with graduated size markings from 4 to 30 mm. Suitable for precision drilling in metal.

A gold-coloured stepped drill bit with graduated size markings from 4 to 30 mm. Suitable for precision drilling in metal.

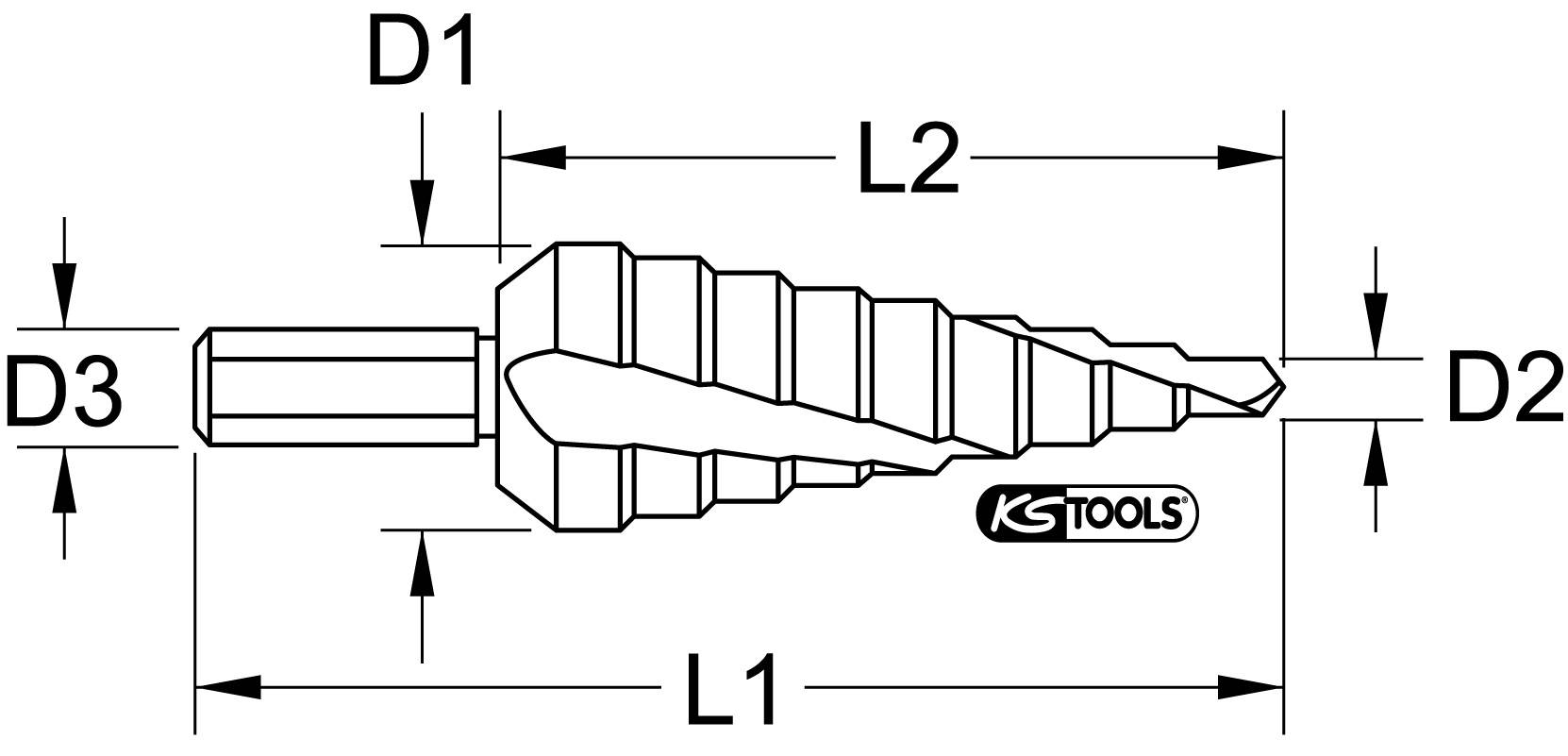

Technical drawing of a stepped drill bit with dimensions D1, D2, D3, L1, L2 marked, showing the form and structure of the tool.

1/2

KS Tools

Product type

Step drill bit

Content

1 pc(s)

Material

HSS TIN-TIP

Material suitability

Metal

Drill hole diameter

6 - 32 mm

EAN:

Part number:

Item no:

Dispatches on Thu 5 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 75.99 / piece)

€ 75.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Material 1: High speed steel Standard DIN 1412 C Weight 102 gApplication area Material: Sheet and non-ferrous metals Total length L1 in mm: 75 mmPart length L2 in mm: 53 mmDiameter D1 32 mmDiameter D2: 6 mmColour: Gold Surface:TiN Cutting direction: Right Cutting material HSS TiN Diameter in mm 6 - 32 mmSpan length 22 mmPeak angle 118° Shaft diameter D3: 10 mmNumber of steps: 8

Product type: Step drill bit

Content: 1 pc(s)

Material: HSS TIN-TIP

Material suitability: Metal

Weight: 102 g

Length: 75 mm

Drill hole diameter: 6 - 32 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2698881 KS Tools 330.2354 3302354 HSS TIN-TIP Step drill bit 1 pc(s)

Description

Notching according to DIN 1412 C.Cross polished section as a recessright-handed cuttingspiral flute118° tip angle90° step angleCompletely smooth runningHigh cutting performanceTiN-coated surfaceHigh-performance steelThe cone simplifies the pulling back with through drilled metal plates.Higher feed rate possible especially with non-ferrous metals through low cutting load.

This text is machine translated.

Description

Notching according to DIN 1412 C.Cross polished section as a recessright-handed cuttingspiral flute118° tip angle90° step angleCompletely smooth runningHigh cutting performanceTiN-coated surfaceHigh-performance steelThe cone simplifies the pulling back with through drilled metal plates.Higher feed rate possible especially with non-ferrous metals through low cutting load.

This text is machine translated.
