Name: Kübler Group HW66 M 230 VAC 3.56M.201.075 Electricity meter (AC) Mechanical 16 A MID-approved: Yes 1 pc(s)
Brand: Kübler Group
SKU: 123254
Availability: InStock

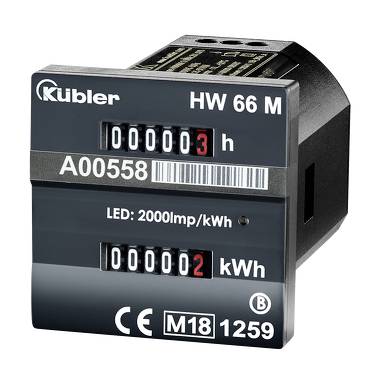

Kübler HW 66 M hour meter and energy counter display, showing 000003 h and 000002 kWh with barcode and model markings.

Product type

Electricity meter (AC)

Current load

16 A

Display

Mechanical

Calibration

Calibrated

Operating voltage

230 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 6 Nov

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 174.99 / piece)

€ 174.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Time / energy counter HW66 M

Combination of operation hour and energy counter
MID certified

Technical specifications

Product type: Electricity meter (AC)

Current load: 16 A

Display: Mechanical

Calibration: Calibrated

Operating voltage: 230 V AC

Dim: (W x H x D) 48 x 48 x 55 mm

Starting current: 20 mA

Display: Roller counter 2 x 6-digit

Display range: 0 - 99999.9

Recording time (max.) (details): -

Type: For installation

Output: -

Operating voltage: 230 V AC

Own consumption: -

Recess width: 45 mm

Recess length: 45 mm

Frequency: 50 Hz

Accuracy class: B

MID-approved: Yes

Reading type: Service hours

Width: 48 mm

Height: 48 mm

Current (max.): 16 A

Current range: 16 A (max)

Type: HW66 M 230 VAC

Effective power range: -

Effective current range: 16 A

Depth: 55 mm

Documents & Downloads

Datasheet

Datasheet 123254 Kübler Group HW66 M 230 VAC 3.56M.201.075 Electricity meter (AC) Mechanical 16 A MID-approved: Yes 1 pc(s)

User & Safety Instructions

User & Safety Instructions 123254 Kübler Group HW66 M 230 VAC 3.56M.201.075 Electricity meter (AC) Mechanical 16 A MID-approved: Yes 1 pc(s)

Description

The combination of operating hours and energy meters for the optimal cost input. Designed to allow for a strong current consuming rental equipment and a detailed justification of the calculation · Suitable for the settlement with insurance · Manipulation-proof · Permanent installation, no resetting possible · Display of both values and under voltage status · Easy to retrofit: Identical to the existing operating hours counters · High measurement accuracy (Class B, MID allowed) · Remote reading through SO output · Protection class IP65 (front).
