Buy kwb 238625 HSS Metal twist drill bit 2.5 mm Total length 57 mm M2 DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

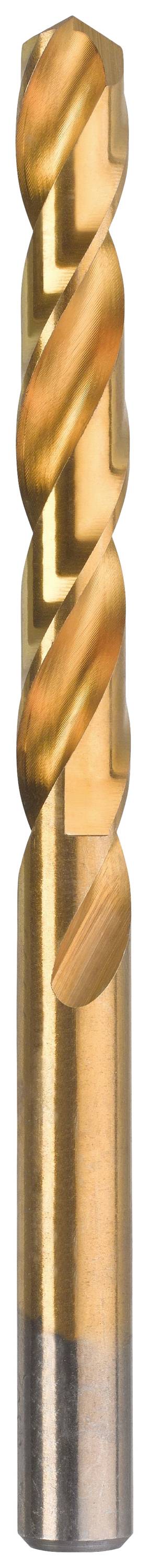

A metal drill bit with a spiral form and gold coating, used for drilling precise holes in hard materials.

A metal drill bit with a spiral form and gold coating, used for drilling precise holes in hard materials.

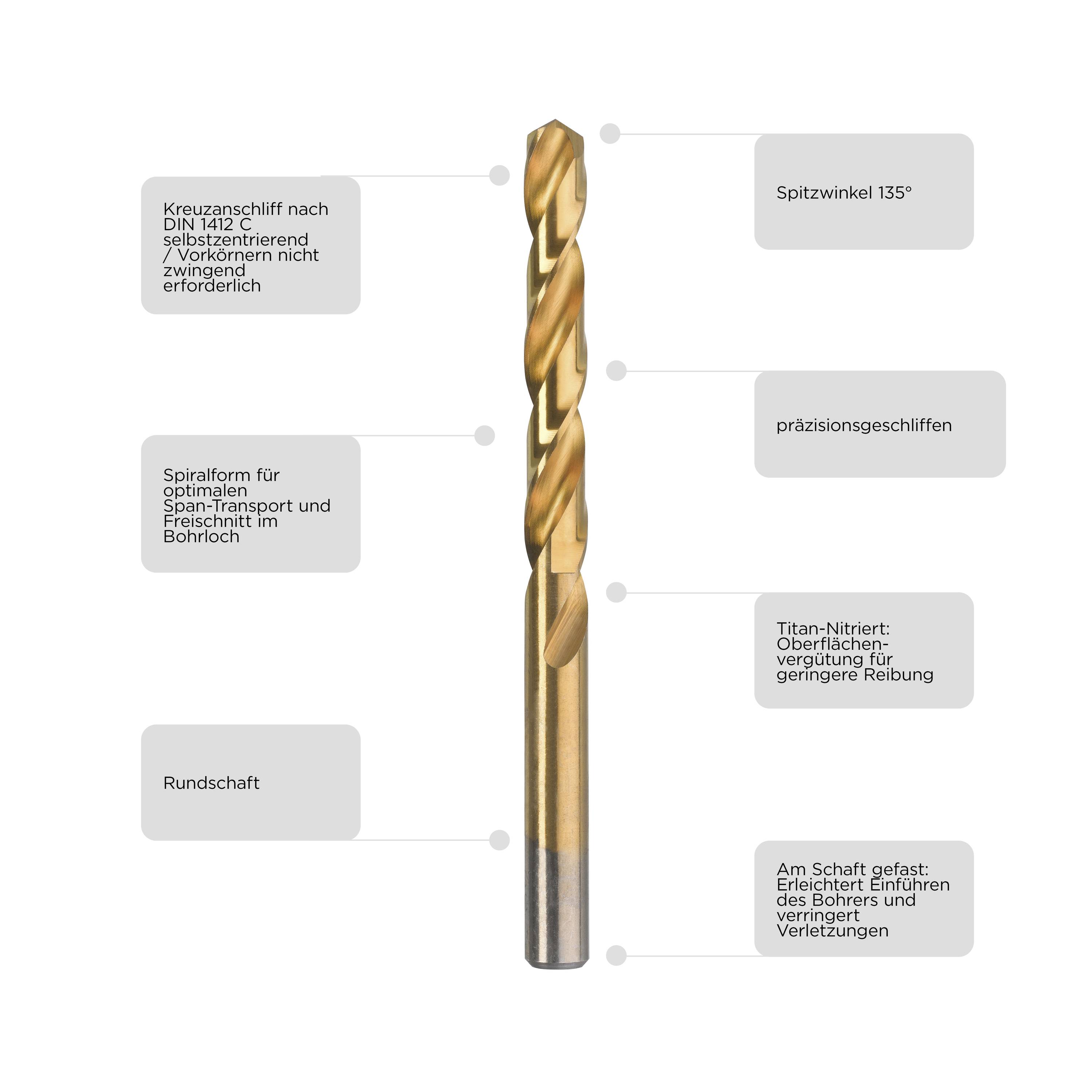

'Illustration of a twist drill with detailed labelling: Cross-ground cutting edge, Spiral flute, Cylindrical shank, Point angle 135°, precision ground, Titanium nitride coating.'

'Suitable for the following materials: steel, iron, cast iron, copper/nickel/brass/zinc, sheet metal, metal profiles.' Icons and text.

'Suitable for the following materials': Aluminium, Bronze, Plastic, Acrylic Glass, Hollow Chamber Panels. Six illustrations of the materials.

1/5

kwb

Product type

Metal twist drill bit

Drill hole Ø

2.5 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

10 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.79 / piece)

€ 3.39

-18 %

€ 2.79

incl. VAT

Only 10 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 2.5 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS

Material properties: M2

Material suitability: Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 2.5 mm

Working length: 30 mm

Total length: 57 mm

Weight: 7 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917948 kwb 238625 HSS Metal twist drill bit 2.5 mm Total length 57 mm M2 DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right-hand cut, type N, titanium nitride coated, precision-ground, Gold color, angle of top 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, high-quality surface coating for low friction and long shelf life at highest load in materials like alloyed and unalloyed steel, cast steel, cast steel, cast iron, sintered iron, nickel silver, Copper, bronze, hard plastics.

This text is machine translated.

Features

Suitable for unalloyed steel, cast iron, malleable cast iron, sintered iron, nickel silver, copper, bronze and hard plastics
High service life at the highest levels of performance. Titanium nitride coated, industrial quality
DIN 338 and DIN 1412 C

Description

According to DIN 338, right-hand cut, type N, titanium nitride coated, precision-ground, Gold color, angle of top 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, high-quality surface coating for low friction and long shelf life at highest load in materials like alloyed and unalloyed steel, cast steel, cast steel, cast iron, sintered iron, nickel silver, Copper, bronze, hard plastics.

This text is machine translated.

Features

Suitable for unalloyed steel, cast iron, malleable cast iron, sintered iron, nickel silver, copper, bronze and hard plastics
High service life at the highest levels of performance. Titanium nitride coated, industrial quality
DIN 338 and DIN 1412 C
