Buy kwb 238700 HSS Metal twist drill bit 10 mm Total length 133 mm M2 DIN 338 Cylinder shank 1 pc(s) | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

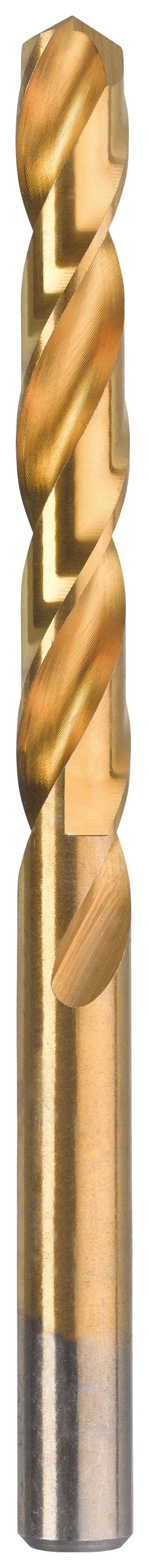

A metallic drill bit with a spiral design, bronze-coloured and shiny at the top, silver at the bottom, for processing materials.

A metallic drill bit with a spiral design, bronze-coloured and shiny at the top, silver at the bottom, for processing materials.

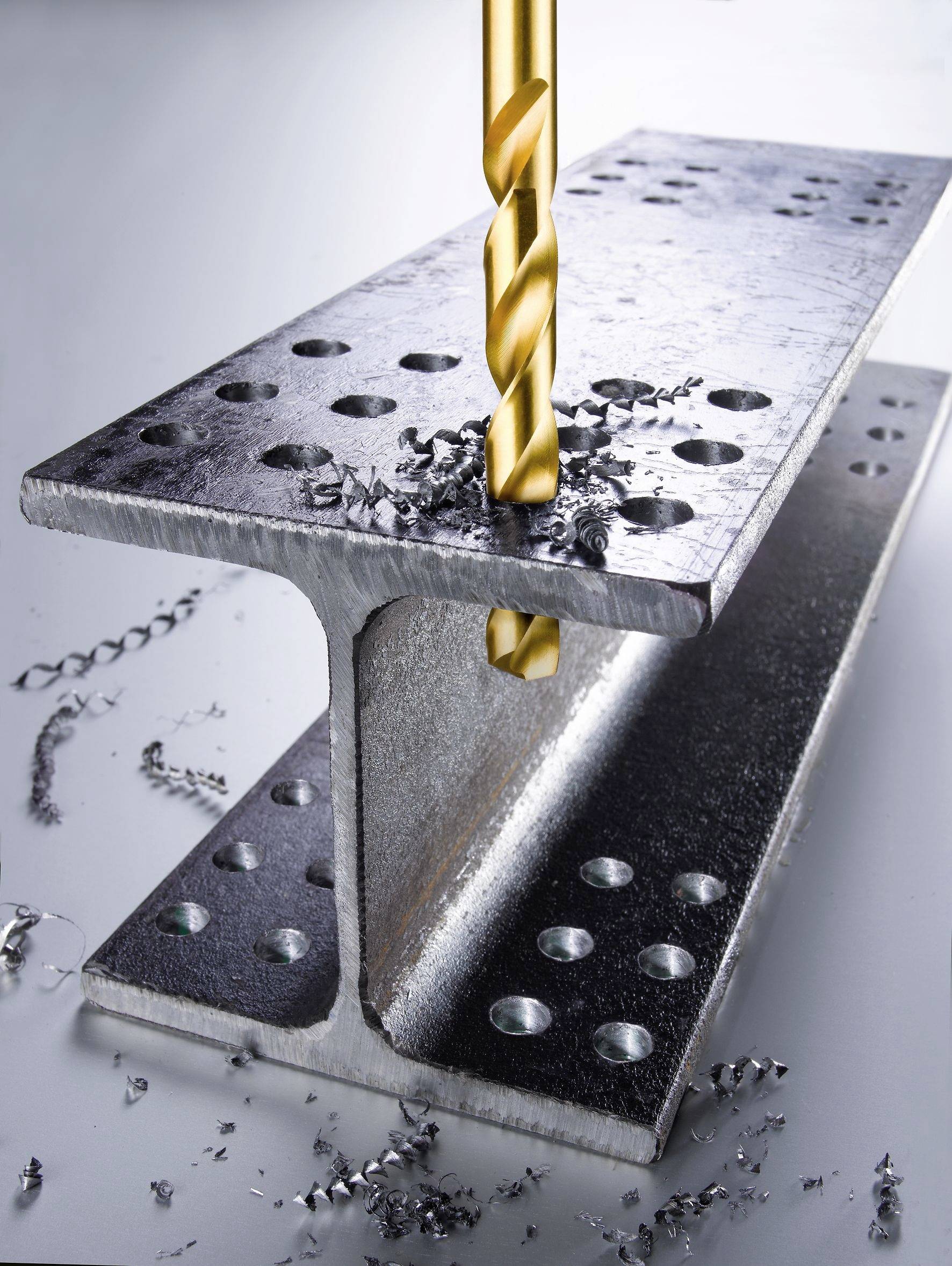

A golden drill bit pierces a thick piece of metal with multiple holes, surrounded by metal shavings.

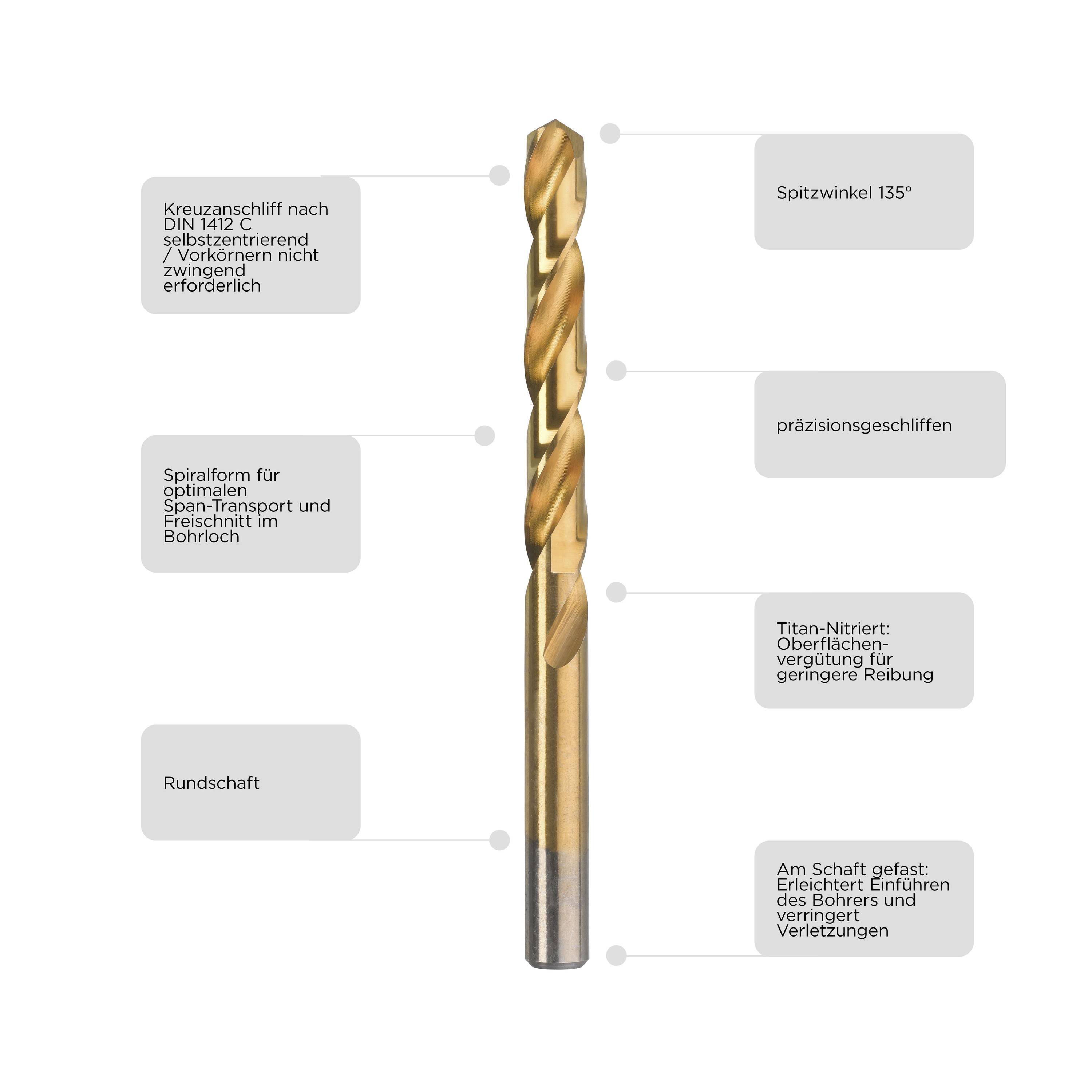

'Drill bit with a spiral form and titanium nitride coating for reduced friction. Cross-ground to DIN 1412 with a 135-degree point. Rounded shank for stability.'

'Suitable for the following materials: steel, iron, cast iron, copper/nickel/brass/zinc, sheet metal, metal profiles.'

'Suitable for the following materials:' with images of aluminium, bronze, plastic, acrylic glass, and honeycomb panels.

1/5

kwb

Product type

Metal twist drill bit

Drill hole Ø

10 mm

Content

1 pc(s)

Material

HSS

Material suitability

Steel

Iron

Non-ferrous metal

Sheet metal

Plastic

Acrylic

Hollow chamber boards

EAN:

Part number:

Item no:

Fast track dispatch on Thu 12 Nov

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 8.49 / piece)

€ 8.49

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Product type: Metal twist drill bit

DIN standard: DIN 338

Drill hole Ø: 10 mm

Tip angle: 135°

Content: 1 pc(s)

Material: HSS

Material properties: M2

Material suitability: Steel
Iron
Non-ferrous metal
Sheet metal
Plastic
Acrylic
Hollow chamber boards

Tool holder: Cylinder shank

Shank Ø: 10 mm

Working length: 87 mm

Total length: 133 mm

Weight: 65 g

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1917947 kwb 238700 HSS Metal twist drill bit 10 mm Total length 133 mm M2 DIN 338 Cylinder shank 1 pc(s)

Description

According to DIN 338, right-hand cut, type N, titanium nitride coated, precision-ground, Gold color, angle of top 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, high-quality surface coating for low friction and long shelf life at highest load in materials like alloyed and unalloyed steel, cast steel, cast steel, cast iron, sintered iron, nickel silver, Copper, bronze, hard plastics.

This text is machine translated.

Features

Suitable for unalloyed steel, cast iron, malleable cast iron, sintered iron, nickel silver, copper, bronze and hard plastics
High life at the highest levels of performance
Titanium nitride coated, industrial quality
DIN 338 and DIN 1412 C

Description

According to DIN 338, right-hand cut, type N, titanium nitride coated, precision-ground, Gold color, angle of top 135°, with cross-grinding according to DIN 1412 C self-centering, cylindrical, industrial quality, high-quality surface coating for low friction and long shelf life at highest load in materials like alloyed and unalloyed steel, cast steel, cast steel, cast iron, sintered iron, nickel silver, Copper, bronze, hard plastics.

This text is machine translated.

Features

Suitable for unalloyed steel, cast iron, malleable cast iron, sintered iron, nickel silver, copper, bronze and hard plastics
High life at the highest levels of performance
Titanium nitride coated, industrial quality
DIN 338 and DIN 1412 C
