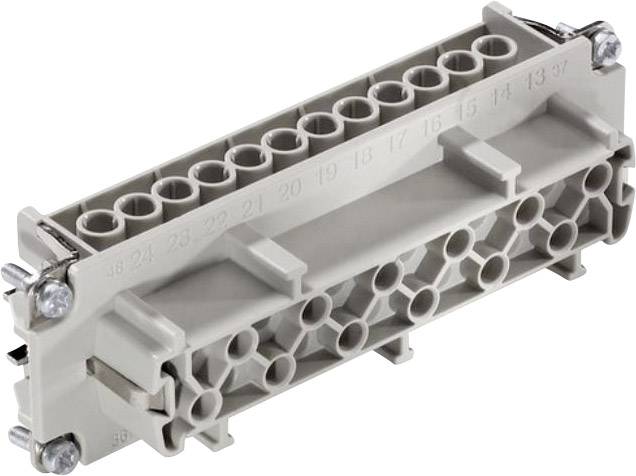

Grey electrical connector with screw terminals and 24 pins, suitable for industrial applications and control panels.

Image similar

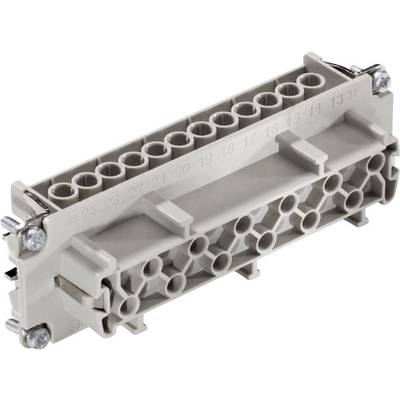

Grey electrical connector with screw terminals and 24 pins, suitable for industrial applications and control panels.

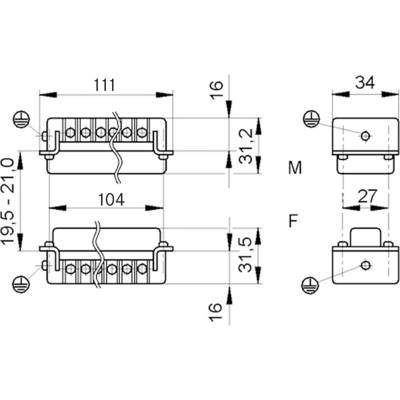

Diagram of technical dimensions for a rectangular connector. Shows length and width measurements, along with height variations.

1/2

Image similar

Product type

Socket inset

Series

EPIC® H-BE 24

Connection

Screws

Features

+ wire protection

Number of pins

24

Datasheet (PDF)

LAPP

Show alternatives

Sales and shipping:

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 15.96 / piece)

€

Report legal concerns

Highlights & Details

LAPP 10197000 Socket inset EPIC® H-BE 24 Total number of pins 24 + PE 1 pc(s)

Technical specifications

Product type: Socket inset

Series: EPIC® H-BE 24

Features: + wire protection

Connection: Screws

Number of pins: 24

Total no. of pins: 24 + PE

Core cross section (min.): 0.5 mm²

Core cross section (max.): 2.5 mm²

Rated surge voltage: 6 kV

Rated voltage: IEC: 500 V
UL: 600 V
CSA: 600 V

Test current: IEC: 16 A
UL: 16 A
CSA: 16 A

Content: 1 pc(s)

Leading contact (PE): Yes

Type: Socket insert

Type: EPIC® H-BE 24 BS

Pins: 24 + PE

Connection: Screws

Documents & Downloads

Datasheet

Datasheet 739932 LAPP 10197000 Socket inset EPIC® H-BE 24 Total number of pins 24 + PE 1 pc(s)

Information

Deutsch (Deutschland)

Information 739932 LAPP 10197000 Socket inset EPIC® H-BE 24 Total number of pins 24 + PE 1 pc(s)

Description

The EPIC® H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents.
