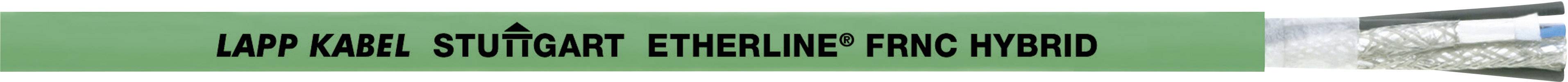

LAPP 2170887/100 Network cable CAT 5 SF/UTP 2 x 2 x 0.32 mm² + 4 x 1.50 mm² Green 100 m
EAN:
Part number:
Item no:
Product type
Network cable
Specification
CAT 5
Shielding
SF/UTP
Cable type
EtherLine
No. of leads
4 x
Datasheet (PDF)
Number
Total (1 m = € 10.46)
€ 1,046.22
plus VAT.
Only 1 Set(s) available
Highlights & Details
ETHERLINE ® CAT. 5 FRNC HYBRID
- HYBRID: cable for data transmission and power supply
Technical specifications
- Product type
Network cable
CAT 5
SF/UTP
- Cable type
EtherLine
- No. of leads
4 x
- Cross section (each core)
0.32 mm²
- No. of leads (part 2)
4 x
- Cross section (each core) (part 2)
1.50 mm²
- Cross section
2 x 2 x 0.32 mm² + 4 x 1.50 mm²
- Cable features
Flexible
Flame-retardant
Halogen-free
Simplex
Common shield
- Outside Ø
10.30 mm
- Factory colour
Green
- Max. frequency
100 MHz
- Content
100 m
- AWG max.
22
- Packaged
Yes
- Sold per metre
No
- Manufacturer part #
2170887/100
- Type
ETHERLINE® Cat.5 FRNC HYBRID
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (fixed installation)
-20 °C
- Max. temperature range (fixed installation)
+70 °C
- Twisted pair cabling (part 1)
Yes (1)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 1021957 LAPP 2170887/100 Network cable CAT 5 SF/UTP 2 x 2 x 0.32 mm² + 4 x 1.50 mm² Green 100 m
User & Safety Instructions
User & Safety Instructions 1021957 LAPP 2170887/100 Network cable CAT 5 SF/UTP 2 x 2 x 0.32 mm² + 4 x 1.50 mm² Green 100 m
Description
Industrial Ethernet cable. 2 Pairs: 10/100 Mbit/s for Industrial Ethernet. High-quality, two-way shielding ensures a high level of transmission security electro-magnetic polluted areas. PROFINET applications type C hybrid. Suitable for EtherCAT and EtherNet/IP applications.
