Laserfuchs Plumb dot laser
Product type
Plumb dot laser
Length
90 mm
Laser category
3R
Operating voltage
3 V DC
Operating current
250 mA
EAN:
Part number:
Item no:
Number
Total (€ 224.99 / piece)
€ 224.99
incl. VAT
14-day return policy included
Highlights & Details
Point laser, green, 532nm, 5mW, laser class 3R, Focus collimated, 3V DC, 16x90mm, inc. Mains adapter
- Laser category: 3R
Technical specifications
- Material: Aluminium
- Optical power 5 mW
- Lifetime 5000 h
- Operating temperature 15°C - 30 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Laser class 3R
- Divergence D - 0.5 mrad
- 150 m operating distance
- Optics: Anti-reflex coated glass lenses
- Laser technology: YVO4+KTP
- Focus: Collides
- Potential of the enclosure: VDD(+)
- Cable length 1,400 mm
- Outlet diameter of optical 3 mm
- Beam diameter 3 mm
- Product type
Plumb dot laser
- Length
90 mm
- Laser category
3R
- Operating voltage
3 V DC
- Operating current
250 mA
- Material
Aluminium
- Dim
(L x W) 90 mm x 16 mm
- Weight
43 g
- RoHS-compliant
Yes
- Width
16 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987496 Laserfuchs Plumb dot laser
Information
Information 2987496 Laserfuchs Plumb dot laser
Conformity certificate
Conformity certificate 2987496 Laserfuchs Plumb dot laser
Description
Features
- Point laser, green, 532nm, 5mW, laser class 3R, Focus collimated, 3V DC, 16x90mm, inc. Mains adapter
- Point laser, green, 520nm, 1mW, laser class 2, Focus 5m, 3V DC, 19x19 86mm, battery operation

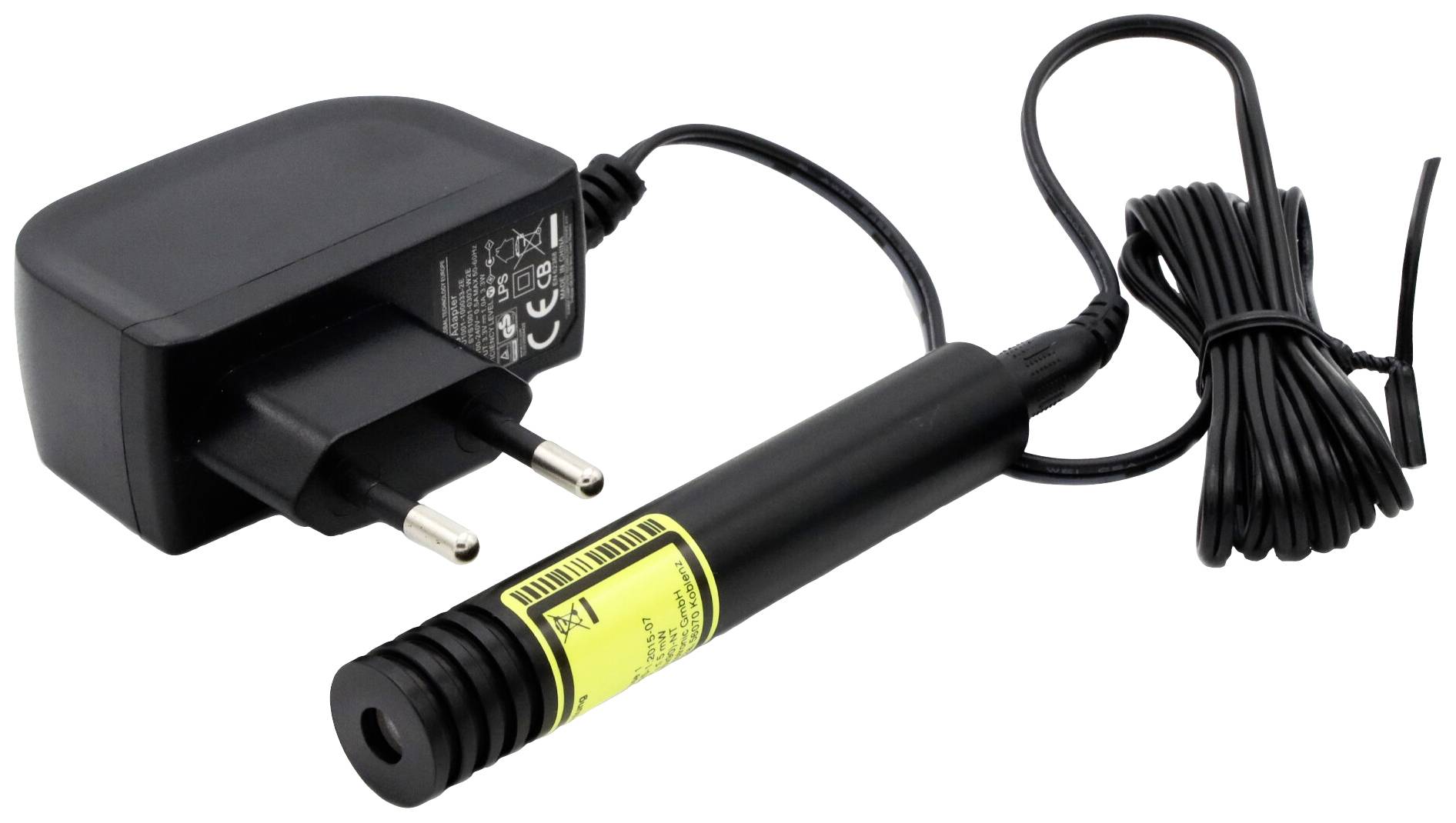

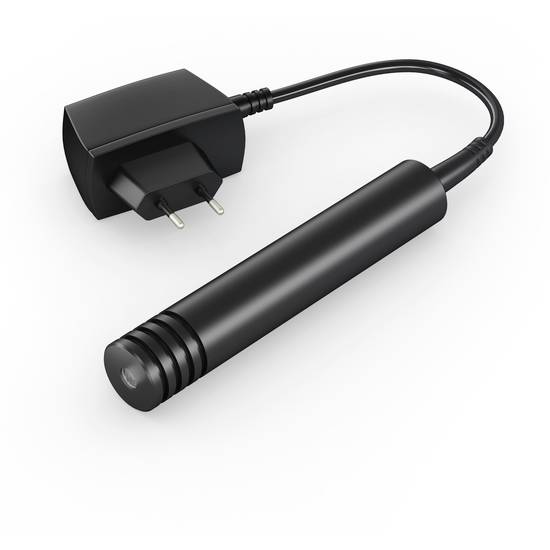

- The LFD532-5-3(16x90) NT type is a green dot laser with a wavelength of 532nm. This laser module is characterized by its solid design (16x90mm). The service life of the laser module is greater than 5,000 hours. Due to the collimated laser beam, the generated spot size increases steadily slightly with increasing working distance. The accompanying power supply provides a stable and reliable power supply HER. This point laser is used in e.g. leveling devices, laser marking systems and for accurate positioning of objects. For industrial, handicraft, hobby and the show area. Typical usage areas are low-cost applications. This module falls into the laser class 3R.
- Radiation characteristic: Elliptical dot, point size 5mm@10m
- Optical power: 5mW (Class 3R laser); focus: Collimated
- Compact design: 16x90mm; Axle deviation: Up to 3.0°; DC-hollow plug 2.5mm
- For applications in e.g. laser spirit levels, laser marking systems, robotics, industry, handicrafts, Hobby and the show area.
- The power supply unit included in the delivery is connected separable with the laser module.
- Including a Picotronic power supply LFNT-3-C.
- This text is machine translated.
