Laserfuchs Plumb dot laser
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 24.36
3
4% = € 1.06
€ 23.30
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 24.36 / piece)
€ 24.36
plus VAT.
Highlights & Details
Point laser, red, 650nm, 0.4mW, laser class 1, Focus 5m, 3-4.5V, 15x67mm, battery-operated
- Laser category: 1
Technical specifications
- Material: Aluminium
- Optical power 0.4 mW
- Lifetime 3,000 h
- Operating temperature: -20°C to 40 °C
- Storage temperature: -40°C to 80 °C.
- Beam form: Point
- Class 1 laser
- Divergent: H - 1.0 mrad
- 5 m operating distance
- Acrylic lens
- Laser technology: Diode
- Focus: Fixed (5.0m)
- Potential of the enclosure: VDD(+)
- Outlet diameter of optical 3 mm
- Black enclosure
- Beam diameter 3 mm
- Laser category
1
- Operating voltage
4.5 V DC
- Operating current
15 mA
- Material
Aluminium
- Dim
(L x W) 67 mm x 15 mm
- Weight
27 g
- RoHS-compliant
Yes
- Length
67 mm
- Width
15 mm
- Product type
Plumb dot laser
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2987503 Laserfuchs Plumb dot laser
Information
Information 2987503 Laserfuchs Plumb dot laser
Conformity certificate
Conformity certificate 2987503 Laserfuchs Plumb dot laser
Description
Features
- Point laser, red, 650nm, 0.4mW, laser class 1, Focus 5m, 3-4.5V, 15x67mm, battery-operated

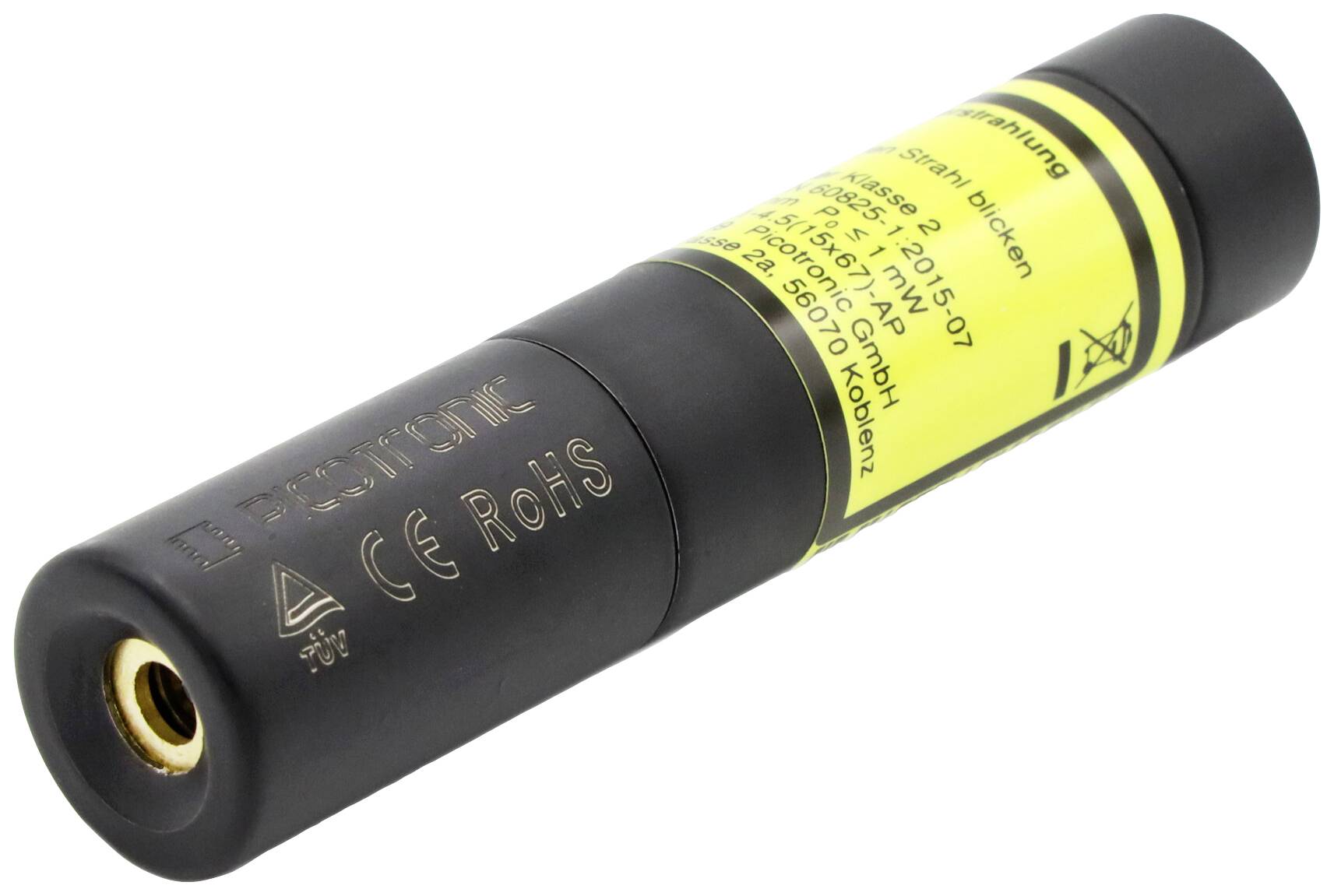

- The type LFD650-0.4-4.5(15x67) is a point laser for projection of a red laser point. The laser module emits 650nm wavelength radiation. The module contains 2 button cells (LR44) - included in the delivery. With this, a wireless operation is possible over several hours. The laser has a very compact design (15x67mm). The laser module LFD650-0.4-4.5(15x67) has a fixed pre-set optics and can be used excellently in light barriers, leveling systems or pointer applications. Typical usage areas are low-cost applications. This module falls into the laser class 1.
- Latch switch: Press the switch at the end of the laser module once and the laser is permanently switched on. Repeated operation switches off the laser again.
- Emission characteristics: Elliptical dot, dot size 4..6mm
- Optical power: 0.4mW (laser class 1); focus: 5m
- Compact design: 15x67mm; axis deviation up to 3.0°
- For presentations, for positioning, for light barriers and many other applications in industry, trade, hobby and the show sector.
- Two LR44 batteries are included in the delivery.
- This text is machine translated.
