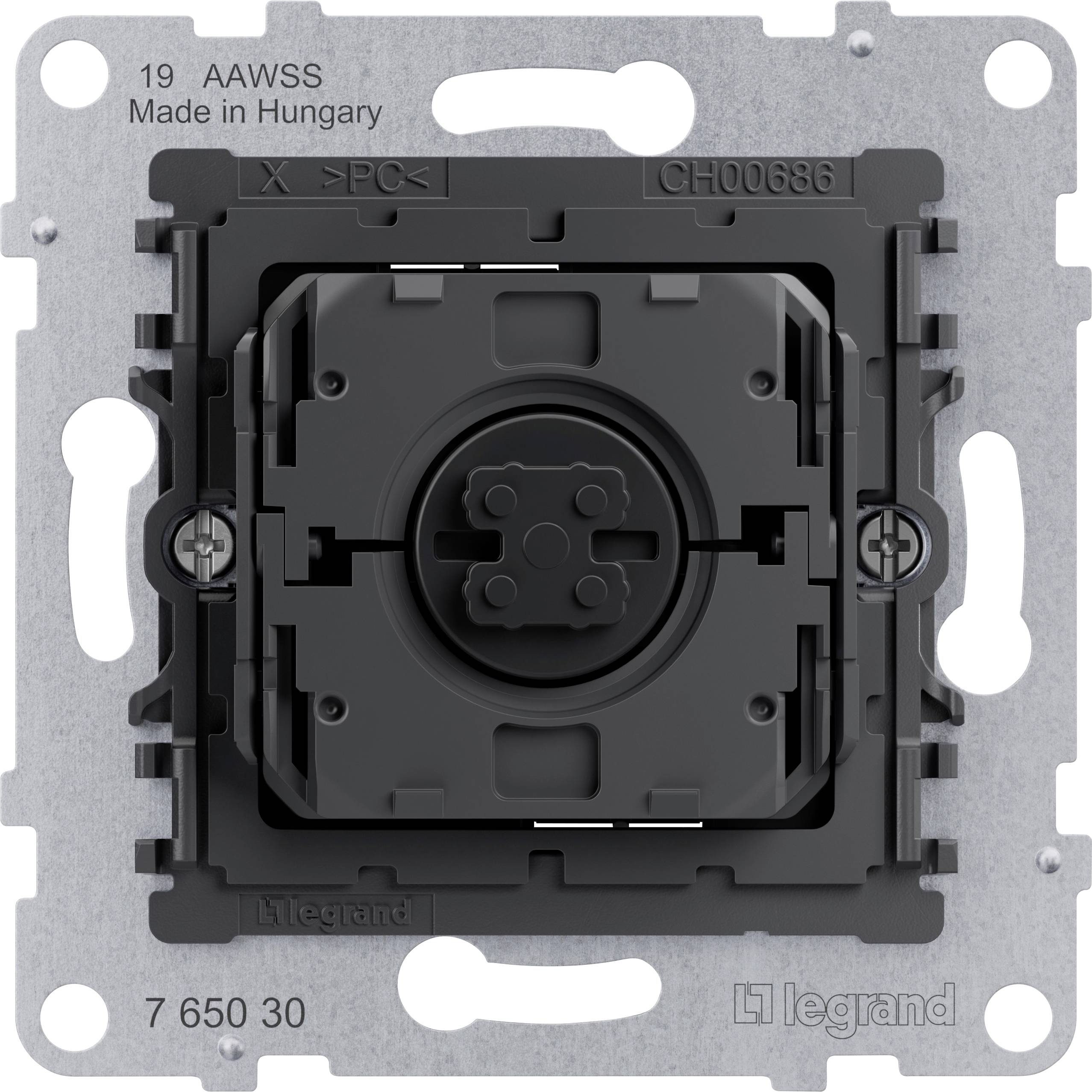

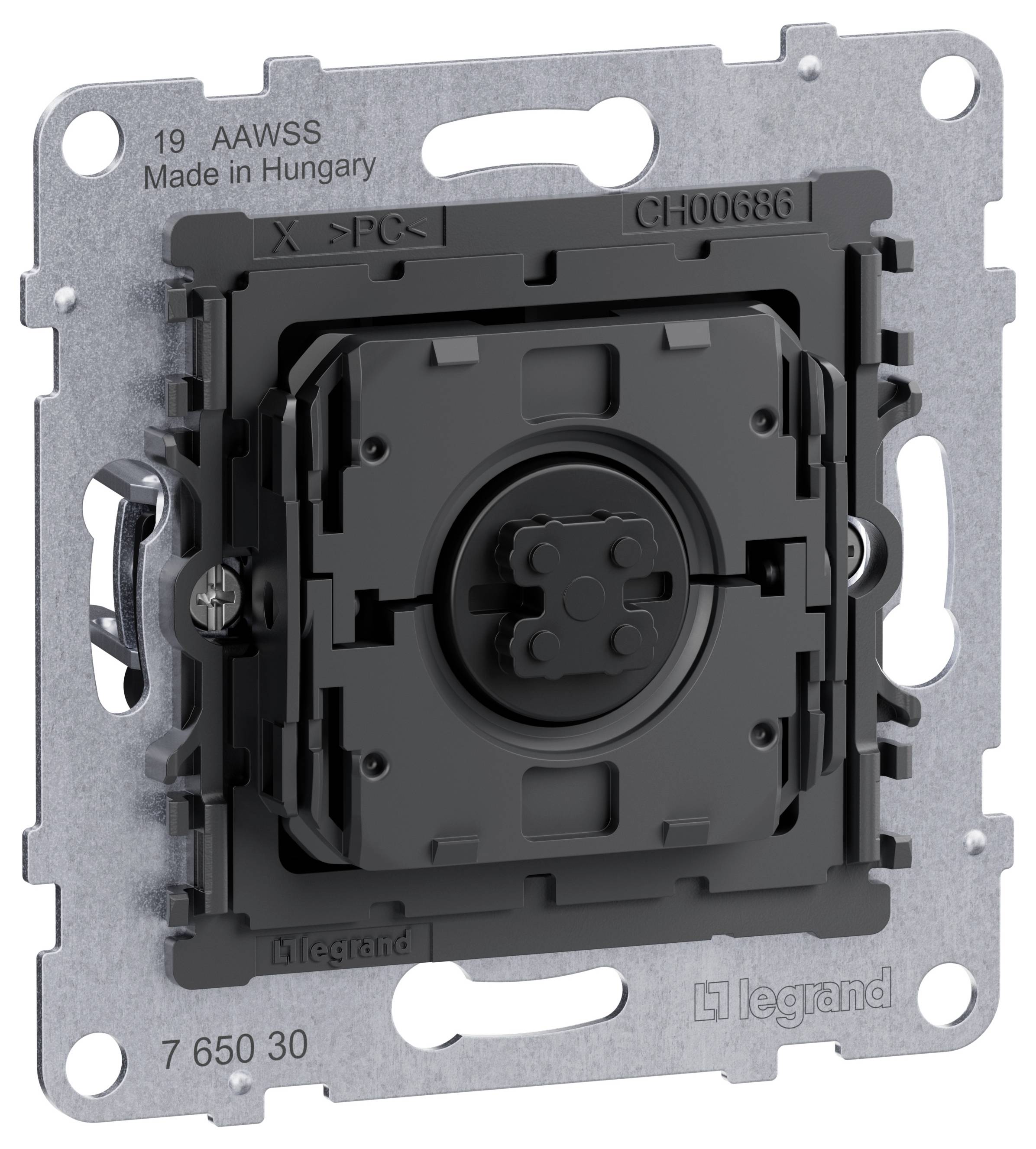

Legrand Insert Shutter switch Seano Black, Metal 765030 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 16.80
15
4% = € 0.75
€ 16.05
Volume discounts vary depending on the seller
You save € 0.00
Total (€ 16.80 / piece)
€
Highlights & Details
Legrand, SEANO roller shutter/blind switch insert
- 3-button system
- For direct connection to roller shutter motors
Technical specifications
- Type
Legrand, SEANO roller shutter/blind switch insert
- Switch type function
Shutter switch
- Product type
Shutter switch
- Switch type component
Insert
- Type series
Seano
- Factory colour
Black
Metal
- Nominal voltage
250 V
- Switching capacity
300 W
IP20
- Content
1 pc(s)
- Material
PVC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3322680 Legrand Insert Shutter switch Seano Black, Metal 765030 1 pc(s)
Description
SEANO use roller shutter/blind switches, 3-key system not illuminated, for the direct connection to roller shutter motors.
For complete with SEANO, SEANO+ and SEANO Natura covers.
This text is machine translated.
For complete with SEANO, SEANO+ and SEANO Natura covers.
This text is machine translated.
Features
- SHUTTER/blind button: The shutter and blind button insert is equipped with a 3-button system and enables direct connection to shutter motors for an easy and efficient operation.
- SIZE-optimized USE: The cube in use has been greatly reduced, giving you more wiring space. This gives you also more scope for balancing inaccurate hollow wall boxes.
- DESIGN: The switch concept from SEANO does not require a rocker backing plate. The all-in-one system consists of rocker arm, plaster balance spring and integrated counter plate. SEANO is designed for the integration of 55 x 55 third-party products (e.g. KNX).
- The 4-point spring system presses the frame against the wall, making the installation particularly easy. Stylish cover for negative wall effects and compensate for irregularities in the positioning of the installation.
- SAFETY DURING INSTALLATION: The insert is plastic insulated and thus prevents accidental contact with live parts. You can install the application easily and safely.
- DOUBLE-TOOTH spread claw: The spreader claw is fully covered in neutral position, WAS prevents damage to wire insulation, or to your hands. In addition, an improved grip and an increased tensile strength of the use is ensured.
- POSITIONING SYSTEM: Thanks to the clever positioning system of the SEANO inserts, these can be placed together exactly for multiple installations and offer enough flexibility to compensate for imprecise box distances in case of multiple combinations.
- MALERACOVER: All inserts are provided with a painting cover attached ex works to protect the product from dust, paint and damage - even after installation. This saves you the hassle of masking the inserts before painting.
- SUSTAINABILITY: The entire SEANO product portfolio uses only recycled plastics. All packaging is made of paper or cardboard, replacing plastic packaging and non-recyclable duroplasts.
- TECHNICAL DETAILS: Material quality: Thermoplastic, halogen-free, circuit diagram, switching symbol and stripping length visible at the application, IP20, 250 volt, 765030
Scope of delivery
- SEANO insert
