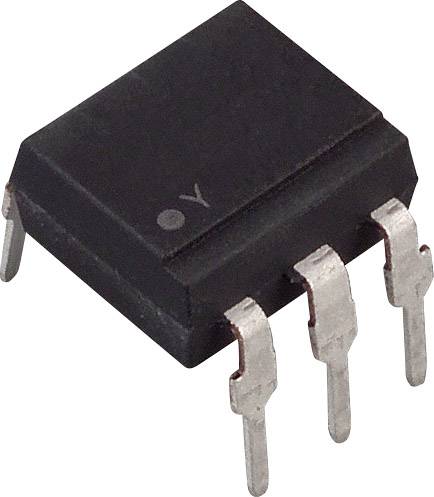

Image similar
Image similar
Lite-On Opto-isolator - LED controller CNY17-4 DIP 6 Transistor DC
EAN:
Part number:
Item no:
Product type
Opto-isolator - LED controller
Enclosure
DIP 6
Forward current I(F)
60 mA
Reverse voltage U(R)
6 V
Mounting type
Through-hole
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
15
-
€ 0.25
45
8% = € 0.02
€ 0.23
75
12% = € 0.03
€ 0.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 15
Total (€ 0.25 / piece)
€ 3.75
plus VAT.
Technical specifications
- Type
CNY17-4
- Product type
Opto-isolator - LED controller
- Enclosure
DIP 6
- Manufacturer
Lite-On
- Manuf. code
LTO
- UF typ.
1.45 V
- Forward current I(F)
60 mA
- Reverse voltage U(R)
6 V
- Channels
1
- Input type
DC
- Output type
Transistor
- Insulation voltage
5000 V RMS
- Operating temperature (min.)
+110 °C
- Operating temperature (max.)
-30 °C
- Mounting type
Through-hole
- Forward voltage U(F) max
1.65 V
- Forward voltage U(F)
1.45 V
- Slew rate
4 µs
- Fall time
3 µs
- Power output/channel
50 mA
- Power (max) P(TOT)
250 mW
- Voltage output (max.)
35 V
- Current transfer ratio (min.)
50 %
- Current transfer ratio (min.) - current reference
5 mA
- Current transfer ratio (max.)
600 %
- Collector-emitter saturation voltage (max.)
200 mV
- Collector current
150 mA
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1127388 Lite-On Opto-isolator - LED controller CNY17-4 DIP 6 Transistor DC
User & Safety Instructions
User & Safety Instructions 1127388 Lite-On Opto-isolator - LED controller CNY17-4 DIP 6 Transistor DC
