Name: LogiLink EVC0127 eMobility charging cable 5 m Spiral cable, incl. protective cap
Brand: LogiLink
SKU: 2888100
Availability: BackOrder

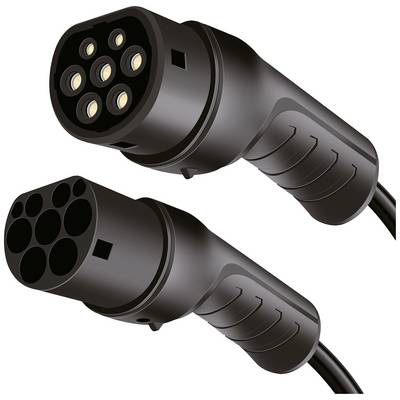

Two black electric vehicle charging plugs, one with seven and the other with eight contacts, shown side by side.

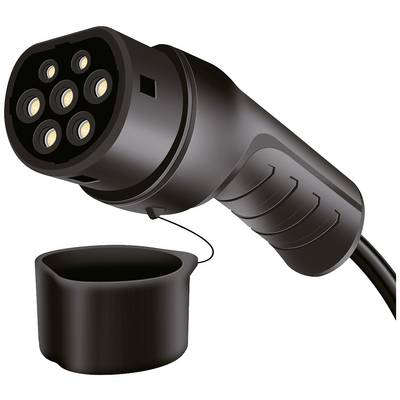

Black Type-2 electric vehicle charging plug with five round contact points and a handle, connected to a removable protective cover.

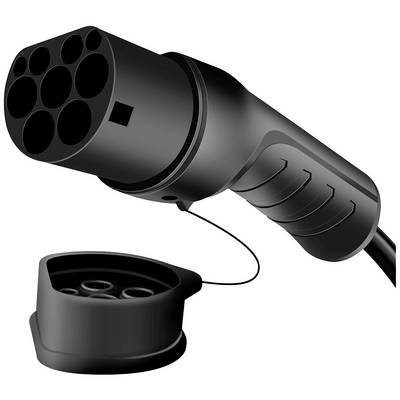

Plug of an electric vehicle, with multiple connection openings, lies next to its protective cap.

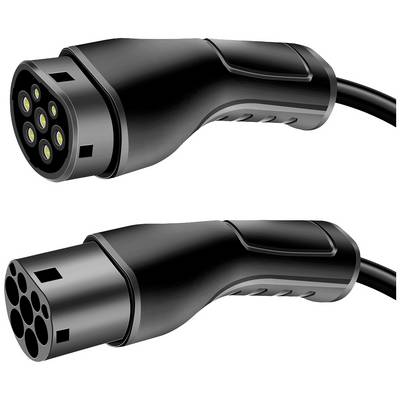

Two black, seven-seater plugs for electric vehicles, shown side by side.

A black, tubular camera with a cable, suitable for surveillance or recording in confined spaces.

A black cylinder with a cable, possibly a camera or a sensor, focusing at the front with a small lens.

Black, spiral-shaped cable, tightly coiled, demonstrates elastic and stretchable design.

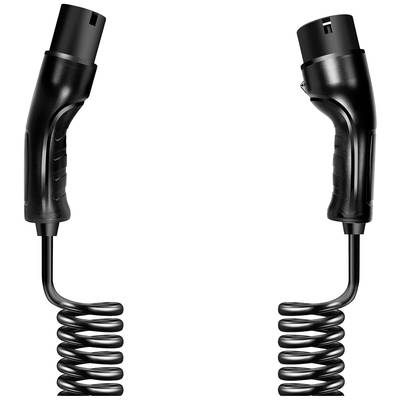

Two black, twisted cables with identical plugs at both ends, symmetrically arranged.

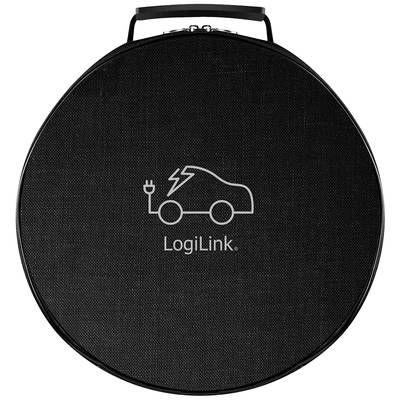

Round black bag with a stylised electric car and charging plug, accompanied by the text 'LogiLink'.

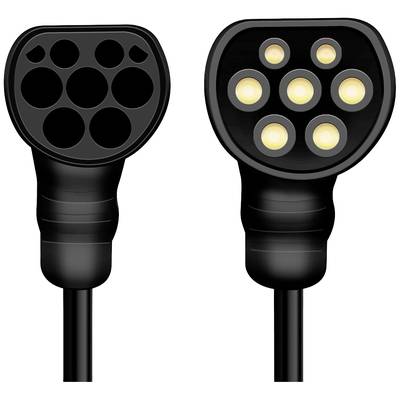

Two charging cables for electric vehicles: On the left, Type 1 with five circular connectors, on the right, Type 2 with seven circular connectors.

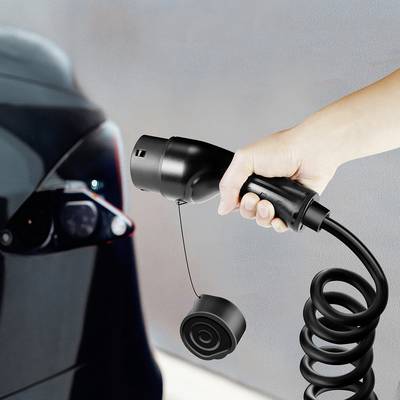

A hand is holding a spiral-shaped charging plug, ready to be plugged into an electric car.

1/11

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu 19 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 164.99 / piece)

€ 164.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

E-Car charging cable, type 2, 3-phase, spiral, 32 A, 22 kW, with bag, 5 m

Connection 1: Type 2 charging plug (plug)
Connection 2: Type 2 charging plug (socket)
Suitable for Tesla, Audi, Mercedes-Benz, BMW, VW, Porsche, Renault, Citroen, Peugeot, Ford, Opel, Chrysler, General Motors and more
Charging mode according to Mode 3 (IEC 61851)
Plug device according to IEC 62196-2

Technical specifications

Cable type H07BQ 5x6 mm² + 0.75 mm², spiral version
Cable / wiring standard EN 50620:2017/A1:2019
Charging power up to 22 kW, 3-phase
Working temperature: -30 °C to +50 °C
Colour: Blue

Product type: eMobility charging cable

Type A: Type 2 (IEC 62196-2) socket

Type B: Type 2 (IEC 62196-2) plug

No. of phases: 3-phase

Charging mode: Mode 3

Cable length: 5 m

Cable features: Spiral cable
incl. protective cap

Nominal voltage: 480 V

: IP65
IP54

Signal flow direction: Bidirectional (bi)

Min. temperature: -30 °C

Max. temperature: 50 °C

Charging capacity: 22 kW

Charging current: 32 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2888100 LogiLink EVC0127 eMobility charging cable 5 m Spiral cable, incl. protective cap

User & Safety Instructions

User & Safety Instructions 2888100 LogiLink EVC0127 eMobility charging cable 5 m Spiral cable, incl. protective cap

Description

This LogiLink certified Type 2 spiral charger cable allows you to easily connect any vehicle with a type 2 plug to public charging stations or to wall boxes with a charger socket. Robust quality, tested safety and a carry bag provide for a long life and protection against dust and dirt. Suitable for battery-electric vehicles (BEV) and plug-in hybrids (PHEV) from Tesla, Audi, Mercedes-Benz, BMW, VW, Porsche, Renault, Citroen, Peugeot, Ford, Opel, Chrysler, General Motors and others that have a CCS or Type 2 charging port.

This text is machine translated.

Features

32 A charging current at a nominal voltage of 480 V AC (Max. Testing voltage 42 A
Housing protection IP65 - plugged in, IP54 - not plugged in
Overrun protection
Plastic housing
Packaging: Brown box.

Scope of delivery

Incl. carrying bag.

Description

Features

32 A charging current at a nominal voltage of 480 V AC (Max. Testing voltage 42 A
Housing protection IP65 - plugged in, IP54 - not plugged in
Overrun protection
Plastic housing
Packaging: Brown box.
